Description

Product Description

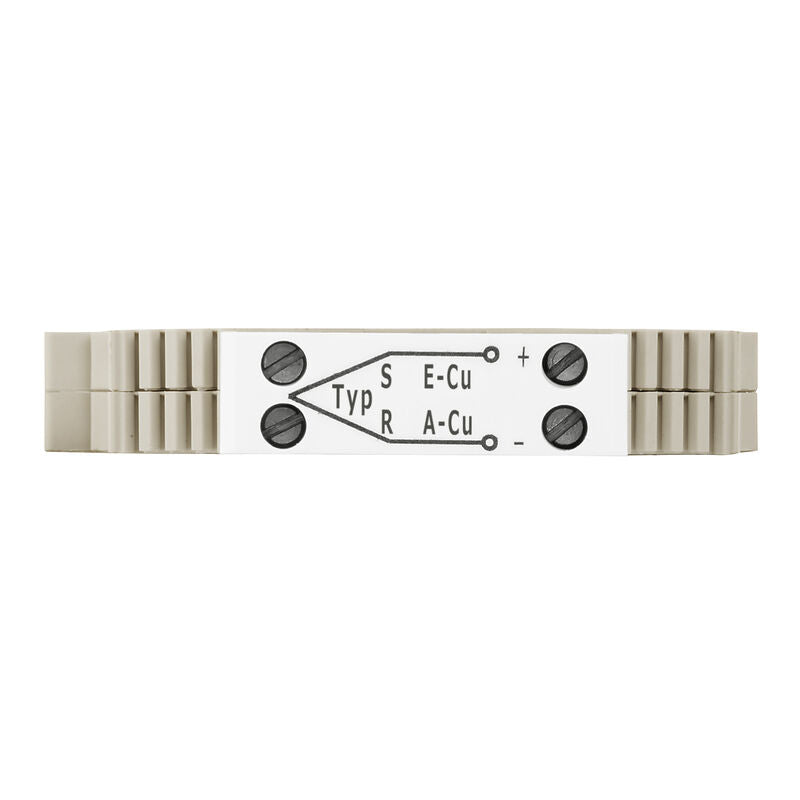

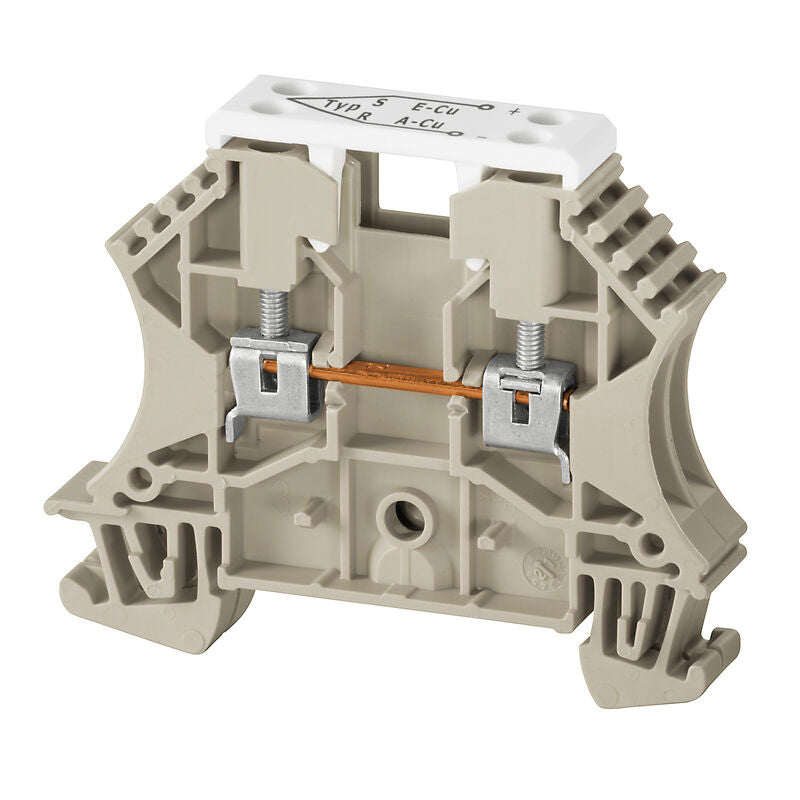

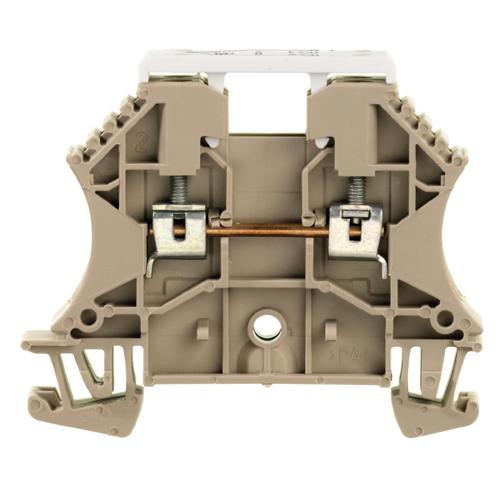

The Weidmuller 1024400000 WDU 2.5/TC TYP SR is a thermocouple terminal with screw connections. This dark beige terminal block is designed for feed-through connections and accepts wire gauges from 12-26 AWG. It is suitable for temperature measuring circuits, chemical processes and controllers.

  • Screw connection
  • Wire connection cross section AWG, max: AWG 12
  • Material Flammability Rating: UL94 V-0

Product Highlights

This thermocouple terminal block is designed for the transmission of very small voltages in temperature measuring circuits.

Product Information

Standard Information

  • Brand: Weidmuller
  • Manufacturer Part Number: 1024400000
  • Country of Origin: China
Technical Specifications
Version
Thermocouple terminal, Screw connection, dark beige, 2.5 mm ², 55 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid
Order No.
1024400000
Type
Feed Through
GTIN (EAN)
4008190116675
Depth
50 mm
Depth (inches)
1.968 inch
Depth including DIN rail
50.5 mm
Height
60 mm
Height (inches)
2.362 inch
Width
10.2 mm
Width (inches)
0.402 inch
Net weight
16.98 g
Storage temperature
-25 °C...55 °C
Ambient temperature
-60 °C 85 °C
Continuous operating temp., min.
-60 °C
Continuous operating temp., max.
130 °C
Basic material
Wemid
Colour
dark beige
UL 94 flammability rating
V-0
Certificate No. (ATEX)
DEMKO14ATEX1338U
Certificate No. (IECEX)
IECEXULD14.0005U
Max. voltage (ATEX)
55 V
Current (ATEX)
8 A
Wire cross section max. (ATEX)
2.5 mm ²
Max. voltage (IECEX)
55 V
Current (IECEX)
8 A
Wire cross section max. (IECEX)
2.5 mm ²
Marking EN 60079-7
Ex eb II C Gb
Ex 2014/34/EU label
II 2 G D
Thermocouple
Thermocouple
End cover plate required
Yes
Number of potentials
1
Number of levels
1
Number of clamping points per level
2
Number of potentials per tier
1
Levels cross-connected internally
No
PE connection
No
Mounting rail
TS 35
N-function
No
PE function
No
PEN function
No
Explosion-tested version
No
Number of similar terminals
1
Open sides
right
Type of mounting
Snap-on
Blade size
0.6 x 3.5 mm
Clamping range, max.
2.5 mm ²
Clamping range, min.
0.13 mm ²
Clamping screw
M 2.5
Connection cross-section, stranded, max.
2.5 mm ²
Connection cross-section, stranded, min.
1.5 mm ²
Connection direction
on side
Gauge to IEC 60947-1
A2
Number of connections
2
Stripping length
10 mm
Tightening torque, max.
0.6 Nm
Tightening torque, min.
0.4 Nm
Torque level with DMS electric screwdriver
1
Twin wire-end ferrules, max.
1.5 mm ²
Twin wire-end ferrules, min.
0.5 mm ²
Type of connection
Screw connection
Type of connection 2
Screw connection
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section, finely stranded, max.
2.5 mm ²
Wire connection cross section, finely stranded, min.
0.5 mm ²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
2.5 mm ²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0.5 mm ²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
2.5 mm ²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0.5 mm ²
Wire connection cross-section, solid core, max.
2.5 mm ²
Wire connection cross-section, solid core, min.
0.5 mm ²
Standards
IEC 60584, IEC 60947-7-1
Rated cross-section
2.5 mm ²
Rated voltage
55 V
Volume resistance according to IEC 60947-7-x
1.33 mΩ
Power loss in accordance with IEC 60947-7-x
0.77 W
Pollution severity
3
Certificate No. (UR)
E60693
Voltage size C (UR)
50 V
Wire cross section max. (UR)
12 AWG
Wire cross section min. (UR)
30 AWG
ETIM 8.0
EC000904
ETIM 9.0
EC000904
ETIM 10.0
EC000904
ECLASS 14.0
27-25-01-15
ECLASS 15.0
27-25-01-15
Category
Connectors, Interconnects
Terminal Blocks
Din Rail, Channel
Termination Style
Screw
Manufacturer
Weidmüller
Wire Gauge or Range - AWG
12-26 AWG
Series
W
Wire Gauge or Range - mm²
0.5-2.5mm²
Packaging
Bulk
Features
Thermocouple
Part Status
Active
Color
Beige
Material - Insulation
Thermoplastic, Wemid
Number of Positions
2
Material Flammability Rating
UL94 V-0
Terminal - Width
10.2mm
RoHS Status
ROHS3 Compliant
ECCN
EAR99
Moisture Sensitivity Level (MSL)
Not Applicable
HTSUS
8536.69.8000
REACH Status
REACH Unaffected
Terminal Block Width
10.2 mm
Terminal Block Connection Method
Screw Connection
Terminal Block Component Color
Dark Beige
Component
Thermocouple Terminal
Terminal Block Voltage Rating
55 Volt
MFR #
1024400000
