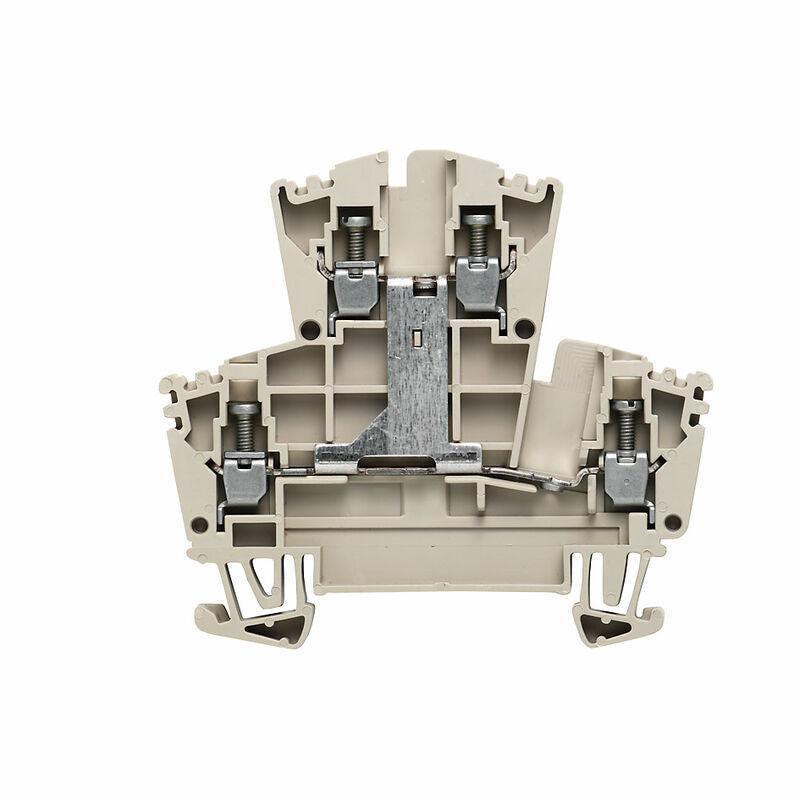

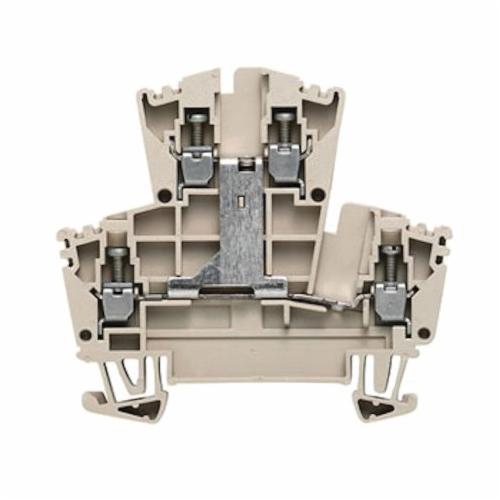

The Weidmuller 1022300000 WDK 2.5V is a multi-tier modular terminal block with screw connections. This terminal block is designed for the transmission of power, signals, and data in industrial environments. It features 4 terminals and on side connection.

  • Screw connection
  • Wire size: 30 to 12 AWG
  • Snap-on mount

Product Highlights

The Weidmuller WDK 2.5V terminal block is ideal for industrial environments requiring secure and reliable connections.

Product Information

Standard Information

  • Brand: Weidmuller
  • Manufacturer Part Number: 1022300000
  • Country of Origin: CZ
Technical Specifications
Version
Screw connection
Order No.
1022300000
Type
Feed Through
GTIN (EAN)
4008190082031
Depth
62.5 mm
Depth (inches)
2.461 inch
Depth including DIN rail
63.5 mm
Height
69.5 mm
Height (inches)
2.736 inch
Width
5.1 mm
Width (inches)
0.201 inch
Storage temperature
-25 0C...55 0C
Ambient temperature
-60 0C 85 0C
Continuous operating temp., min.
-60 0C
Continuous operating temp., max.
130 0C
RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Basic material
Wemid
UL 94 flammability rating
V-0
Certificate No. (ATEX)
DEMKO15ATEX1346U
Certificate No. (IECEX)
IECEXULD15.0003U
Max. voltage (ATEX)
275 V
Current (ATEX)
24 A
Wire cross section max. (ATEX)
4 mm
Max. voltage (IECEX)
275 V
Current (IECEX)
24 A
Wire cross section max. (IECEX)
4 mm
Marking EN 60079-7
Ex eb II C Gb
Ex 2014/34/EU label
II 2 G D
Vertically cross-connected
for screwable cross-connection
One end without connector
Yes
End cover plate required
Yes
Number of potentials
1
Number of levels
2
Number of clamping points per level
2
Number of potentials per tier
1
Levels cross-connected internally
Yes
PE connection
No
Mounting rail
TS 35
N-function
No
PE function
No
PEN function
No
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.
1.5 mm
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.
0.5 mm
Wire connection cross section, finely stranded, two clampable wires, min.
0.5 mm
Wire cross-section, finely stranded, two clampable wires, max.
1.5 mm
Explosion-tested version
Yes
Number of similar terminals
1
Open sides
right
Mounting Type
Snap-on
Connection type, additional connection
Screw connection
Blade size
0.6 x 3.5 mm
Clamping range, max.
4 mm
Clamping range, min.
0.05 mm
Clamping screw
M 2.5
Connection cross-section, finely stranded, min.
0.05 mm
Connection cross-section, stranded, max.
4 mm
Connection cross-section, stranded, min.
0.05 mm
Connection direction
on side
Gauge to IEC 60947-1
A3
Number of connections
4
Stripping Length
10 mm
Tightening torque, max.
0.6 Nm
Tightening torque, min.
0.4 Nm
Torque level with DMS electric screwdriver
1
Type of connection
Screw connection
Type of connection 2
Screw connection
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 30
Wire connection cross section, finely stranded, max.
4 mm
Wire connection cross section, finely stranded, min.
0.05 mm
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
2.5 mm
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0.05 mm
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
2.5 mm
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0.05 mm
Wire connection cross-section, solid core, max.
4 mm
Wire connection cross-section, solid core, min.
0.05 mm
Certificate No. (CSA)
12400-135
Current size C (CSA)
10 A
Voltage size C (CSA)
300 V
Wire cross section max. (CSA)
12 AWG
Wire cross section min. (CSA)
26 AWG
Standards
IEC 60947-7-1
Rated cross-section
2.5 mm
Rated voltage
400 V
Rated DC voltage
400 V
Nominal current
24 A
Current at maximum wires
32 A
Volume resistance according to IEC 60947-7-x
1.33 m
Rated impulse withstand voltage
6 kV
Power loss in accordance with IEC 60947-7-x
0.77 W
Pollution severity
3
Certificate No. (UR)
E60693
Conductor size Factory wiring max. (UR)
12 AWG
Conductor size Factory wiring min. (UR)
30 AWG
Conductor size Field wiring max. (UR)
12 AWG
Conductor size Field wiring min. (UR)
22 AWG
Current size B (UR)
20 A
Current size C (UR)
20 A
Voltage size B (UR)
600 V
Voltage size C (UR)
600 V
ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-02
ECLASS 15.0
27-25-01-02
Current - IEC
24 A
Voltage - IEC
400V
Series
W
Current - UL
20 A
Part Status
Active
Wire Gauge or Range - AWG
12-30 AWG
Wire Gauge or Range - mm
0.5-4mm
Material - Insulation
Thermoplastic, Wemid
Terminal - Width
5.1mm
Material Flammability Rating
UL94 V-0
Termination Style
Screw
Voltage Rating
400 VAC
Amperage Rating
24 A
Temperature Rating
-50 to 120 deg C
Terminal Size
M2.5
Wire Size
30 to 12 AWG
