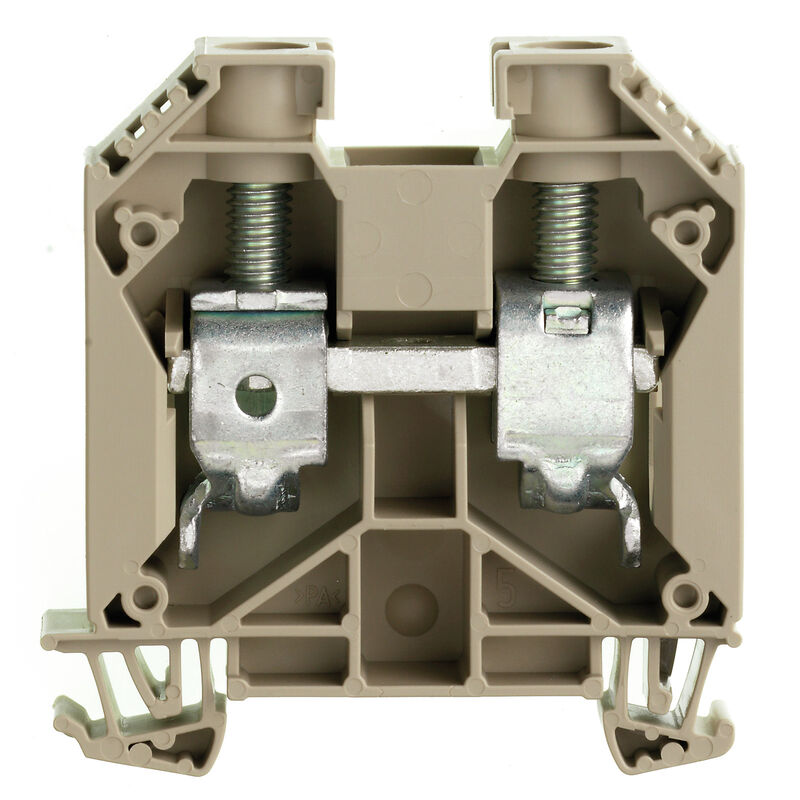

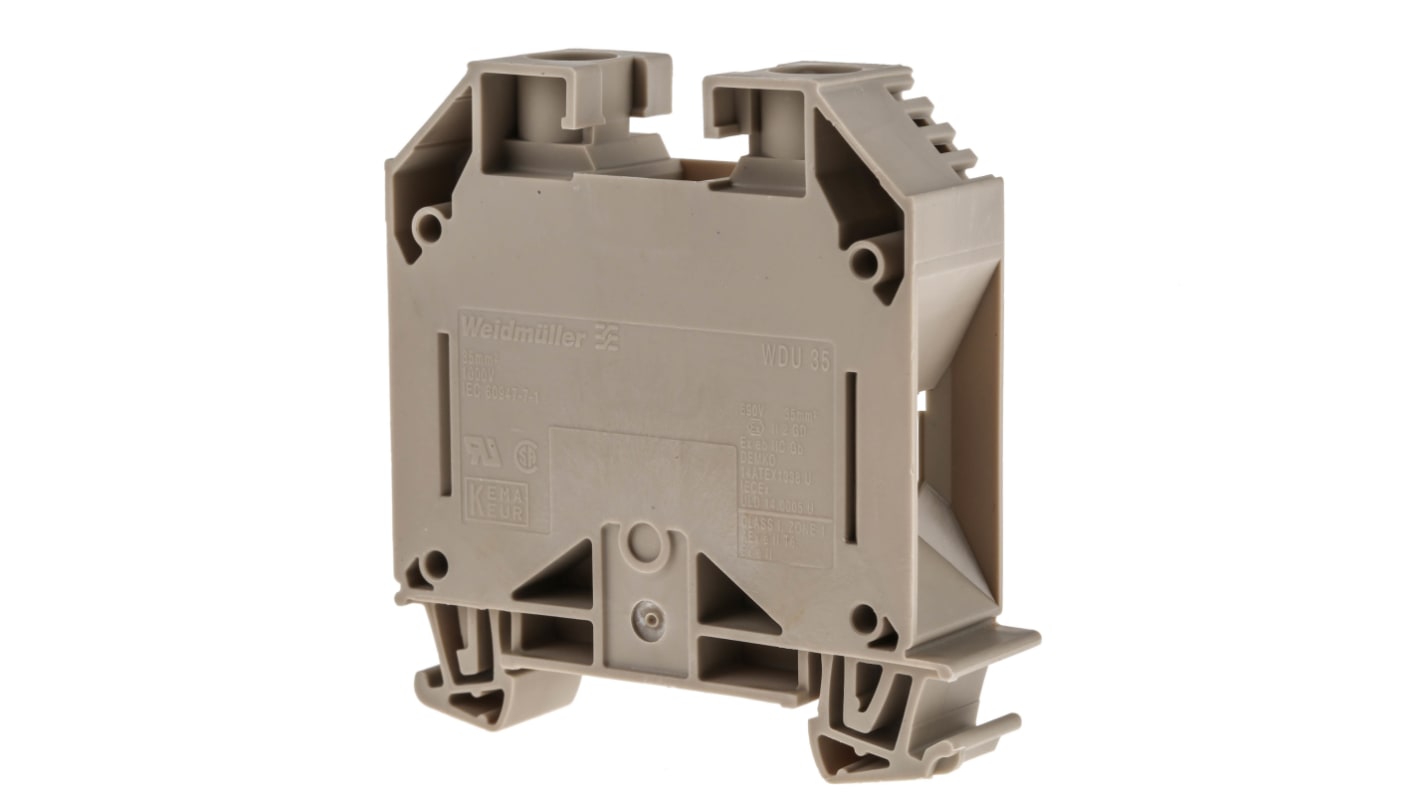

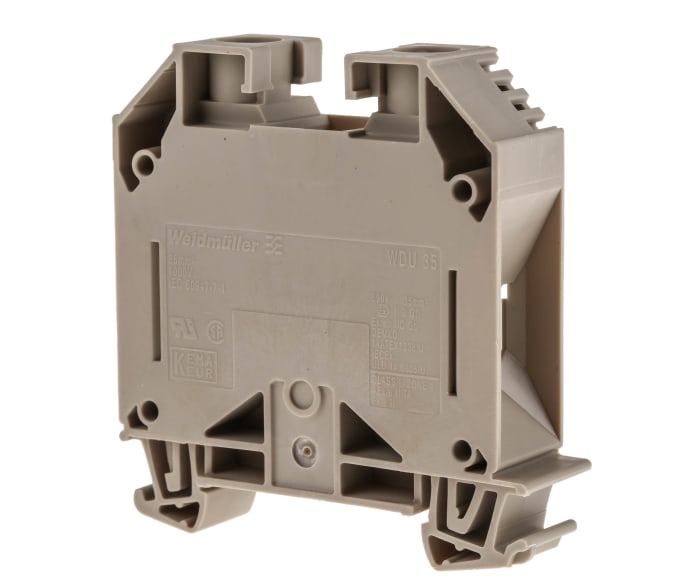

The Weidmuller 1020500000 WDU 35 is a feed-through terminal block with screw connections. This dark beige terminal block supports 35 mm² and is rated for 125 A at 1000 V. It features two connections for secure and efficient wiring in industrial applications. It allows you to connect two conductors of the same cross section into the same clamping point without difficulty.

  • Screw connection for secure wiring
  • Supports conductors up to 35 mm²
  • Rated for 125 A and 1000 V

Product Highlights

The Weidmuller WDU 35 feed-through terminal block ensures reliable connections in demanding industrial environments with its robust design and high electrical ratings.

Product Information

Standard Information

  • Brand: Weidmuller
  • Manufacturer Part Number: 1020500000
  • Country of Origin: Taiwan
Technical Specifications
Order No.
1020500000
Type
WDU 35
GTIN (EAN)
4008190077013
Depth
62.5 mm
Depth (inches)
2.461 inch
Depth including DIN rail
63 mm
Height
60 mm
Height (inches)
2.362 inch
Width
16 mm
Width (inches)
0.63 inch
Basic material
Wemid
Colour
dark beige
UL 94 flammability rating
V-0
Certificate No. (ATEX)
DEMKO14ATEX1338U
Certificate No. (IECEX)
IECEXULD14.0005U
Max. voltage (ATEX)
690 V
Current (ATEX)
115 A
Wire cross section max. (ATEX)
35 mm
Max. voltage (IECEX)
690 V
Current (IECEX)
115 A
Wire cross section max. (IECEX)
35 mm
Marking EN 60079-7
Ex eb II C Gb
Ex 2014/34/EU label
II 2 G D
Version
Screw connection
for screwable cross-connection
One end without connector
End cover plate required
Yes
Number of potentials
1
Number of levels
1
Number of clamping points per level
2
Number of potentials per tier
1
Levels cross-connected internally
No
PE connection
No
Mounting rail
TS 35
N-function
No
PE function
No
PEN function
Yes
Cross-section for connected wire, stranded, two clampable wires, max.
16 mm
Cross-section for connected wire, stranded, two clampable wires, min.
16 mm
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.
16 mm
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.
2.5 mm
Wire connection cross section, finely stranded, two clampable wires, min.
2.5 mm
Wire cross-section, finely stranded, two clampable wires, max.
16 mm
Explosion-tested version
Yes
Number of similar terminals
1
Open sides
right
Type of mounting
Snap-on
Connection type, additional connection
Screw / solder connection
Blade size
6.5 x 1.2 mm
Clamping range, max.
50 mm
Clamping range, min.
2.5 mm
Clamping screw
M 6
Connection cross-section, finely stranded, min.
2.5 mm
Connection cross-section, stranded, max.
50 mm
Connection cross-section, stranded, min.
2.5 mm
Connection direction
on side
Gauge to IEC 60947-1
B9
Number of connections
2
Stripping length
18 mm
Tightening torque, max.
5 Nm
Tightening torque, min.
4 Nm
Twin wire-end ferrules, max.
16 mm
Twin wire-end ferrules, min.
1.5 mm
Type of connection
Screw connection
Wire connection cross section AWG, max.
AWG 2
Wire connection cross section AWG, min.
AWG 12
Wire connection cross section, finely stranded, max.
35 mm
Wire connection cross section, finely stranded, min.
2.5 mm
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
35 mm
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
2.5 mm
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
35 mm
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
2.5 mm
Wire connection cross-section, solid core, max.
16 mm
Wire connection cross-section, solid core, min.
2.5 mm
Standards
IEC 60947-7-1
Rated cross-section
35 mm
Rated voltage
1,000 V
Rated DC voltage
1,000 V
Nominal current
125 A
Current at maximum wires
150 A
Volume resistance according to IEC 60947-7-x
0.26 m
Rated impulse withstand voltage
8 kV
Power loss in accordance with IEC 60947-7-x
4 W
Pollution severity
3
Surge voltage category
III
Conductor size Factory wiring max. (UR)
0 AWG
Conductor size Factory wiring min. (UR)
12 AWG
Conductor size Field wiring max. (UR)
0 AWG
Conductor size Field wiring min. (UR)
12 AWG
Current size C (UR)
150 A
Voltage size C (UR)
1000 V
Brand
Weidm ller
Product Type
Feed Through Terminal Block
Number of Levels
1
Series
WDU
Voltage
1kV
Minimum Wire Size AWG
12AWG
Cable CSA
35mm
Maximum Wire Size AWG
2AWG
Terminal Block Current
125A
Minimum Operating Temperature
-50 C
Termination Type
Screw
Maximum Operating Temperature
120 C
Hazardous Area Certification
ATEX
