Weidmuller 1020400000 WDU 16

Brand: Weidmuller
SKU: 1020400000
Availability: In Stock

Ships same day if ordered by 12 pm
$14.99
$14.99
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

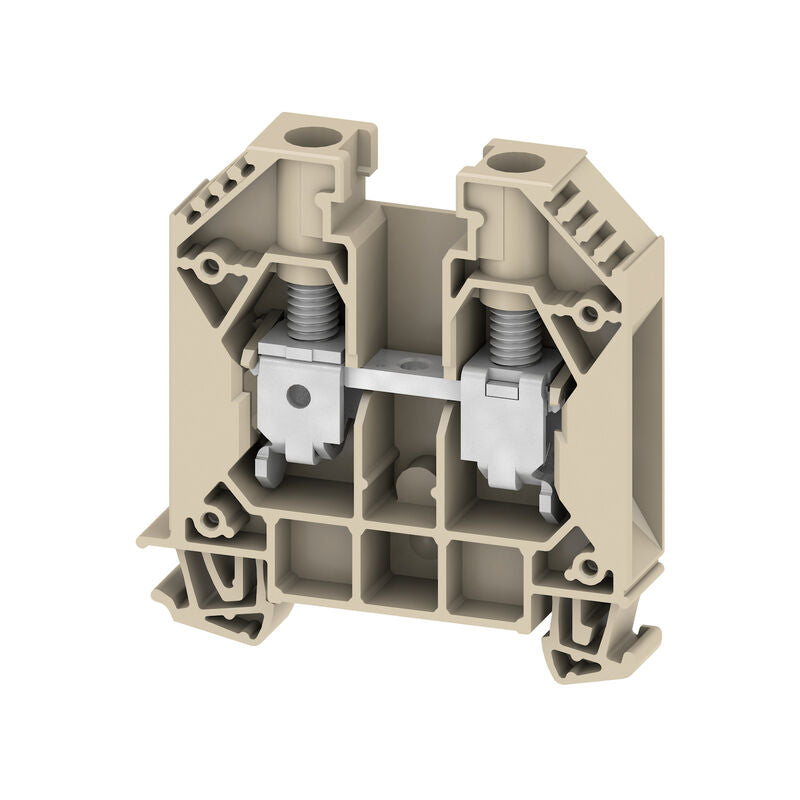

The Weidmuller 1020400000 WDU 16 is a feed-through terminal block with screw connections. This dark beige terminal block supports 16 mm² wires, 76 A, and 1000 V, featuring two connections. It is designed for DIN rail mounting and accommodates wire sizes from 6-14 AWG. Suitable for various industrial applications requiring secure and reliable connections.

  • Screw connection
  • Supports 16 mm² wires
  • Rated for 1000V and 76A

Product Highlights

Feed-through terminal block with screw connection, suitable for industrial applications.

Product Information

Standard Information

  • Brand: Weidmuller
  • Manufacturer Part Number: 1020400000
Technical Specifications
Order No.
1020400000
Type
WDU 16
GTIN (EAN)
4008190127794
Depth
62.5 mm
Depth (inches)
2.461 inch
Depth including DIN rail
63 mm
Height
60 mm
Height (inches)
2.362 inch
Width
11.9 mm
Width (inches)
0.469 inch
Net weight
29.46 g
Storage temperature
-25 °C...55 °C
Ambient temperature
-60 °C…85 °C
Continuous operating temp., min.
-60 °C
Continuous operating temp., max.
130 °C
RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Basic material
Wemid
Colour
dark beige
UL 94 flammability rating
V-0
Certificate No. (ATEX)
DEMKO14ATEX1338U
Certificate No. (IECEX)
IECEXULD14.0005U
Max. voltage (ATEX)
690 V
Current (ATEX)
76 A
Wire cross section max. (ATEX)
16 mm²
Max. voltage (IECEX)
690 V
Current (IECEX)
76 A
Wire cross section max. (IECEX)
16 mm²
Marking EN 60079-7
Ex eb II C Gb
Ex 2014/34/EU label
II 2 G D
Version
Screw connection
for screwable cross-connection
One end without connector
End cover plate required
Yes
Number of potentials
1
Number of levels
1
Number of clamping points per level
2
Number of potentials per tier
1
Levels cross-connected internally
No
PE connection
No
Mounting rail
TS 35
N-function
No
PE function
No
PEN function
Yes
Cross-section for connected wire, solid, two clampable wires, max.
6 mm²
Cross-section for connected wire, solid, two clampable wires, min.
1.5 mm²
Cross-section for connected wire, stranded, two clampable wires, max.
6 mm²
Cross-section for connected wire, stranded, two clampable wires, min.
1.5 mm²
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.
6 mm²
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.
1.5 mm²
Wire connection cross section, finely stranded, two clampable wires, min.
1.5 mm²
Wire cross-section, finely stranded, two clampable wires, max.
6 mm²
Explosion-tested version
Yes
Number of similar terminals
1
Open sides
right
Type of mounting
Snap-on
Connection type, additional connection
Screw connection
Blade size
1.0 x 5.5 mm
Clamping range, max.
25 mm²
Clamping range, min.
0.82 mm²
Clamping screw
M 5
Connection cross-section, finely stranded, min.
0.82 mm²
Connection cross-section, stranded, max.
25 mm²
Connection cross-section, stranded, min.
0.82 mm²
Connection direction
on side
Gauge to IEC 60947-1
B7
Number of connections
2
Stripping length
16 mm
Tightening torque, max.
4 Nm
Tightening torque, min.
3 Nm
Twin wire-end ferrules, max.
10 mm²
Twin wire-end ferrules, min.
1.5 mm²
Type of connection
Screw connection
Wire connection cross section AWG, max.
AWG 4
Wire connection cross section AWG, min.
AWG 18
Wire connection cross section, finely stranded, max.
25 mm²
Wire connection cross section, finely stranded, min.
0.82 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
16 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0.82 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
16 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0.82 mm²
Wire connection cross-section, solid core, max.
16 mm²
Wire connection cross-section, solid core, min.
0.82 mm²
Certificate No. (CSA)
200039-1057876
Current size C (CSA)
85 A
Voltage size C (CSA)
600 V
Wire cross section max. (CSA)
6 AWG
Wire cross section min. (CSA)
18 AWG
Standards
IEC 60947-7-1
Rated cross-section
16 mm²
Rated voltage
1,000 V
Rated DC voltage
1,000 V
Nominal current
76 A
Current at maximum wires
101 A
Volume resistance according to IEC 60947-7-x
0.42 mΩ
Rated impulse withstand voltage
8 kV
Power loss in accordance with IEC 60947-7-x
2.43 W
Pollution severity
3
Certificate No. (UR)
E60693
Conductor size Factory wiring max. (UR)
4 AWG
Conductor size Factory wiring min. (UR)
18 AWG
Conductor size Field wiring max. (UR)
4 AWG
Conductor size Field wiring min. (UR)
18 AWG
Current size C (UR)
85 A
Voltage size C (UR)
600 V
ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-01
ECLASS 15.0
27-25-01-01
Material - Insulation
Thermoplastic, Wemid
Material Flammability Rating
UL94 V-0
Termination Style
Screw
Terminal - Width
11.9mm
Wire Gauge or Range - AWG
6-14 AWG
Wire Gauge or Range - mm²
1.5-16mm²
Voltage - IEC
1000V
Current - IEC
76 A
Voltage - UL
600V
Current - UL
85 A
