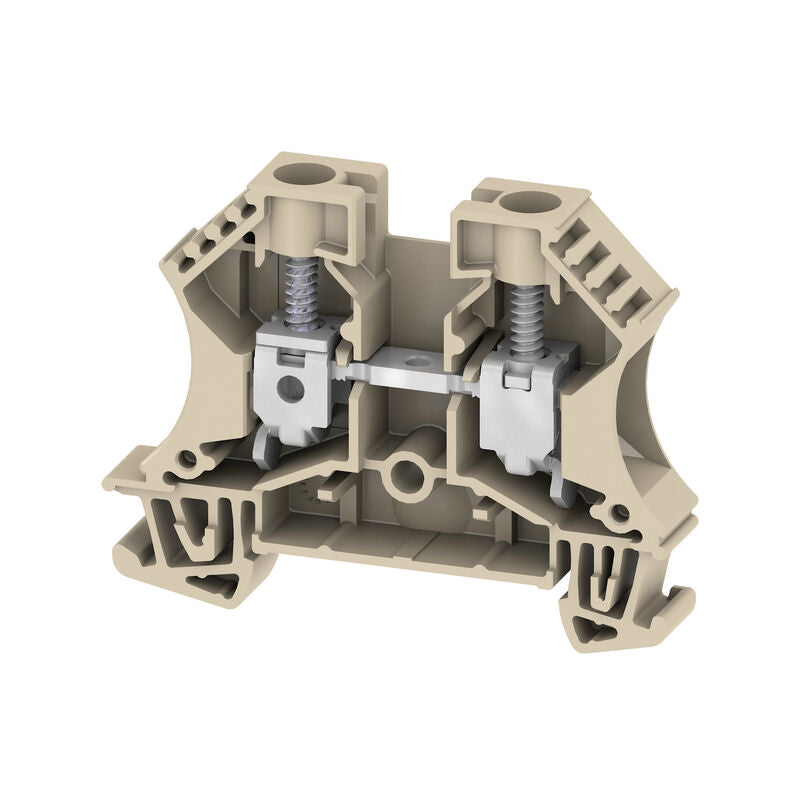

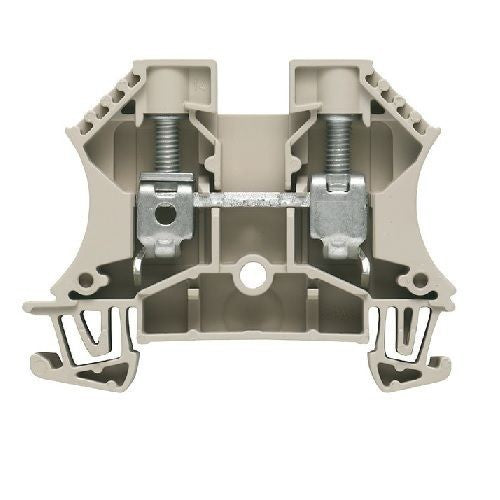

Weidmuller 1020300000 WDU 10 Feed-Through Terminal Block 57 A 2 Positions

Product Description

The Weidmuller 1020300000 is a feed-through terminal block designed for DIN rail mounting. It utilizes a screw connection and supports 57 A. This terminal block features 2 positions and accommodates wire sizes from 6 AWG to 18 AWG. The terminal block is constructed from Wemid material.

• DIN Rail Mount
• Screw Connection
• Wire Gauge: 6 AWG to 18 AWG

Product Highlights

The Weidmuller 1020300000 feed-through terminal block ensures secure and reliable connections for industrial applications, offering a robust solution for power distribution and control circuits.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 1020300000
• Country of Origin: Germany

Technical Specifications

• Manufacturer: Weidmuller
• Terminal Type: Feed-Through
• Material: Wemid
• Voltage Rating: 1000 V
• Series: W Series
• Amperage Rating: 57 A
• Connection Type: Screw
• Brand: Weidmuller
• Depth (inches): 1.831 inch
• Height (inches): 2.362 inch
• Width (inches): 0.39 inch
• Basic material: Wemid
• Colour: dark beige
• UL 94 flammability rating: V-0
• Max. voltage (ATEX): 690 V
• Current (ATEX): 57 A
• Max. voltage (IECEX): 690 V
• Current (IECEX): 57 A
• Version: Screw connection
• End cover plate required: Yes
• Number of potentials: 1
• Number of levels: 1
• Number of clamping points per level: 2
• Number of potentials per tier: 1
• Levels cross-connected internally: No
• PE connection: No
• Mounting rail: TS 35
• N-function: No
• PE function: No
• PEN function: No
• Explosion-tested version: Yes
• Number of similar terminals: 1
• Open sides: right
• Type of mounting: Snap-on
• Connection type, additional connection: Screw connection
• Blade size: 1.0 x 5.5 mm
• Clamping screw: M 4
• Connection direction: on side
• Gauge to IEC 60947-1: B6
• Number of connections: 2
• Stripping length: 12 mm
• Tightening torque, max.: 1.9 Nm
• Tightening torque, min.: 1.2 Nm
• Type of connection: Screw connection
• Wire connection cross section AWG, max.: AWG 6
• Wire connection cross section AWG, min.: AWG 16
• Certificate No. (CSA): 200039-1057876
• Current size C (CSA): 65 A
• Voltage size C (CSA): 600 V
• Wire cross section max. (CSA): 6 AWG
• Wire cross section min. (CSA): 18 AWG
• Standards: IEC 60947-7-1
• Rated voltage: 1,000 V
• Rated DC voltage: 1,000 V
• Nominal current: 57 A
• Current at maximum wires: 76 A
• Rated impulse withstand voltage: 8 kV
• Pollution severity: 3
• Certificate No. (UR): E60693
• Conductor size Factory wiring max. (UR): 6 AWG
• Conductor size Factory wiring min. (UR): 18 AWG
• Conductor size Field wiring max. (UR): 6 AWG
• Conductor size Field wiring min. (UR): 18 AWG
• Current size C (UR): 65 A
• Voltage size C (UR): 600 V
• ETIM 8.0: EC000897
• ETIM 9.0: EC000897
• ETIM 10.0: EC000897
• ECLASS 14.0: 27-25-01-01
• ECLASS 15.0: 27-25-01-01
• Current - IEC: 57 A
• Voltage - IEC: 1000V
• Current - UL: 65 A
• Voltage - UL: 600V
• Wire Gauge or Range - AWG: 6-16 AWG
• Wire Gauge or Range - mm 2: 1.5-16mm 2
• Number of Positions: 2
• Number of Levels: 1
• Material - Insulation: Thermoplastic, Wemid
• Terminal - Width: 9.9mm
• Material Flammability Rating: UL94 V-0
• Termination Style: Screw
• Stripping Length: 12mm
• Model: WDU 10
• MPN: WDU 10
• Country of Origin: GERMANY
• Rated cross-section: 10 mm 2
• Volume resistance according to IEC 60947-7-x: 0.56 m 3
• Power loss in accordance with IEC 60947-7-x: 1.82 W
