Weidmuller Weidmuller 1020280000 WDU 6 BL Feed-Through Terminal Block 41 A
Weidmuller Weidmuller 1020280000 WDU 6 BL Feed-Through Terminal Block 41 A

Weidmuller 1020280000 WDU 6 BL Feed-Through Terminal Block 41 A

Brand: Weidmuller
SKU: 1020280000
Availability: In Stock

Ships same day if ordered by 12 pm
$14.99
$14.99
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

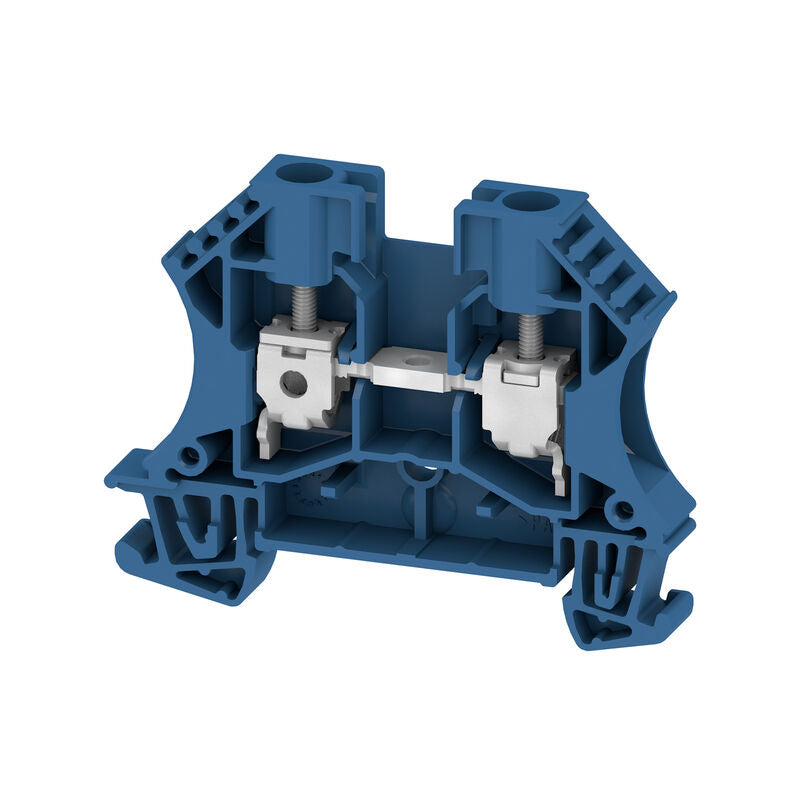

The Weidmuller 1020280000 WDU 6 BL is a feed-through terminal block with screw connection. This blue, 6 mm² terminal block supports 41 A and 800 V, and features two connections. It is designed for TS 35 mounting rail and is suitable for various industrial applications requiring secure and reliable connections.

  • Screw connection
  • Rated at 800 V and 41 A
  • Designed for TS 35 mounting rail

Product Highlights

The Weidmuller WDU 6 BL feed-through terminal block ensures reliable electrical connections in industrial settings.

Product Information

Standard Information

  • Brand: Weidmuller
  • Manufacturer Part Number: 1020280000
  • Country of Origin: Switzerland
Technical Specifications
Version
Screw connection
Order No.
1020280000
Type
WDU 6 BL
GTIN (EAN)
4008190100032
Depth
46.5 mm
Depth (inches)
1.831 inch
Depth including DIN rail
47 mm
Height
60 mm
Height (inches)
2.362 inch
Width
7.9 mm
Width (inches)
0.311 inch
Net weight
12.83 g
Storage temperature
-25 °C...55 °C
Ambient temperature
-60 °C…85 °C
Continuous operating temp., min.
-60 °C
Continuous operating temp., max.
130 °C
RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Basic material
Wemid
Colour
blue
UL 94 flammability rating
V-0
Certificate No. (ATEX)
DEMKO14ATEX1338U
Certificate No. (IECEX)
IECEXULD14.0005U
Max. voltage (ATEX)
690 V
Current (ATEX)
41 A
Wire cross section max. (ATEX)
10 mm²
Max. voltage (IECEX)
690 V
Current (IECEX)
41 A
Wire cross section max. (IECEX)
10 mm²
Marking EN 60079-7
Ex eb II C Gb
Ex 2014/34/EU label
II 2 G D
End cover plate required
Yes
Number of potentials
1
Number of levels
1
Number of clamping points per level
2
Number of potentials per tier
1
Levels cross-connected internally
No
PE connection
No
Mounting rail
TS 35
N-function
Yes
PE function
No
PEN function
No
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.
2.5 mm²
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.
0.5 mm²
Wire connection cross section, finely stranded, two clampable wires, min.
0.5 mm²
Wire cross-section, finely stranded, two clampable wires, max.
2.5 mm²
Explosion-tested version
Yes
Number of similar terminals
1
Open sides
right
Type of mounting
Snap-on
Connection type, additional connection
Screw connection
Blade size
0.8 x 4.0 mm
Clamping range, max.
10 mm²
Clamping range, min.
0.22 mm²
Clamping screw
M 3.5
Connection cross-section, finely stranded, min.
0.22 mm²
Connection cross-section, stranded, max.
10 mm²
Connection cross-section, stranded, min.
0.22 mm²
Connection direction
on side
Gauge to IEC 60947-1
A5
Number of connections
2
Stripping length
12 mm
Tightening torque, max.
1.6 Nm
Tightening torque, min.
0.8 Nm
Torque level with DMS electric screwdriver
3
Twin wire-end ferrules, max.
4 mm²
Twin wire-end ferrules, min.
0.5 mm²
Type of connection
Screw connection
Wire connection cross section AWG, max.
AWG 8
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section, finely stranded, max.
10 mm²
Wire connection cross section, finely stranded, min.
0.22 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
6 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0.22 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
6 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0.22 mm²
Wire connection cross-section, solid core, max.
10 mm²
Wire connection cross-section, solid core, min.
0.22 mm²
Certificate No. (CSA)
200039-1057876
Current size C (CSA)
50 A
Voltage size C (CSA)
600 V
Wire cross section max. (CSA)
8 AWG
Wire cross section min. (CSA)
22 AWG
Standards
IEC 60947-7-1
Rated cross-section
6 mm²
Rated voltage
0.8kV
Rated DC voltage
800 V
Nominal current
41 A
Current at maximum wires
57 A
Volume resistance according to IEC 60947-7-x
0.78 mΩ
Rated impulse withstand voltage
8 kV
Power loss in accordance with IEC 60947-7-x
1.31 W
Pollution severity
3
Certificate No. (UR)
E60693
Conductor size Factory wiring max. (UR)
8 AWG
Conductor size Factory wiring min. (UR)
22 AWG
Conductor size Field wiring max. (UR)
8 AWG
Conductor size Field wiring min. (UR)
22 AWG
Current size C (UR)
50 A
Voltage size C (UR)
600 V
ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-01
ECLASS 15.0
27-25-01-01
Current - IEC
41 A
Manufacturer
Weidmüller
Voltage - IEC
800V
Series
W
Current - UL
50 A
Part Status
Active
Wire Gauge or Range - AWG
8-26 AWG
Wire Gauge or Range - mm²
0.5-10mm²
Number of Positions
2
Material - Insulation
Thermoplastic, Wemid
Terminal - Width
7.9mm
Material Flammability Rating
UL94 V-0
Termination Style
Screw
Stripping Length
12mm
Type of splice terminal
rail
Current rating
41A
Electrical mounting
screw terminal
Body material
wemid
Wire cross-section
6mm 2
Number of ways
1
Number of terminals
2
Operating temperature
max. 125°C
Mounting rail size
TS35
Gross weight
12.96 g
Condition
New
Brand
Weidmuller
MPN
WDU 6 BL
Country of Origin
Switzerland
Category
Business & Industrial
Supplier
Weidmuller
Part No
1020280000
Unit of Measure
Per Each
RoHS
Yes
HTS
85369010
COO
DE
ECCN
EAR99
Body Orientation
Straight3817
Clamping Type
Screw Clamp
Rail Type
TS 35
Function
Feed Through
Configuration
Single Level
Wire Size
#20...8 AWG
Current
45 A
Voltage
600 V
Color/Material
Blue Wemid
Rated Voltage (UL)
600 V
Rated Voltage (CSA)
600 V
Rated Voltage (VDE)
800 V
Rated Current (UL)
45 A
Rated Current (CSA)
45 A
Rated Current (VDE)
41 A
Wire Size (UL)
#20...8 AWG
Wire Size (CSA)
#20...8 AWG
Wire Size (VDE)
6 mm²
Width/Length/Height mm (in.)
8/60/47 (.31"/2.36"/1.85")
Insulation Stripping Length mm (in.)
12 (.47")
Torque Nm (lb. in)
1.6 (14.2)
Clamping Screw
M 3.5
Flammability Class
UL 94 (V0)
Terminal Blocks
Din Rail, Channel
Weidmuller Weidmuller 1020280000 WDU 6 BL Feed-Through Terminal Block 41 A

Weidmuller

Weidmuller 1020280000 WDU 6 BL Feed-Through Terminal Block 41 A

$14.99
Weidmuller Weidmuller 1020280000 WDU 6 BL Feed-Through Terminal Block 41 A

Weidmuller

Weidmuller 1020280000 WDU 6 BL Feed-Through Terminal Block 41 A

$14.99
