Weidmuller Weidmuller 1018840000 ie-fcm-usb-a
Weidmuller Weidmuller 1018840000 ie-fcm-usb-a

Weidmuller 1018840000 ie-fcm-usb-a

Brand: Weidmuller
SKU: 1018840000
Availability: Out Of Stock
$31.70
$31.70
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

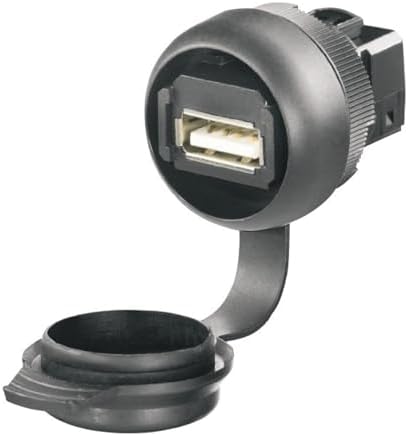

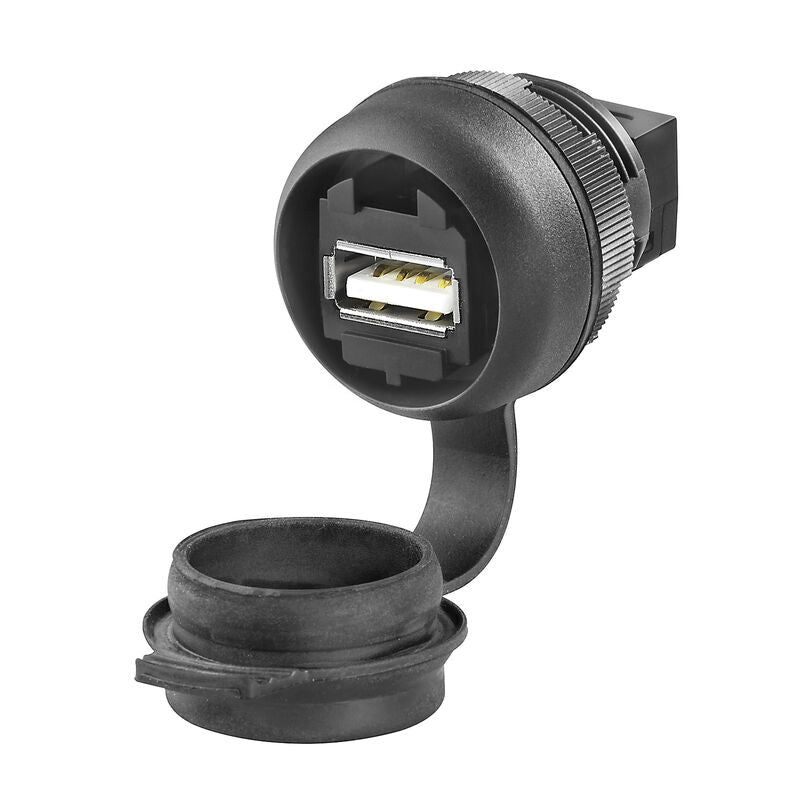

The Weidmuller 1018840000 IE-FCM-USB-A is a FrontCom Micro USB coupling, supporting USB 2.0, and featuring a Type A connection. Designed for cabinet or distribution box mounting, it offers a 360° shield contact and IP65 protection in a closed state. It is suitable for industrial, portable devices, communications, and networking applications.

  • FrontCom Micro USB coupling
  • USB 2.0
  • Type A
  • IP65 rated

Product Highlights

The Weidmuller 1018840000 is a FrontCom Micro USB coupling with USB 2.0 and Type A connection.

Product Information

Standard Information

  • Brand: Weidmuller
  • Manufacturer Part Number: 1018840000
Technical Specifications
Version
FrontCom Micro USB coupling, USB 2.0, Type A
Order No.
1018840000
Type
IE-FCM-USB-A
GTIN (EAN)
4032248730094
Connection 1
USB A
Connection 2
USB A
Description of article
FrontCom Micro USB coupling USB 2.0
Wiring
Type A
Colour
black
Housing main material
PA UL 94 V0
Type of mounting
Cabinet, Distribution box
Shielding
360 shield contact
Protection degree
IP65 in closed state
Plugging cycles
">= 1500"
Certificate no. (cULus)
E316369
Connector standard
IEC 61076-3-107
ETIM 8.0
EC001031
ETIM 9.0
EC001031
ETIM 10.0
EC001031
ECLASS 14.0
27-18-28-92
ECLASS 15.0
27-18-28-92
Depth
42.9 mm
Depth (inches)
1.689 inch
Height
44 mm
Height (inches)
1.732 inch
Width
29.5 mm
Width (inches)
1.161 inch
Wall thickness, min.
1 mm
Wall thickness, max.
5 mm
Operating temperature
-40 "".70 ".C
RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Brand
Weidmuller
Part Number #
1018840000
SKU #
2261625
Connector Type
USB
Series
Micro
Manufacturer Name
Weidmuller
UNSPSC
43223305
USB Connector Convert From
USB Type A Receptacle
USB Connector Convert To
USB Type A Receptacle
USB Standard
USB 2.0
IP Rating
IP65
Compatible Devices
All
Material
Copper
Specification Met
Ip65
Connectivity Technology
USB
