Description

Product Description

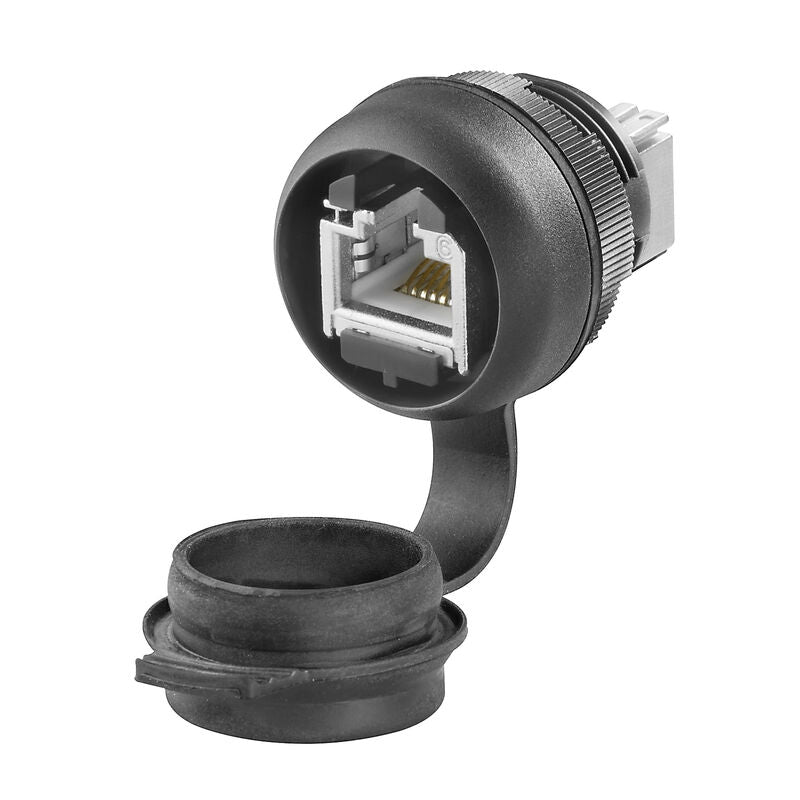

The Weidmuller 1018790000 IE-FCM-RJ45-C is a FrontCom Micro RJ45 coupling. It is designed for cabinet and distribution box mounting. The housing is made from PA UL 94 V0 material and offers IP65 protection in a closed state. Compliant with IEEE 802.3af for PoE/PoE+ applications.

  • RJ45 to RJ45 connection
  • Category Cat.6A / Class EA (ISO/IEC 11801 2010)
  • Operating temperature: -40 °C to 70 °C

Product Highlights

The Weidmuller 1018790000 is a shielded RJ45 coupler suitable for industrial network applications, ensuring reliable connections in harsh environments.

Product Information

Standard Information

  • Brand: Weidmuller
  • Manufacturer Part Number: 1018790000
  • Country of Origin: China
Technical Specifications
Version
FrontCom Micro RJ45 coupling
Order No.
1018790000
Type
Coupler
GTIN (EAN)
4032248730056
Connection 1
RJ45
Connection 2
RJ45
Description of article
FrontCom Micro RJ45 coupling
Colour
black
Housing main material
PA UL 94 V0
Category
Cat.6A / Class EA (ISO/IEC 11801 2010)
Contact surface
Gold over nickel
Type of mounting
Cabinet Distribution box
Shielding
Shielded
Protection degree
IP65
Plugging cycles
750 (RJ45)
Dielectric strength, contact / contact
≥ 1000 V AC/DC
Dielectric strength, contact / shield
≥ 1500 V AC/DC
PoE / PoE+
conforming to IEEE 802.3af
Connector standard
IEC 60603-7-51
ETIM 8.0
EC001031
ETIM 9.0
EC001031
ETIM 10.0
EC001031
ECLASS 14.0
27-18-28-92
ECLASS 15.0
27-18-28-92
Depth
42.9 mm
Depth (inches)
1.689 inch
Height
44 mm
Height (inches)
1.732 inch
Width
29.5 mm
Width (inches)
1.161 inch
Wall thickness, min.
1 mm
Wall thickness, max.
5 mm
Operating temperature
-40 °C...70 °C
RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Tightening torque fixing nut
2 Nm
Certificate no. (cULus)
E316369
Series
FrontCom®
Convert From (Adapter End)
Jack, 8p8c (RJ45)
Convert To (Adapter End)
Jack, 8p8c (RJ45)
Mounting Type
Panel Mount
Ingress Protection
IP65 - Dust Tight, Water Resistant
Ratings
Cat6a
Shell Material, Finish
Polyamide (PA), Nylon
Contact Material
Nickel
Contact Finish
Gold
Features
Cover
Part Status
Active
Net Weight
36.4 g
Shielding Type
360 Shield Contact
Brand
Weidmuller
Model
1018790000
UPC
Does not apply
Country of Origin
China
