Weidmuller 1016200000 WPE 2.5N

Brand: Weidmuller
SKU: 1016200000
Availability: In Stock

Ships same day if ordered by 12 pm
$14.99
$14.99
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

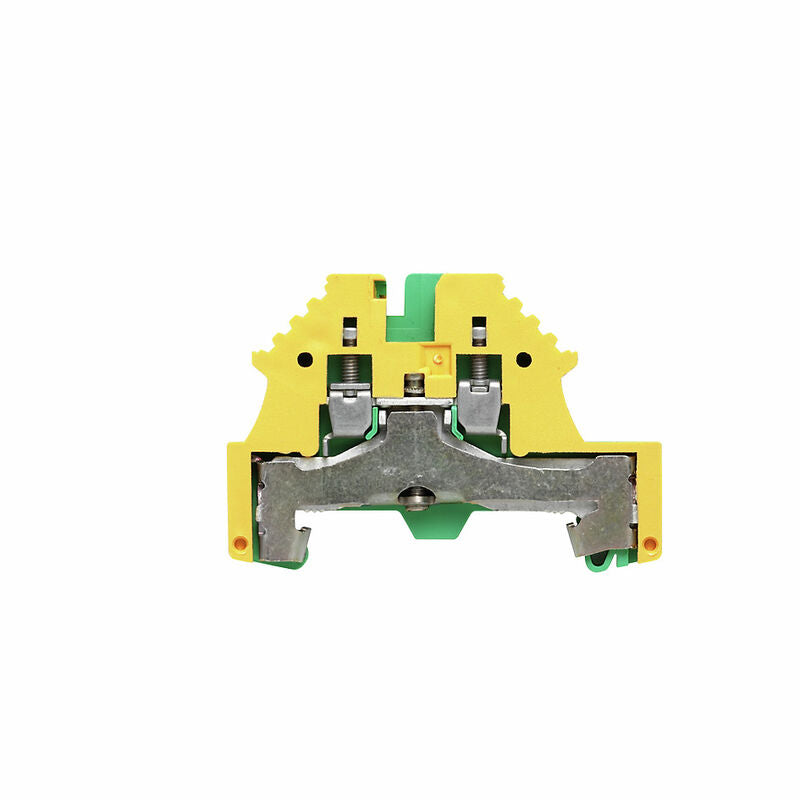

The Weidmuller 1016200000 is a PE terminal with screw connection. This terminal is designed for green/yellow, 2.5 mm wire and 500 V. The high reliability design of the Klippon terminal block with clamping yoke connections make planning easier and optimises operational safety.

  • Screw connection
  • Accepts 2.5mm wire size
  • TS35 Mounting rail

Product Highlights

The Weidmuller earth blocks have a great range, giving you a choice of finding exactly the right product you need for your machine. Designed to give you the best conductivity in applications such as control panels and rails.

Product Information

Standard Information

  • Brand: Weidmuller
  • Manufacturer Part Number: 1016200000
  • Country of Origin: United States
Technical Specifications
Order No.
1016200000
Type
WPE 2.5N
GTIN (EAN)
4008190018702
Depth
37 mm
Depth (inches)
1.457 inch
Depth including DIN rail
37.5 mm
Height
54 mm
Height (inches)
2.126 inch
Width
5.1 mm
Width (inches)
0.201 inch
Net weight
11 g
Storage temperature
-25 °C...55 °C
Ambient temperature
-60 °C 85 °C
Continuous operating temp., min.
-60 °C
Continuous operating temp., max.
130 °C
RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Basic material
Wemid
Colour
Green/yellow
UL 94 flammability rating
V-0
Certificate No. (ATEX)
DEMKO14ATEX1338U
Certificate No. (IECEX)
IECEXULD14.0005U
Wire cross section max. (ATEX)
2.5 mm²
Wire cross section max. (IECEX)
2.5 mm²
Marking EN 60079-7
Ex eb II C Gb
Ex 2014/34/EU label
II 2 G D
Version
Screw connection
With PE connection
One end without connector
End cover plate required
Yes
Number of potentials
1
Number of levels
1
Number of clamping points per level
2
Number of potentials per tier
1
Levels cross-connected internally
No
PE connection
Yes
Mounting rail
TS 35
N-function
No
PE function
Yes
PEN function
No
Explosion-tested version
Yes
Installation advice
when screwed in
Locking
for screw fixing
Number of similar terminals
1
Open sides
right
Type of mounting
when screwed in
Connection type, additional connection
Screw connection
Blade size
0.6 x 3.5 mm
Clamping range, max.
4 mm²
Clamping range, min.
0.05 mm²
Clamping screw
M 2.5
Connection cross-section, finely stranded, min.
0.05 mm²
Connection cross-section, stranded, max.
4 mm²
Connection cross-section, stranded, min.
0.05 mm²
Connection direction
on side
Gauge to IEC 60947-1
A3
Number of connections
2
Stripping length
10 mm
Tightening torque, max.
0.6 Nm
Tightening torque, min.
0.4 Nm
Torque level with DMS electric screwdriver
1
Type of connection
Screw connection
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section, finely stranded, max.
4 mm²
Wire connection cross section, finely stranded, min.
0.05 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0.05 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0.05 mm²
Wire connection cross-section, solid core, max.
4 mm²
Wire connection cross-section, solid core, min.
0.05 mm²
Certificate No. (CSA)
12400-286
Wire cross section max. (CSA)
12 AWG
Wire cross section min. (CSA)
26 AWG
Standards
IEC 60947-7-2
Rated cross-section
2.5 mm²
Rated voltage to adjoining terminal
500 V
Rated DC voltage
500 V
Volume resistance according to IEC 60947-7-x
1.33 mΩ
Rated impulse withstand voltage to adjacent terminal
6 kV
Power loss in accordance with IEC 60947-7-x
0.77 W
Pollution severity
3
Certificate No. (UR)
E60693
Conductor size Factory wiring max. (UR)
12 AWG
Conductor size Factory wiring min. (UR)
26 AWG
Conductor size Field wiring max. (UR)
12 AWG
Conductor size Field wiring min. (UR)
26 AWG
ETIM 8.0
EC000901
ETIM 9.0
EC000901
ETIM 10.0
EC000901
ECLASS 14.0
27-25-01-03
ECLASS 15.0
27-25-01-03
Mfr. #
1016200000
Mfr.
Weidmuller
No. of Positions
2Positions
Wire Size AWG Min
30AWG
Wire Size AWG Max
12AWG
Conductor Area CSA
2.5mm²
Wire Connection Method
Screw
Rated Voltage
500V
Product Range
W Series
SVHC
No SVHC (23-Jan-2024)
Brand
Weidmüller
MPN
1016200000
Condition
New
Country of Origin
United States
Product Type
Earth Terminal Block
Minimum Wire Size AWG
26AWG
Cable CSA
2.5mm²
Maximum Wire Size AWG
12AWG
Pitch
5mm
Terminal Block Current
300A
Minimum Operating Temperature
50°C
Termination Type
Screw
Maximum Operating Temperature
130°C
Hazardous Area Certification
IECEx/ATEX
