Weidmuller Weidmuller 1014300000 Terminal Block, Fused, 20-8AWG, 1X1/4IN
Weidmuller Weidmuller 1014300000 Terminal Block, Fused, 20-8AWG, 1X1/4IN

Weidmuller 1014300000 Terminal Block, Fused, 20-8AWG, 1X1/4IN

Brand: Weidmuller
SKU: 1014300000
Availability: In Stock

Ships same day if ordered by 12 pm
$23.57
$23.57
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

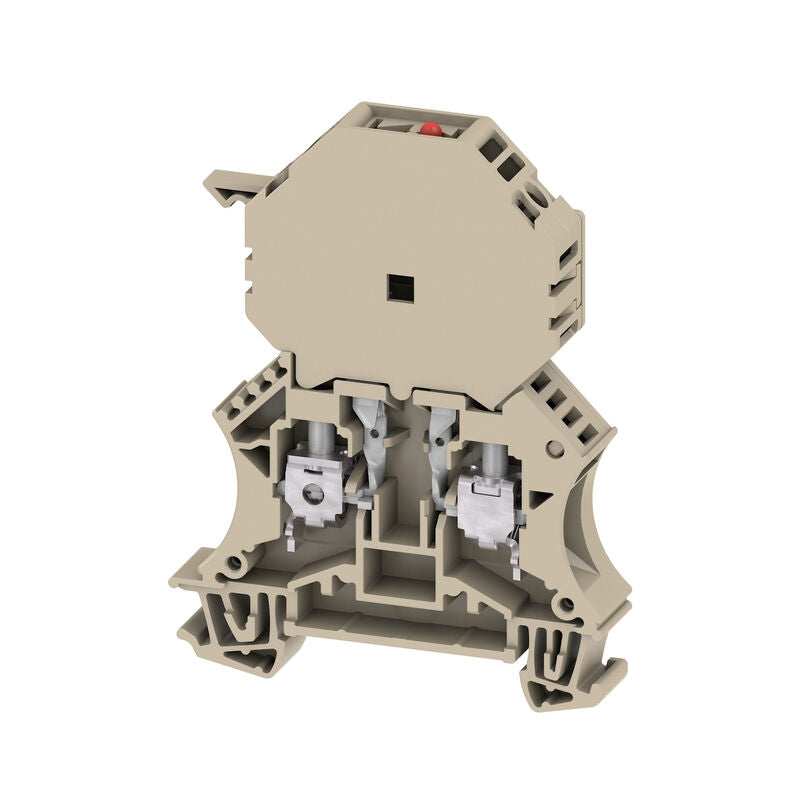

The Weidmuller 1014300000 is a fused terminal block, featuring a screw connection and a fuse isolator with LED. Designed for screwable cross-connection with one end without a connector. It accommodates 20-8 AWG wire. Fuse inserts or contact sleeves should be attached in the middle.

  • Fuse terminal with screw connection
  • Features a fuse isolator with LED
  • UL94V-0 Flammability rating

Product Highlights

This terminal block is ideal for connecting or joining conductors with permanently secure contact in industrial applications.

Product Information

Standard Information

  • Brand: Weidmuller
  • Manufacturer Part Number: 1014300000
  • Country of Origin: United States
Technical Specifications
Order No.
1014300000
Type
Disconnect
GTIN (EAN)
4008190084424
Depth
78.5 mm
Depth (inches)
3.091 inch
Depth including DIN rail
79.5 mm
Height
60 mm
Height (inches)
2.362 inch
Width
11.9 mm
Width (inches)
0.469 inch
Net weight
25.44 g
Storage temperature
-25 °C...55 °C
Ambient temperature
-50 °C 75 °C
Continuous operating temp., min.
-50 °C
Continuous operating temp., max.
120 °C
RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
7cI
REACH SVHC
No SVHC above 0.1 wt%
Basic material
Wemid
Colour
dark beige
UL 94 flammability rating
V-0
Version
Screw connection
Fuse isolator
with LED
for screwable cross-connection
One end without connector
End cover plate required
Yes
Number of potentials
1
Number of levels
1
Number of clamping points per level
2
Number of potentials per tier
1
Levels cross-connected internally
No
PE connection
No
Mounting rail
TS 35
N-function
No
PE function
No
PEN function
No
Explosion-tested version
No
Number of similar terminals
1
Open sides
right
Type of mounting
Snap-on
Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.
6 mm²
Connection type, additional connection
Screw connection
Blade size
0.8 x 4.0 mm
Clampable conductor Connection specification
Screw connection
Cross-section for conductor connection Type
flexible, H05(07) V-K
Tightening torque
min.: 0.8 Nm
wire end ferrule Stripping length
min.: 12 mm
Connection specification
Screw connection
Clamping range, max.
10 mm²
Clamping range, min.
0.5 mm²
Clamping screw
M 3.5
Connection cross-section, finely stranded, min.
0.5 mm²
Connection cross-section, stranded, max.
10 mm²
Connection cross-section, stranded, min.
0.5 mm²
Connection direction
on side
Gauge to IEC 60947-1
A5
Number of connections
2
Stripping length
12 mm
Tightening torque, max.
1.6 Nm
Tightening torque, min.
0.8 Nm
Torque level with DMS electric screwdriver
3
Type of connection
Screw connection
Type of connection 2
Screw connection
Wire connection cross section AWG, max.
AWG 8
Wire connection cross section AWG, min.
AWG 20
Wire connection cross section, finely stranded, max.
10 mm²
Wire connection cross section, finely stranded, min.
0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
6 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
6 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0.5 mm²
Wire connection cross-section, solid core, max.
10 mm²
Wire connection cross-section, solid core, min.
0.5 mm²
Certificate No. (CSA)
200039-1057876
Wire cross section max. (CSA)
6 AWG
Wire cross section min. (CSA)
20 AWG
Cartridge fuse
6.3 x 32 mm (1/4 x 1 1/4")
Display
Red LED
Fuse holder (cartridge holder)
Pivoting
Operating voltage, max.
150 V
Type of voltage for indicator
AC/DC
Standards
IEC 60947-7-3
Rated cross-section
6 mm²
Rated voltage
150 V
Rated voltage to adjoining terminal
500 V
Rated DC voltage
150 V
Nominal current
10 A
Current at maximum wires
10 A
Volume resistance according to IEC 60947-7-x
0.78 mΩ
Rated impulse withstand voltage
6 kV
Power loss in accordance with IEC 60947-7-x
1.31 W
Pollution severity
3
Certificate No. (UR)
E60693
Conductor size Factory wiring max. (UR)
8 AWG
Conductor size Factory wiring min. (UR)
22 AWG
Conductor size Field wiring max. (UR)
8 AWG
Conductor size Field wiring min. (UR)
22 AWG
No. of Positions
2Positions
Wire Size AWG Min
22AWG
Wire Size (AWG)
22AWG to 8AWG
Connector Mounting
DIN Rail Mount
Wire Size AWG Max
8AWG
Conductor Area CSA
6mm²
Wire Connection Method
Screw
Rated Current
6.3A
Rated Voltage
220V
Fuse Size Held
1" x 1/4"
Product Range
W Series
SVHC
No SVHC (16-Jan-2020)
Voltage - IEC
500V
Manufacturer
Weidmüller
Current - UL
6.3 A
Series
W
Voltage - UL
220V
Packaging
Bulk
Wire Gauge or Range - AWG
8-20 AWG
Part Status
Active
Wire Gauge or Range - mm²
0.5-10mm²
Features
LED
Disconnect Type
Fuse, Removable Plug
Color
Beige
Terminal - Width
11.9mm
Material Flammability Rating
UL94 V-0
Termination Style
Screw
UNSPSC
39121410
ECCN
EAR99
RoHS Compliant
ROHS
UOM
EA
Life Cycle
Active
