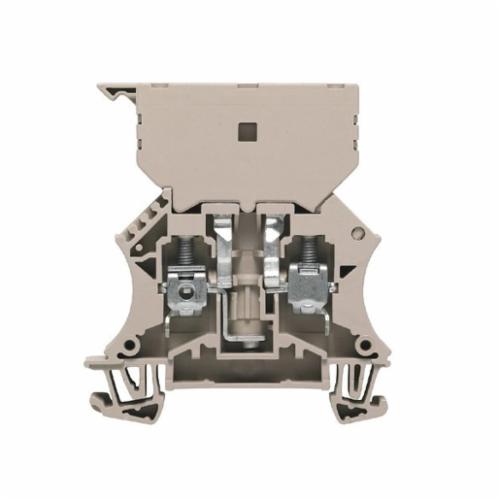

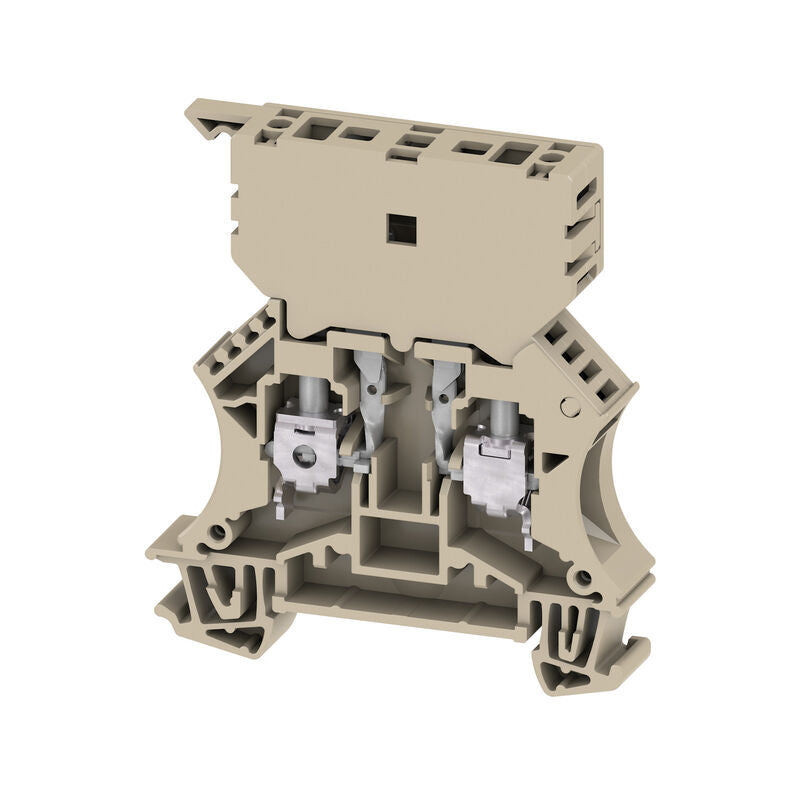

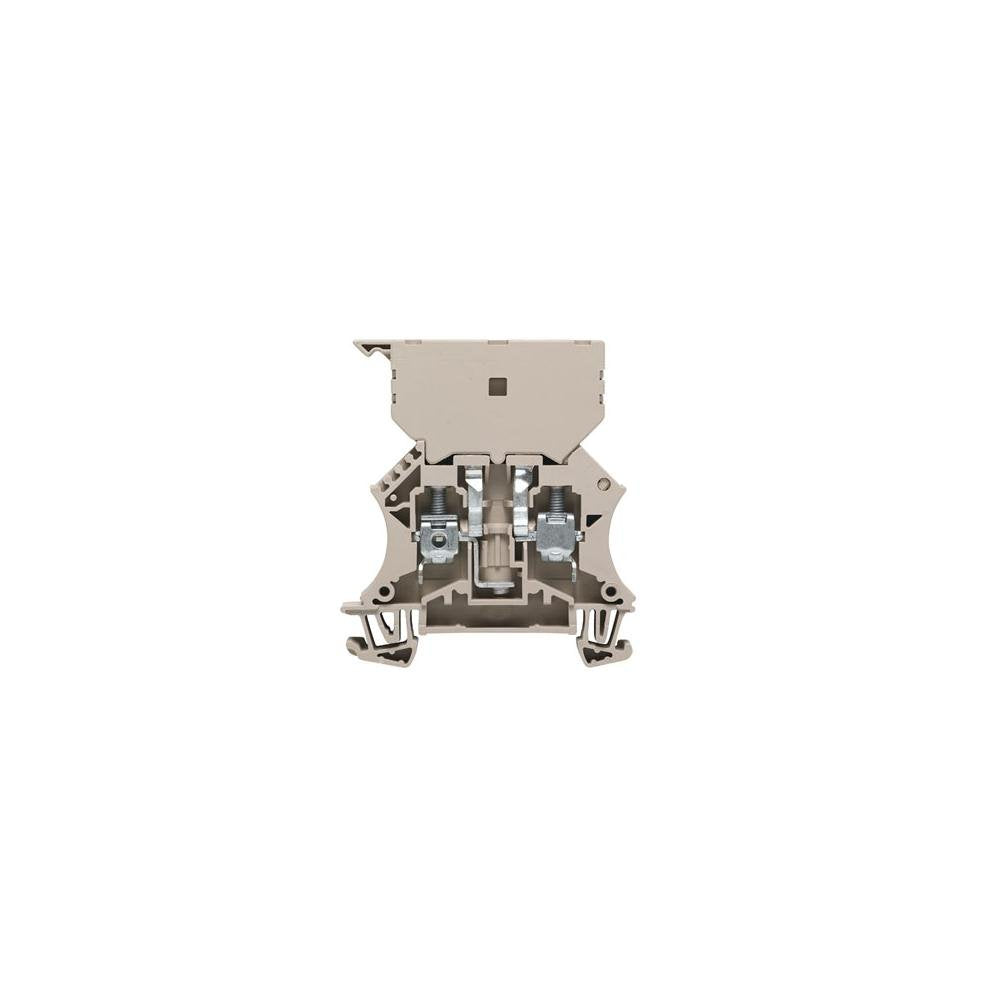

The Weidmuller 1014000000 WSI 6/2 Circuit Protection Terminals are designed for circuit protection. These terminals fit TS 35 DIN Rails and are UL Rated at 600 V / 20 Amp / #20..8 AWG. They accommodate a 1 1/4" x 1/4" fuse type. These terminals are suitable for various industrial applications requiring reliable circuit protection.

  • 12mm x 60mm x 67mm, Fits TS 35 DIN Rail
  • UL Rated: 600 V / 20 Amp / #20..8 AWG
  • Fuse Type: 1 1/4" x 1/4"

Product Highlights

Reliable circuit protection terminals suitable for industrial applications, featuring UL rating and compatibility with standard fuse sizes.

Product Information

Standard Information

  • Brand: Weidmuller
  • Manufacturer Part Number: 1014000000
  • Country of Origin: CZ
Technical Specifications
Version
Screw connection
Order No.
1014000000
Type
Single-Tier
GTIN (EAN)
4008190006723
Depth
2.618 Inch
Depth (inches)
2.618 inch
Depth including DIN rail
67 mm
Height
2.362 Inch
Height (inches)
2.362 inch
Width
11.9 mm
Width (inches)
0.469 inch
Basic material
Wemid
Colour
dark beige
UL 94 flammability rating
V-0
Fuse isolator
for screwable cross-connection
One end without connector
Yes
End cover plate required
Yes
Number of potentials
1
Number of levels
1
Number of clamping points per level
2
Number of potentials per tier
1
Levels cross-connected internally
No
PE connection
No
Mounting rail
TS 35
N-function
No
PE function
No
PEN function
No
Explosion-tested version
No
Number of similar terminals
1
Open sides
right
Mounting Type
Snap-on
Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.
6 mm
Connection type, additional connection
Screw connection
Blade size
0.8 x 4.0 mm
Clamping range, max.
10 mm
Clamping range, min.
0.5 mm
Clamping screw
M 3.5
Connection cross-section, finely stranded, min.
0.5 mm
Connection cross-section, stranded, max.
10 mm
Connection cross-section, stranded, min.
0.5 mm
Connection direction
on side
Gauge to IEC 60947-1
A5
Number of connections
2
Stripping length
12 mm
Tightening torque, max.
1.6 Nm
Tightening torque, min.
0.8 Nm
Torque level with DMS electric screwdriver
3
Type of connection
Screw connection
Type of connection 2
Screw connection
Wire connection cross section AWG, max.
AWG 8
Wire connection cross section AWG, min.
AWG 20
Wire connection cross section, finely stranded, max.
10 mm
Wire connection cross section, finely stranded, min.
0.5 mm
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
6 mm
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0.5 mm
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
6 mm
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0.5 mm
Wire connection cross-section, solid core, max.
10 mm
Wire connection cross-section, solid core, min.
0.5 mm
Certificate No. (CSA)
200039-1057876
Current size B (CSA)
16 A
Current size C (CSA)
16 A
Current size D (CSA)
5 A
Voltage size B (CSA)
150 V
Voltage size C (CSA)
150 V
Voltage size D (CSA)
600 V
Wire cross section max. (CSA)
6 AWG
Wire cross section min. (CSA)
20 AWG
Cartridge fuse
6.3 x 32 mm (1/4 x 1 1/4")
Display
Without LED
Fuse holder (cartridge holder)
Pivoting
Operating voltage, max.
500 V
Power loss for overload and short-circuit protection for a composite arrangement
2.5 W at 2.5 A @ 30 C
Power loss for overload and short-circuit protection for an individual arrangement
2.5 W at 2.5 A @ 42 C
Power loss for short-circuit protection only for a composite arrangement
2.5 W at 2.5 A @ 62 C
Power loss for short-circuit protection only for an individual arrangement
4 W at 10 A @ 52 C
Type of voltage for indicator
AC
Standards
IEC 60947-7-3, IEC 60947-7-1
Rated cross-section
6 mm
Rated voltage
500 V
Rated voltage to adjoining terminal
500 V
Rated DC voltage
500 V
Nominal current
10 A
Current at maximum wires
10 A
Volume resistance according to IEC 60947-7-x
0.78 m
Rated impulse withstand voltage
6 kV
Power loss in accordance with IEC 60947-7-x
1.31 W
Pollution severity
3
Certificate No. (UR)
E60693
Conductor size Factory wiring max. (UR)
8 AWG
Conductor size Factory wiring min. (UR)
22 AWG
Conductor size Field wiring max. (UR)
8 AWG
Conductor size Field wiring min. (UR)
22 AWG
Current size C (UR)
16 A
Voltage size C (UR)
600 V
ETIM 8.0
EC000899
ETIM 9.0
EC000899
ETIM 10.0
EC000899
ECLASS 14.0
27-25-01-13
ECLASS 15.0
27-25-01-13
Catalog Number
1014000000
Color
Dark Beige
Connection Type
Screw on Side
Country of Origin
CZ
Material
Wemid
Series
W
Temperature Rating
-50 to 120 deg C
Terminal Size
M3.5
Torque Rating
0.8 - 1.6 Nm
UNSPSC
39121410
Wire Strip Length
12 mm
Brand
Weidmuller
Manufacturer
Weidmuller, USA
Amperage Rating
6.3 A
Voltage Rating
500 VAC
Wire Size
20 - 8 AWG
Amperage
16 Amp
Conductor Size
6 AWG
Current
6.3 Amp
Dimensions
2.362 in H x 0.469 in W x 2.618 in D
