Product Description

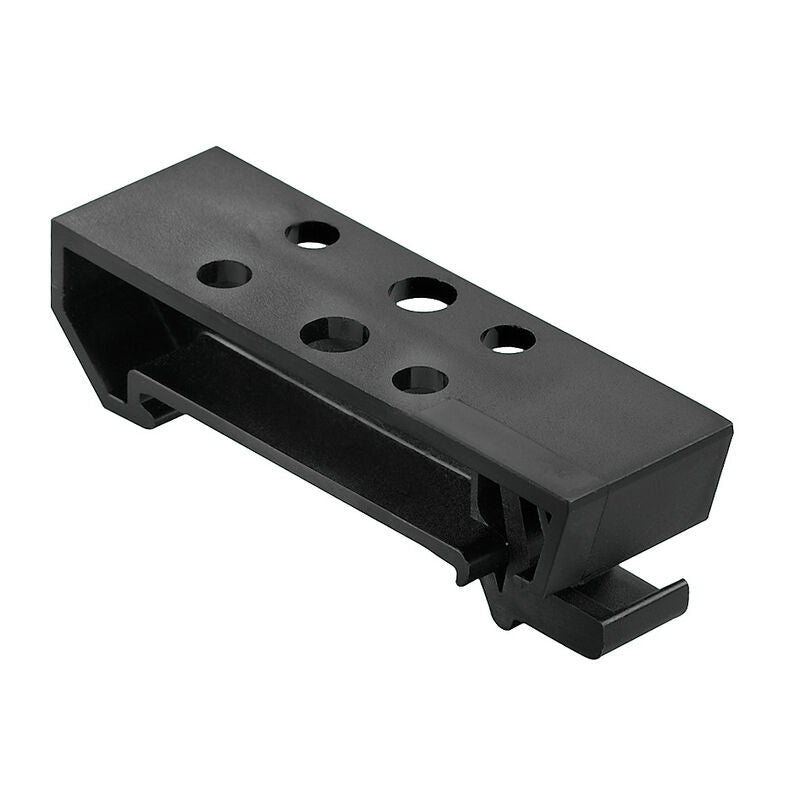

The Weidmuller 0646210000 is a snap-on mounting foot accessory made from Polyamide 66 for use with TS 35 mounting rails. Type MOFU 35/LO/1 SW, this mounting foot is designed for secure installation. It has a UL 94 V-2 flammability rating and a width of 18 mm. It is rated for a continuous operating temperature range of -50°C to 100°C.
- Snap-on mounting foot accessory
- Made from Polyamide 66
- For use with TS 35 mounting rails
Product Highlights
The 0646210000 mounting foot ensures stable base for components with snap-on fixing type.
Product Information
Standard Information
-
Brand: Weidmuller
-
Manufacturer Part Number: 0646210000
-
Country of Origin: RO
Technical Specifications
-
Supplier: Weidmuller
-
Part No: 0646210000
-
Unit of Measure: Per Each
-
RoHS: Yes
-
Type: Mounting Foot
-
Operating Temperature: -50 to 100 °C
-
Version: Mounting foot (terminal)
-
Order No.: 0646210000
-
GTIN (EAN): 4008190261887
-

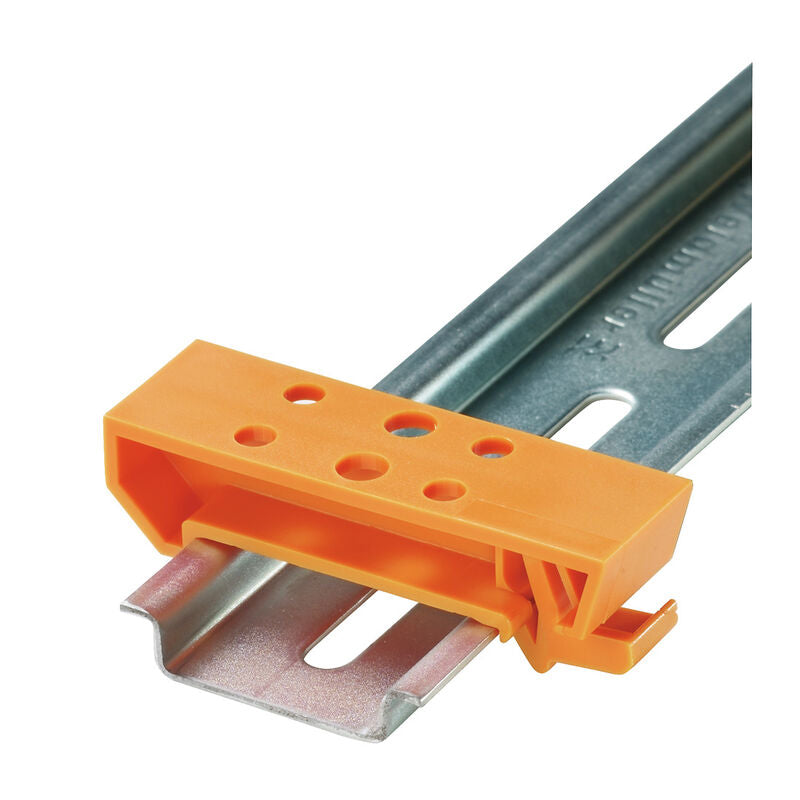

Mounting rail: TS 35
-
Depth: 18.35 mm
-
Depth (inches): 0.722 inch
-

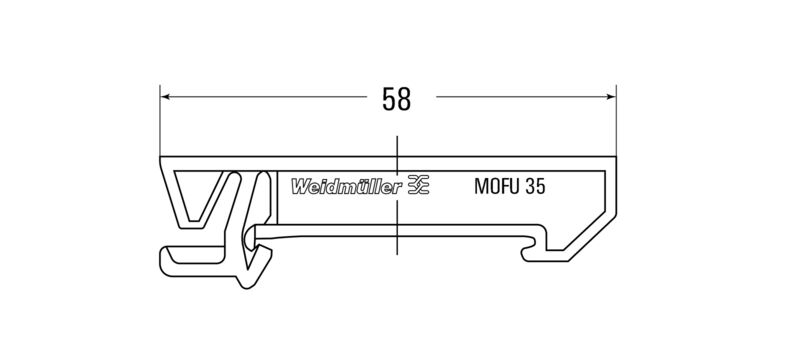

Height: 58 mm
-
Height (inches): 2.283 inch
-
Width: 18 mm
-
Width (inches): 0.709 inch
-
Net weight: 5.6 g
-
Ambient temperature: -5 °C…40 °C
-
Continuous operating temp., min.: -50 °C
-
Continuous operating temp., max.: 100 °C
-
RoHS Compliance Status: Compliant without exemption
-
REACH SVHC: No SVHC above 0.1 wt%
-
Basic material: Polyamide 66
-
Insulating material: Wemid
-
Colour: black
-
UL 94 flammability rating: V-2
-
Mounting foot: Mounting foot
-
End cover plate required: No
-
Explosion-tested version: No
-
Open sides: right
-
Type of fixing: Snap-on
-
Type of mounting: Snap-on
-
Connection direction: top
-
Type of connection: Tension-clamp connection
-
Pitch in mm (P): 18 mm
-
Primary brand: Weidmuller
-
Main function: Mounting accessory
-
Functions: Mounting foot
-
Design: right side open
-
Color: Black
-
Mounting mode: TS35 DIN rail mounting
-
Dimensions: H58mm x W18mm x D18.35mm
-
Material: Polyamide 66
-
Ambient air temperature for operation: -50...+100 °C
-
Thermal resistance: flame-resistant
-
eClass code: 27-14-11-92
-
ETIM code: EC002848
-
Manufacturer product status: Commercialized
-
EAN code: 4008190261887
-
Compliant with standard(s): RoHS
-
V-2 flammability rating: V-2 flammability rating
-
Model Number: N/0646210000
