Weidmuller 0546000000 ispf qb58 sw

Product Description

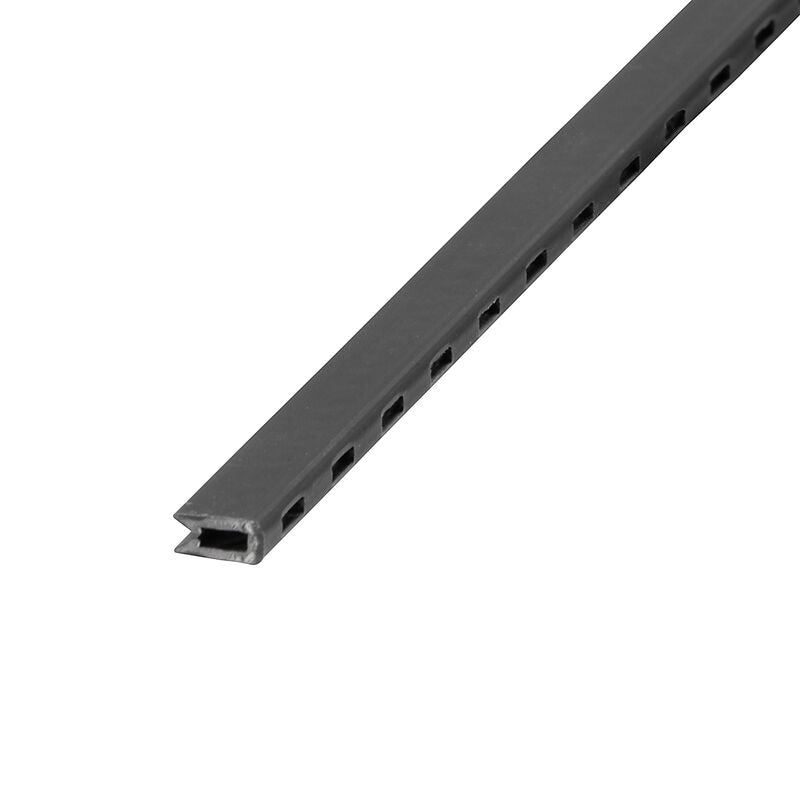

The Weidmuller 0546000000 is a black plugged mount cross connector made of plastic with ISPF QB58 SW insulation profile poles that are easy to break off for contacts that do not require a connection. Direct mounting installation advice. Mounting tolerances of the terminals must be taken into account.

• Black plugged mount Cross Connector
• Made of plastic
• ISPF QB58 SW insulation profile poles are easy to break off for contacts that do not require a connection

Product Highlights

The Weidmuller 0546000000 cross connection comb with insulation profile is designed for QB 58, featuring 58 poles and an 8mm pitch.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 0546000000

Technical Specifications

• Version: Cover profile
• Order No.: 0546000000
• Type: Insulation Sleeve
• GTIN (EAN): 4008190116705
• Depth: 2.5 mm
• Depth (inches): 0.224 inch
• Height: 5.7 mm
• Width: 2.5 mm
• Width (inches): 0.098 inch
• Ambient temperature: -5 \n0C\n40 \n0C
• RoHS Compliance Status: Compliant without exemption
• REACH SVHC: No SVHC above 0.1 wt%
• Basic material: PVC
• Colour: black
• UL 94 flammability rating: V-0
• Explosion-tested version: No
• Installation advice: Direct mounting
• Type of fixing: Plugged
• Type of mounting: Plugged
• Category: Connectors, Interconnects
• Material: Plastic
• Number of Rows: 1
• Orientation: Straight
• Lead Free: Lead Free
• Radiation Hardening: No
• RoHS: Compliant
• Accessory Type: Cross Connection Combs (with Insulation Profile)
• For Use With: Terminals without a cross connection channel in the terminal middle
• Color: Black
• RoHS Status: ROHS3 Compliant
• REACH Status: REACH Unaffected
