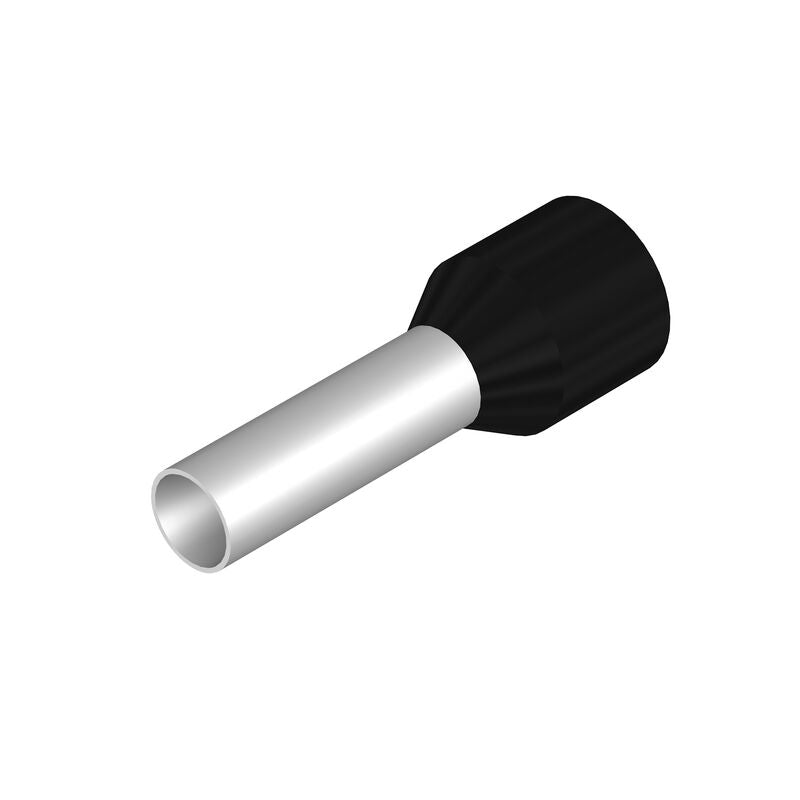

Weidmuller 0533500000 h6,0/20 sw wire end ferrule 10 awg

Product Description

The Weidmuller 0533500000 is a wire-end ferrule, standard, with a 14 mm stripping length. It ensures the long-term quality of electrical connections and is useful during installation. It has a 6mm ² conductor cross-section and 10AWG wire size.

• Wire-end ferrule
• Standard
• 14 mm stripping length
• Crimp termination method

Product Highlights

The Weidmuller wire end ferrules ensure long-term quality of electrical connections and ease of installation.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 0533500000

Technical Specifications

• Version: Standard
• Type: H6,0/20 SW
• Description of article: Wire end ferrule with plastic collar, black
• Collar diameter (D2): 6.3 mm
• Colour code: Weidmueller
• Conductor cross-section: 6 mm ²
• Contact surface diameter (D1): 3.5 mm
• Contact surface length (L2): 12 mm
• L1 in mm: 20 mm
• Metal sleeve thickness (S1): 0.2 mm
• Plastic collar thickness (S2): 0.3 mm
• Stripping length: 14 mm
• Wire connection cross section AWG, max.: AWG 10
• ETIM 8.0: EC000005
• ETIM 9.0: EC000005
• ETIM 10.0: EC000005
• ECLASS 14.0: 27-40-02-01
• ECLASS 15.0: 27-40-02-01
• Category: Connectors, Interconnects
• Terminal Blocks: Terminal Block Accessories
• Terminal Block Wire Ferrules: Insulation
• Insulated: Manufacturer
• Manufacturer: Weidm üller
• Size: 10 AWG (6.00mm ²)
• Length - Overall: 20.00mm
• Length - Pin: 12.00mm
• Single Wire: Single Wire
• Color: Black
• Wire Ferrule Type: Single Wire
• Wire Size AWG Max: 10AWG
• Conductor Area CSA: 6mm ²
• Pin Length: 12mm
• Insulator Colour: Black
• Overall Length: 20mm
• Insulator Material: PP (Polypropylene)
• Terminal Material: Copper
• Terminal Plating: Tin
• Insulation Material: Polypropylene
• Conductor Size: 10 AWG
• Connection Type: Crimped
• Contact Material: Electro-Galvanized Cathode Copper
• Temperature Rating: 221 deg F
