Weidmuller 0222760001 Ask1en/smt 10-60vuc bfi h-

Product Description

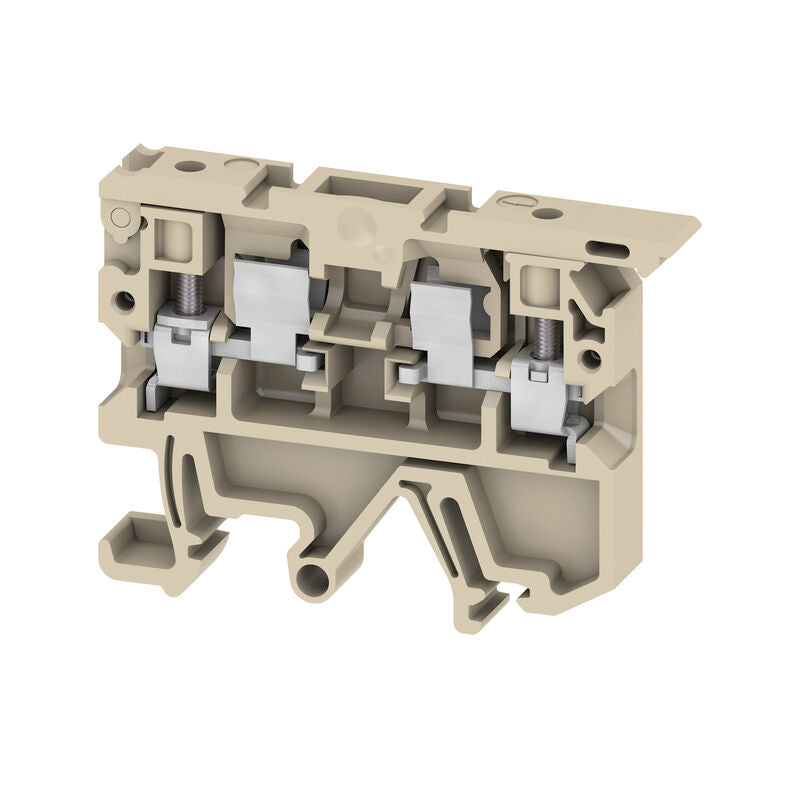

The Weidmuller 0222760001 ASK1EN/SMT 10-60VUC BFI H- is a fuse terminal block with screw connections. It accommodates wires from 12-26 AWG and has a rated cross-section of 4mm². Designed for DIN rail mounting, it features disconnect functionality and an LED indicator.

• Screw connection
• Wire range: 12-26 AWG
• DIN rail mounting

Product Highlights

Fuse terminal block with screw connection, suitable for DIN rail mounting and 12-26 AWG wires.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 0222760001

Technical Specifications

• Version: Screw connection
• Order No.: 0222760001
• Type: ASK1EN/SMT 10-60VUC BFI H-
• GTIN (EAN): 4032248730926
• Depth: 43 mm
• Depth (inches): 1.693 inch
• Height: 58 mm
• Height (inches): 2.283 inch
• Width: 8.1 mm
• Width (inches): 0.319 inch
• Net weight: 12.85 g
• Storage temperature: -25 00b0C...55 00b0C
• Ambient temperature: -50 00b0C 202655 00b0C
• Continuous operating temp., min.: -50 00b0C
• Continuous operating temp., max.: 100 00b0C
• RoHS Compliance Status: Compliant
• REACH SVHC: No SVHC above 0.1 wt%
• Basic material: PA 66
• UL 94 flammability rating: V-2
• Fuse cartridge: One end without connector
• Number of potentials: 2
• Number of levels: 1
• Number of clamping points per level: 2
• Levels cross-connected internally: No
• PE connection: No
• Mounting rail: TS 35, TS 32
• Type of mounting: Snap-on
• Clamping range, max.: 4 mm 00b2
• Clamping range, min.: 0.13 mm 00b2
• Connection cross-section, finely stranded, min.: 0.13 mm 00b2
• Connection cross-section, stranded, min.: 0.13 mm 00b2
• Connection direction: on side
• Number of connections: 2
• Type of connection: Screw connection
• Wire connection cross section AWG, max.: AWG 12
• Wire connection cross section AWG, min.: AWG 26
• Wire connection cross section, finely stranded, min.: 0.13 mm 00b2
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: 0.13 mm 00b2
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: 0.13 mm 00b2
• Wire connection cross-section, solid core, min.: 0.13 mm 00b2
• Rated cross-section: 4 mm 00b2
• Rated voltage: 60 V
• Rated DC voltage: 60 V
• Nominal current: 6.3 A
• Volume resistance according to IEC 60947-7-x: 1 m 03a9
• Power loss in accordance with IEC 60947-7-x: 1.02 W
• Category: Connectors, Interconnects
• Terminal Blocks: Din Rail, Channel
• Termination Style: Screw
• Manufacturer: Weidm 00fcller
• Current - IEC: 6.3 A
• Series: ASK
• Voltage - IEC: 500V
• Packaging: Bulk
• Current - UL: 10 A
• Part Status: Active
• Voltage - UL: 300V
• Disconnect Type: Fuse, Lever
• Wire Gauge or Range - AWG: 12-26 AWG
• Wire Gauge or Range - mm 00b2: 4mm 00b2
• Number of Positions: 2
• Features: LED
• Fuse Type: 5mm x 20mm
• Terminal - Width: 8.0mm
• Stripping Length: 9mm
• Mounting: Vertical
• Gangs: 1
• Color: Silver
• Material: Aluminum
• Part #: 0222760001
• Panel Accessories: Panel Accessories
