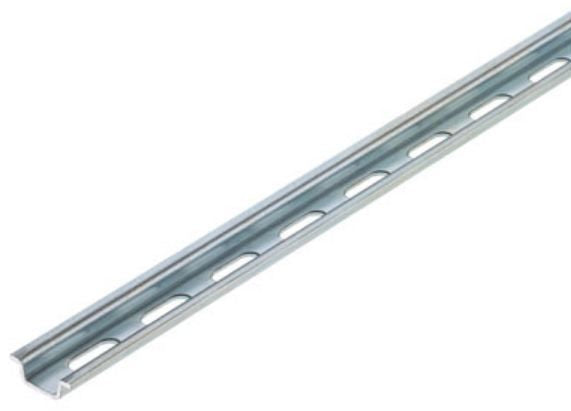

Weidmuller 0117500000 Din Rail 15x5mm 2 Meter Steel

Product Description

The WEIDMULLER 0117500000 is a TS 15x5 profile DIN rail supplied in a 2-meter length, constructed from steel with a zinc-plated finish. DIN rails of this profile serve as the standard mounting backbone for terminal blocks, circuit breakers, relays, and other panel-mount components inside electrical enclosures and control panels. The 15x5mm cross-section is a widely recognized low-profile rail format suited for compact assemblies. At approximately 0.31 pounds per the supplied weight, this rail is lightweight and easy to cut and fit during panel build. Electricians and panel builders install this rail during enclosure assembly before populating it with terminal blocks or modular devices.

This DIN rail is used in residential, commercial, and light industrial electrical panel applications. It provides a secure, standardized mounting surface for snap-on terminal blocks, miniature circuit breakers, and DIN-mount accessories. The 2-meter length allows panel builders to cut sections to the required length using a metal hacksaw or rail cutter, making it adaptable to a wide range of enclosure sizes and layouts.

Key Features

• TS 15x5mm low-profile DIN rail cross-section for compact panel layouts
• 2-meter length allows on-site cutting to fit any enclosure width
• Steel construction with zinc-plated finish for corrosion resistance
• Compatible with standard snap-on DIN rail mount components
• Lightweight at 0.31 pounds for easy handling and installation

Compatibility

Designed as a standard TS 15x5 profile mounting rail compatible with snap-on terminal blocks, modular circuit breakers, relays, and other DIN rail mount devices that conform to the TS 15x5 rail standard.

Installation Notes

Installation is performed by licensed electricians or qualified panel builders during enclosure assembly. De-energize the enclosure and follow applicable NEC requirements before working inside live panels. Cut the rail to length using a metal hacksaw or dedicated DIN rail cutter, then secure it to the enclosure backplate using appropriate mounting hardware before snapping on components. Deburr cut ends after cutting to prevent damage to mounted devices.

Technical Specifications

• Profile Type: TS 15x5mm
• Length: 2 meters
• Material: Steel
• Finish: Zinc Plated
• Weight: 0.31 pounds

Standard Information

• Brand: WEIDMULLER
• Manufacturer Part Number: 0117500000
