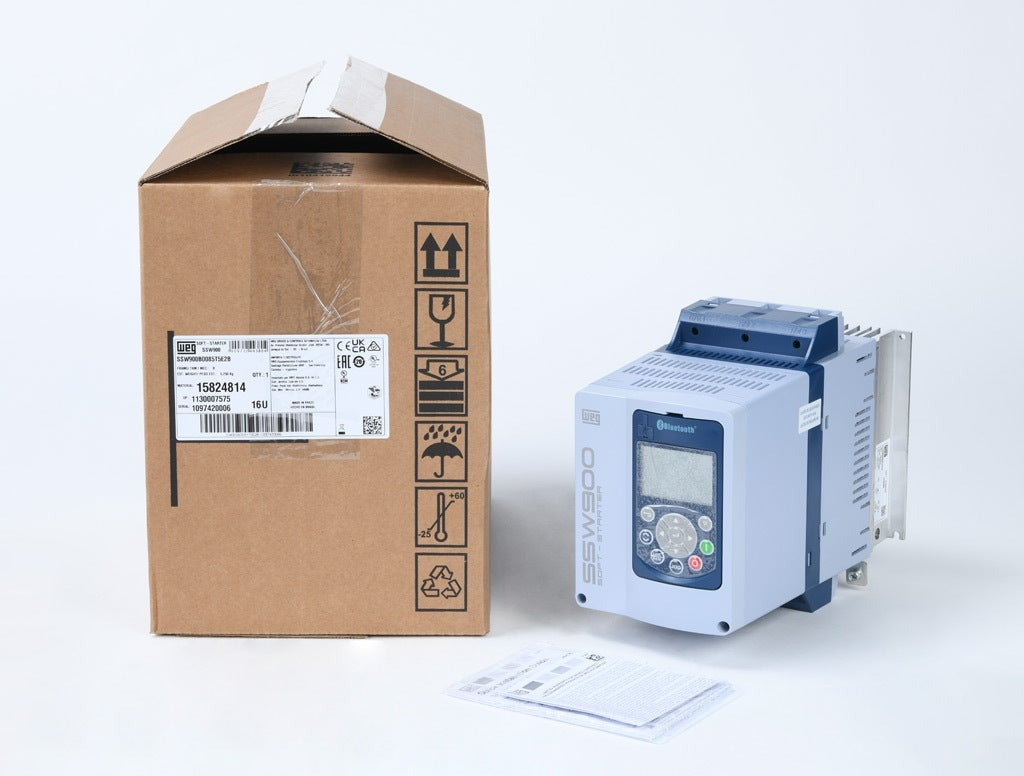

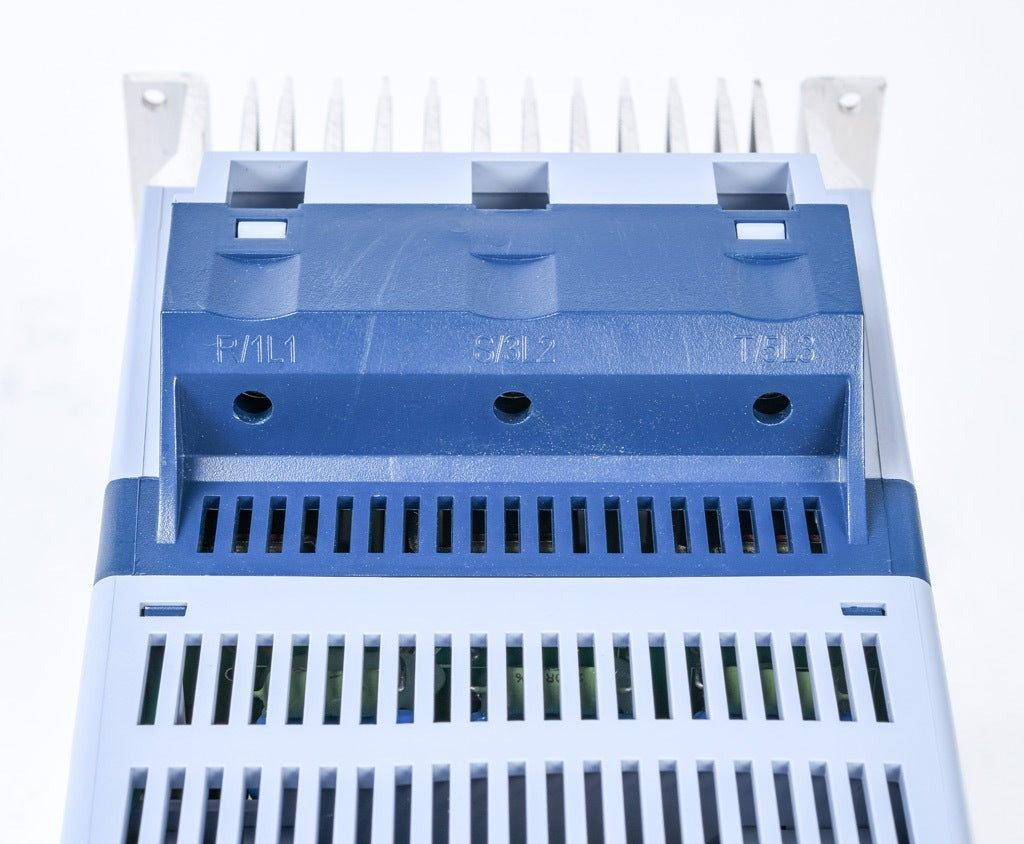

Weg SSW900B0085T5E2B Soft Starter 85A (Frame B) Replaces SSW060085T2257ESZ

Product Description

Weg SSW900B0085T5E2B is a full-featured soft starter rated 85 A for three-phase motors, supporting nominal voltages 220-240 / 440-480 / 575 VAC. The unit uses sinusoidal SCR control, includes an internal bypass relay and miniB-USB programming/monitoring port (up to 38.4k baud), and accepts control power 110-240 VAC. Trip class is selectable 10/20/30, and the Frame B enclosure is IP20. It is designed for motor starting, not transformer inrush control.

• 85 A rated soft starter for three-phase motors; nominal voltages 220-240 / 440-480 / 575 VAC
• Internally bypassed (built-in bypass relay), Frame B enclosure, IP20, panel or wall mounting
• Sinusoidal control, selectable trip class 10/20/30, control supply 110-240 VAC and miniB-USB port

Product Highlights

Full-featured soft starter with built-in bypass, sinusoidal SCR control, miniB-USB programming, and selectable trip class.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: SSW900B0085T5E2B
• Country of Origin: Brazil

Technical Specifications

• Brand: WEG
• Model / MPN: SSW900B0085T5E2B
• Series: SSW900
• Product Type: Full-featured soft starter
• Rated Current: 85 A
• Input Voltage: 220-240 VAC / 440-480 VAC / 575 VAC

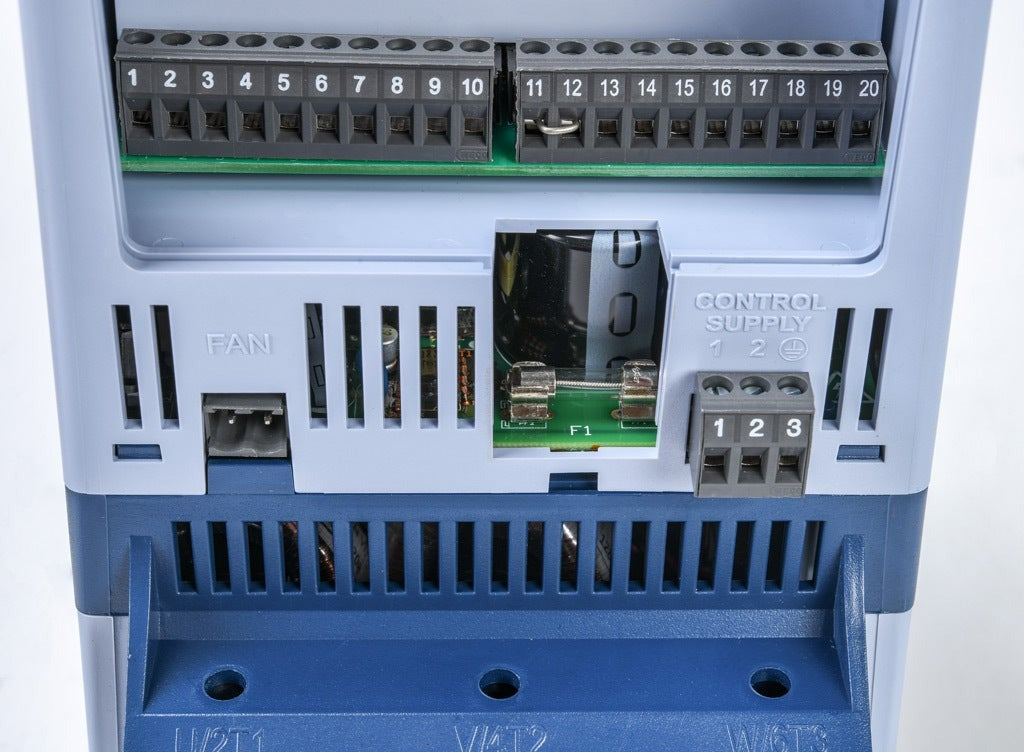

• Control Power (Supply Voltage - Control): 110-240 VAC
• Frequency: 50-60 Hz
• Number of Phases: 3
• Control Mode: Sinusoidal
• Output Type: SCR output (phase control for motor starting)
• Internally Bypassed: Yes (built-in bypass relay/contactors)
• Trip Class: Selectable 10/20/30
• Starts per Hour: 3 (10 with optional fan kit)
• Enclosure Rating: IP20
• Frame Size: B
• Mounting Type: Panel or wall
• Operating Temperature: -10 to 55 °C
• Protection Types: Motor overload, overcurrent, over-temperature, phase loss
• Communication Port(s): miniB-USB (programming and monitoring, up to 38.4k baud)
• Optional Communications: Plug-in modules: Profibus-DP, CANopen, DeviceNet, EtherNet/IP, Modbus (RTU/TCP), Profinet IO, RS-485

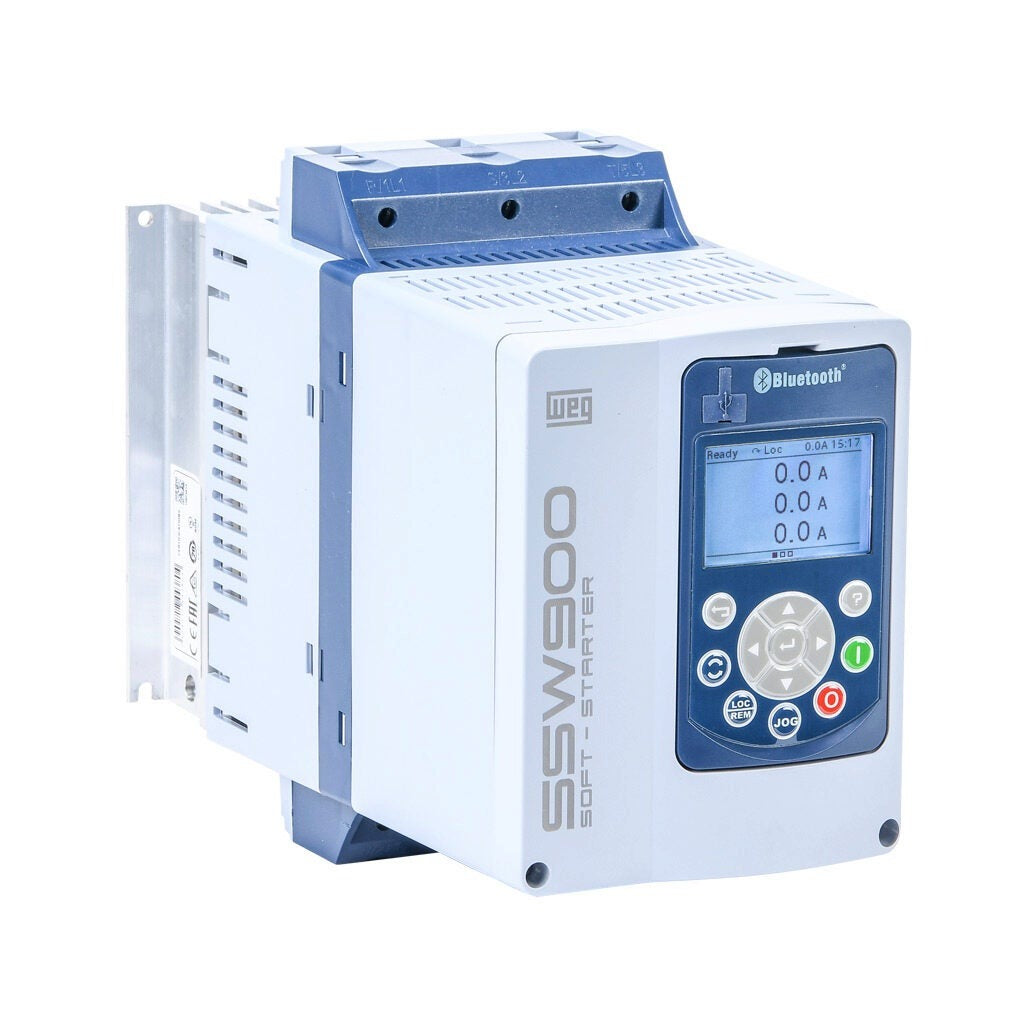

• HMI / Keypad: Detachable graphic/text keypad with USB and Bluetooth (optional/detachable)
• Motor Power (standard connection): 220/230V: 30 hp / 22 kW; 380/400V: 60 hp / 45 kW; 440/460V: 60 hp / 45 kW; 575V: 75 hp / 55 kW
• SCCR Rating: 65 kA
• Derating: Unit may require derating for applications other than fans and pumps
• Dimensions (H x W x D): 208 mm x 144 mm x 260 mm (8.2 in x 5.7 in x 10.2 in)

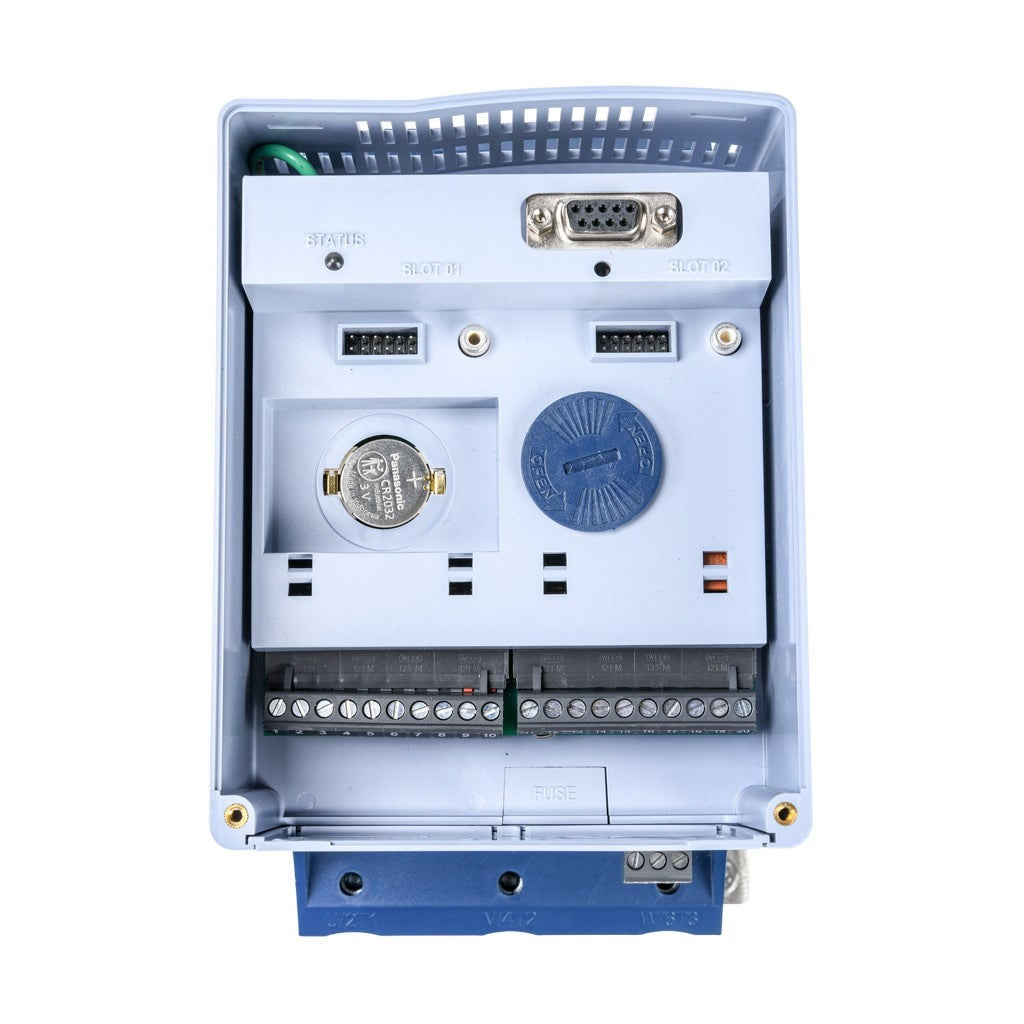

• Accessories / Options: Optional fan kit, plug-in communication and RTD cards, Bluetooth keypad, external current transformers
• Replaces / Alternate Part Numbers: SSW060085T2257ESZ; SSW900B0085T5E2; Alternate: 15824814
• Country of Origin: Brazil
• HS Code: 8536.30
