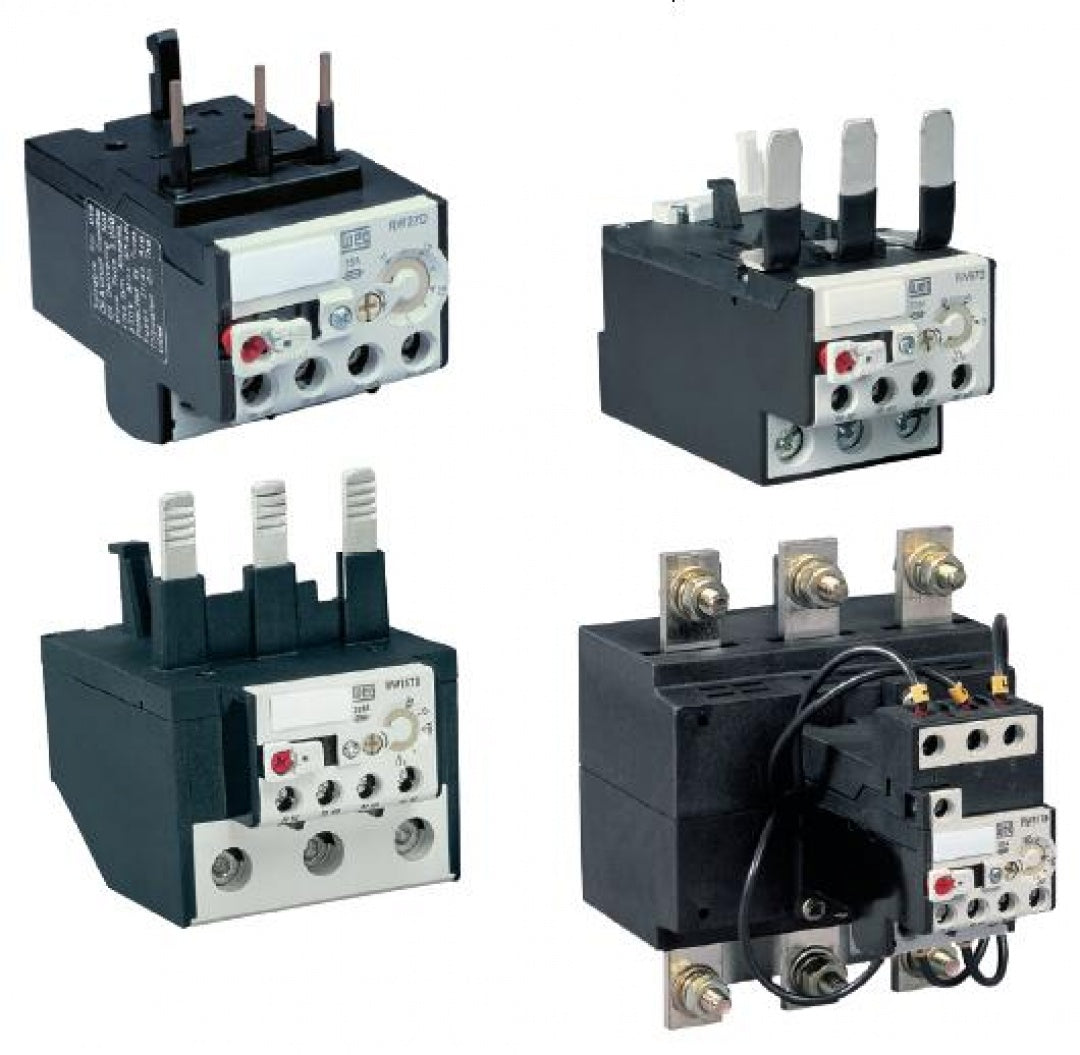

WEG RW27-1D3-U008 Overload Relay

Product Description

The WEG RW27-1D3-U008 Overload Relay is engineered to protect industrial motors from overloads, ensuring their longevity and reliability.

• Compatible with various motor applications
• Adjustable tripping current
• Temperature compensation from -40F to 1400F

Product Highlights

This overload relay safeguards motors from damage and is ideal for industrial use. It meets safety standards and offers easy installation.

Product Information

Standard Information

• Brand: WEG Electric Corp
• Model: RW27-1D3-U008
• Type: Overload Relay
• Applications: Industrial motor protection

Technical Specifications

• Item Number: RW27-1D3-U008
• Min Setting Range Amps: 5.6
• Max Setting Range Amps: 8
• Max Fuse Amps: 30
• Poles: 3
• Certifications: CE, UL for US and Canada, Bureau Veritas
• Features: Adjustable tripping current, Phase-loss sensitivity, Tripping class 10, Auxiliary contacts 1NO + 1NC, Temperature compensation from -40F to 1400F, Hand/Auto/Reset button
• Shipping Weight: 0.36 lbs
