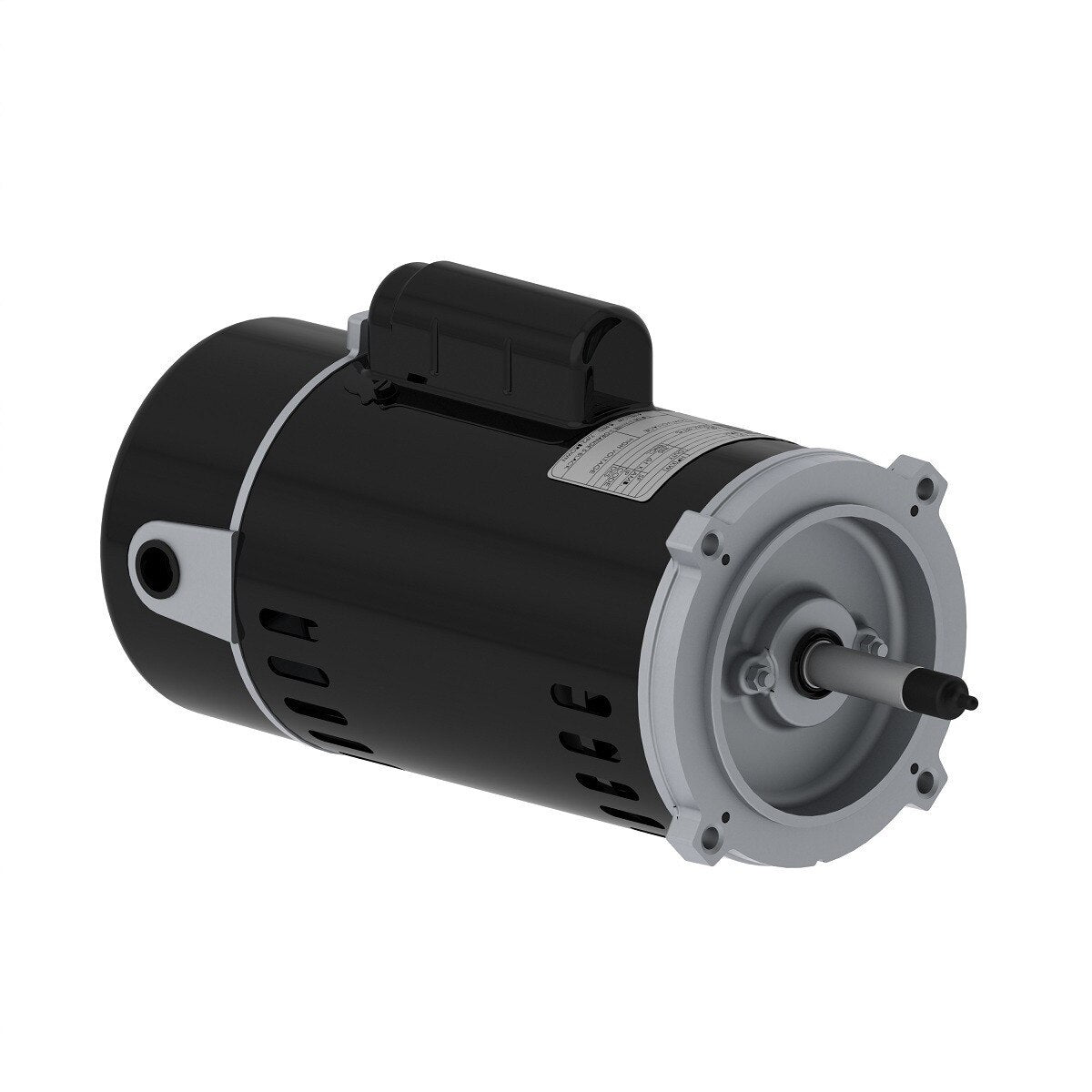

Weg PCQ120H Pool & Spa Motor 2 HP 3600

Product Description

The WEG PCQ120H is a 2 HP motor designed for pool and spa applications. It features a stainless steel shaft and automatic reset thermal protection. The motor is epoxy coated and rated for up to 50°C ambient temperatures. This single-phase motor operates at 230V and 3600 RPM.

• Specifically designed for pool duty
• Stainless steel shaft
• Automatic reset thermal protection

Product Highlights

Designed for pool and spa applications, this motor offers robust construction and thermal protection for reliable performance.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: PCQ120H
• Country of Origin: Brazil

Technical Specifications

• Output: 2 HP
• Poles: 2
• Frequency: 60 Hz
• Torque: 2.97 lb. ft
• Voltage: 230 V
• Frame: M48Y
• RPM: 3490
• Full Load Amps: 9.20 A
• Efficiency (100%): 78.3
• Power factor (100%): 0.90
• Insulation Class: B
• Noise Level: 58.0 dB(A)
• No load current: 3.60 A
• Locked Rotor Torque: 220 %
• Break Down Torque: 270 %
• Service Factor: 1.3
• Phase: Single Phase
• Enclosure: ODP
• Enclosure Rating: IP21
• Construction: Rolled Steel
• Rated speed: 3490 rpm
• Slip: 3.06 %
• Rated Current: 9.20 A
• LR Amperes: 64.4 A
• LRC: 7.0x(Code J)
• Rated Torque: 3.01 ft.lb
• Moment of Inertia: 0.0446 sq.ft.lb
• Design: -
• Locked Rotor Time: 10s (cold) 6s (hot)
• Temperature Rise: 70 K
• Duty Cycle: S1
• Maximum Room Temperature: 50 °C
• Minimum Room Temperature: -20 °C
• Altitude: 1000 m
• Cooling Method: ODP Open Drip Proof Open Motor
• Mounting: F-1
• Rotation Direction: Counter Clockwise
• Starting Method: Direct
• Enclosure Material: Steel Plate
• Front Bearing Shielding: 2RS
• Front Bearing Size: 6203
• Front Bearing Type: Ball
• Front Sealing Type: Lip Seal
• Rear Bearing Shielding: 2RS
• Rear Bearing Size: 6203
• Rear Bearing Type: Ball
• Rear Sealing Type: No Rear Sealing
• Grease Type: Mobil Polyrex EM
• VFD Turndown VT: N/A
• VFD Turndown CT: N/A
• Primary brand: WEG
• Order code / Manufacturer SKU: PCQ120H
• Manufacturer description: POOL & SPA PUMP - MOTOR 2HP 2P M48Y WCA1
