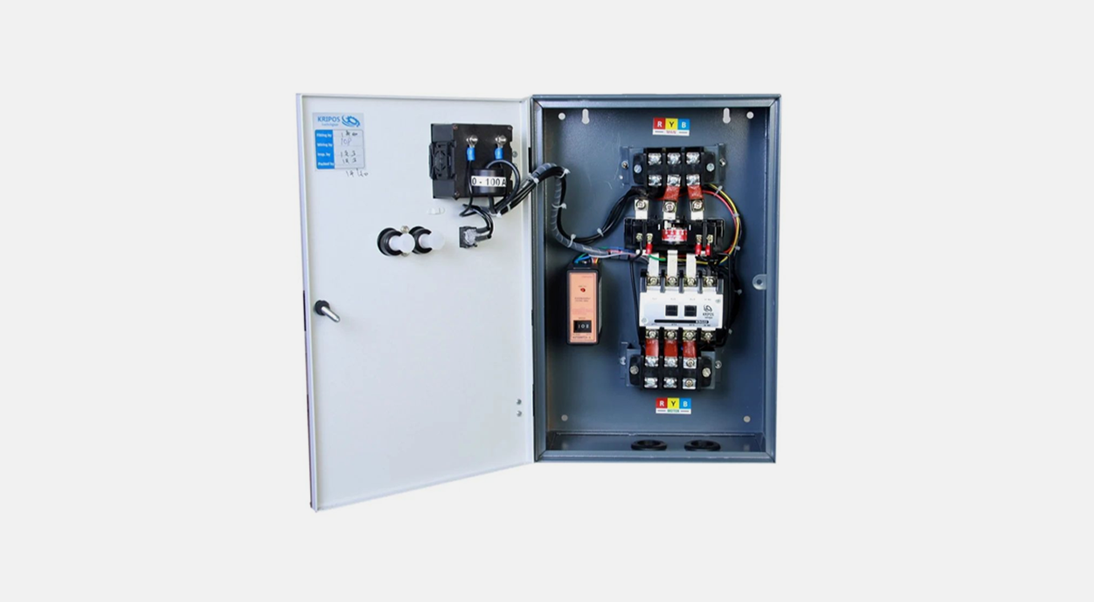

Weg ESW-B25V24E-R33 Enclosed Starter

Product Description

The WEG ESW-B25V24E-R33 enclosed starters are designed for industrial applications, featuring components that meet IEC design standards and UL horsepower ratings. These starters are UL508A approved and cULus certified. It has a control voltage of 180-208V50HZ/208-240V60HZ and a rated current (AC-3) of 25A (CWB25).

• Designed for industrial applications with flexibility in mind.
• Components meet IEC design standards and UL horsepower ratings.
• UL508A approved and cULus certified.

Product Highlights

WEG enclosed starters meet industrial demands, with IEC-compliant components, UL horsepower ratings, and UL508A/cULus certifications.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: ESW-B25V24E-R33
• Country of Origin: Brazil

Technical Specifications

• Start Type: Direct Three-phase
• Reference: ESW
• Maximum Power Rating: Not applicable
• Control voltage: 180-208V50HZ/208-240V60HZ
• Degree of protection: TYPE1
• Alternate Part Number: 10687726, Replaced ESW-25V24E-R33
• Amp Rating: 25 Amp
• Coil Voltage: 240V Coil
• Motor Control Type: Manual Motor Starters (MMS)
• Horsepower: 7.5 hp
• Poles: See Spec or N/A
• All - Specific Ratings: NEMA 1
• Series: ESW/ESWS Series
• Options: Enclosed
• Terminal Type: See Spec or N/A
• All - Voltage: 220/240VAC
• Rated current (AC-3): 25A (B)
• Overload relay: 15-23 A (RW27)
• Rated operational voltage: Ue<=600V
• Starters complements: Does Not Contain
• Model: ESW-B25V24E-R33
• Brand: WEG
• SKU: 5827982
• UOM: each
• Supply voltage: 180-208V50HZ/208-240V60HZ
• Button type: Unspecified
• Button color: Not Specified
• Connection Type: Not Applicable
• Starter key operation: E-Reset
• Type: Contactor
• MPN: ESW-B25V24E-R33
• UPC: 7909492194880
• Country of Origin: Brazil
• Primary brand: WEG
• Order code / Manufacturer SKU: ESW-B25V24E-R33
• Manufacturer product status: Commercialized
• Manufacturer description: Enclosed Starters (ESW) - ENCLOSED STARTER ESW-B25V24E-R33
• Location of origin: Brazil
