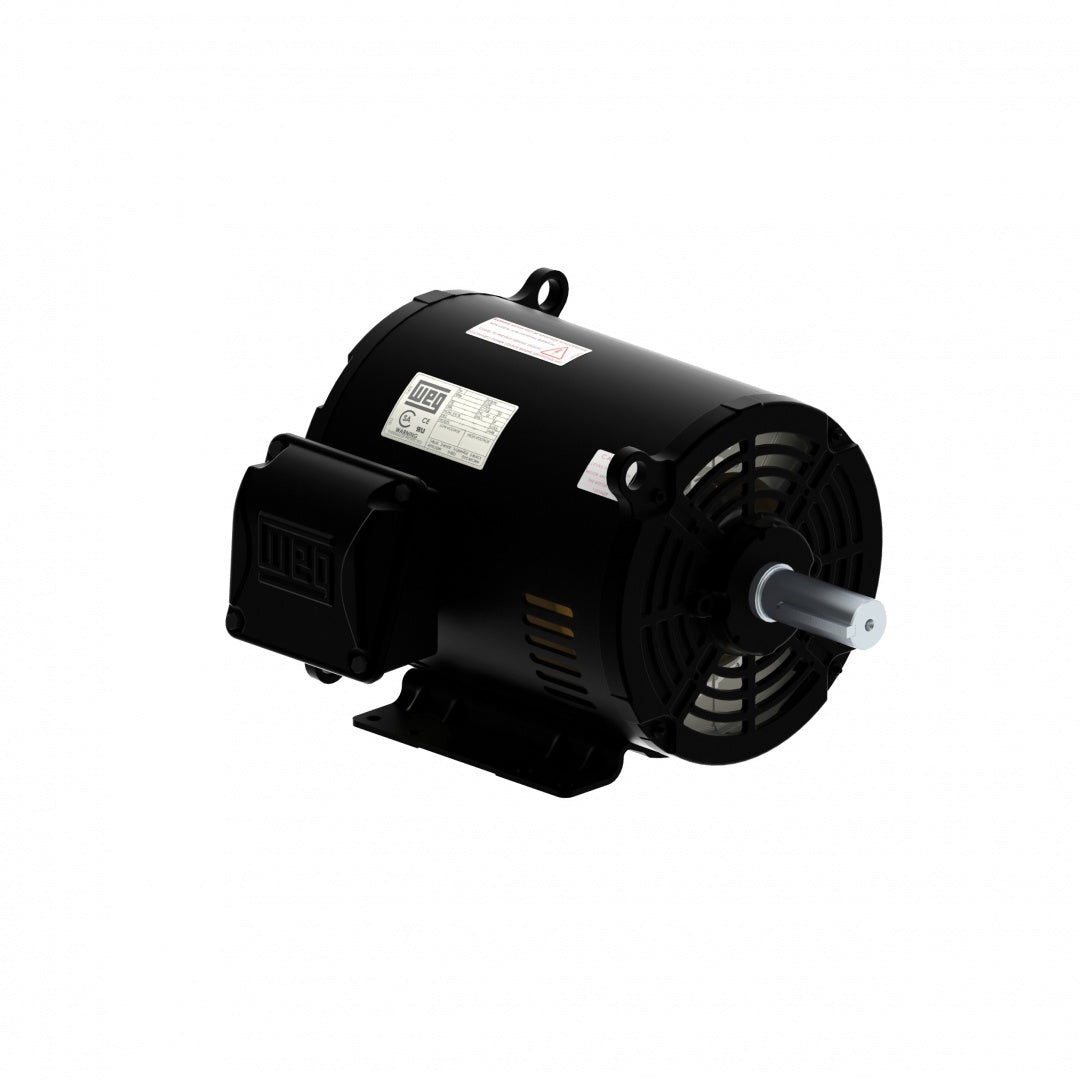

WEG Electric Corp 00118OT3E56-S Motor 1hp 1800rpm 56 Frame

Product Description

The WEG Electric Corp 00118OT3E56-S Motor is a 1 hp, 1800 rpm, 56 frame motor designed for demanding industrial applications. It ensures reliability and robust performance with its high-quality materials and construction.

• 3-phase power
• 1760 rpm speed
• Open Drip-Proof enclosure

Product Highlights

This motor is ideal for general-purpose applications and provides a reliable solution for various industrial operations. With its durable construction and efficient performance, it meets the rigorous demands of industries such as manufacturing, conveying, and material handling.

Product Information

Standard Information

• Brand: WEG Electric Corp
• MPN: 00118OT3E56-S

Technical Specifications

• Horsepower: 1 hp
• Speed: 1760 rpm
• Enclosure: Open Drip-Proof
• Frame: 56
• Voltage: 208/230/460 VAC
• Amperage: 3.47 to 3.14/1.57 A
• Frequency: 60 Hz
• Phase: 3 ph
• Rotation: CW/CCW
• Service Factor: 1.15
• Bearing Type: Ball
• Torque: 2.94 ft-lb
• Mounting: Footed
• Material: Rolled Steel
• Dimensions: 11.495 in L
• Insulation Class: Class F
• Temperature Rating: -20 to 40 deg C
