Product Description

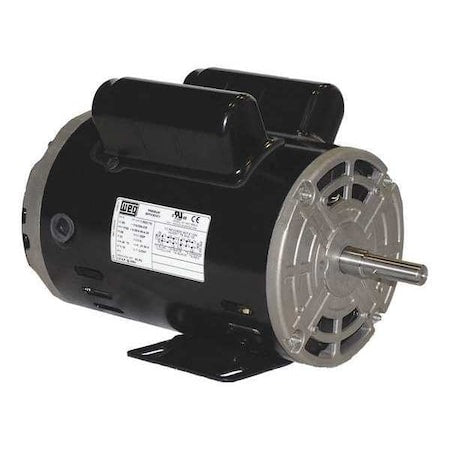

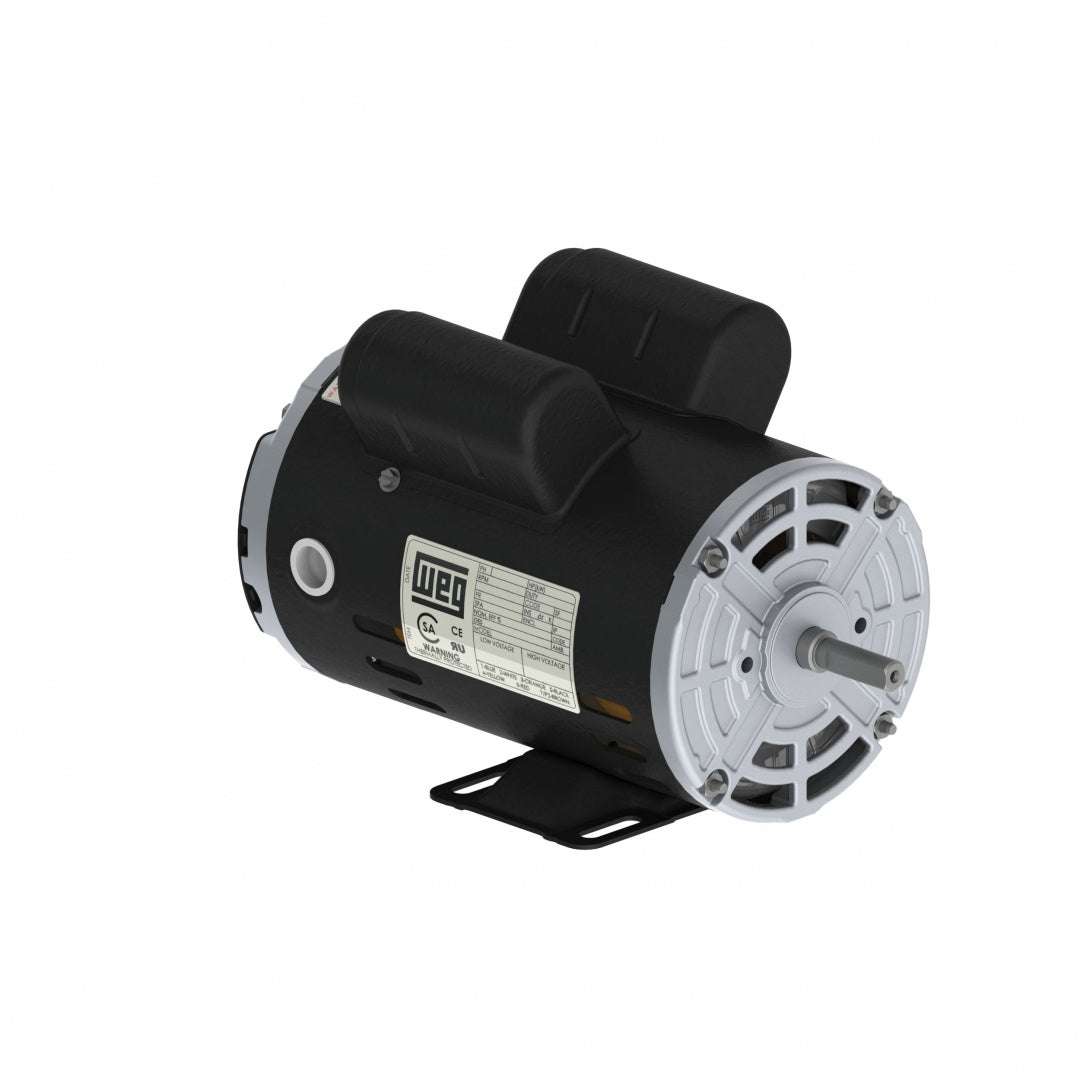

WEG Electric Corp 00118OT1B56-S motor is a reliable choice for general-purpose applications. This 1 HP motor operates at 115/208-230V, making it suitable for various electrical systems. It features a rugged rolled steel frame and a 56 frame size for compact installations.
- Continuous-duty motor
- Open drip-proof enclosure
- Ball bearing construction
Product Highlights
Ideal for pumps, fans, compressors, and conveyors. Ensures durability with a rolled steel frame and open drip-proof design. Operates at 1750 RPM with a 1.15 service factor.
Product Information
Standard Information
-
Brand: WEG Electric Corp
-
MPN: 00118OT1B56-S
Technical Specifications
-
Amperage Rating: 9/4.98 to 4.5 A
-
Application Type: General Purpose AC Motors
-
Bearing Type: Ball
-
Dimensions: 12.677 in L
-
Enclosure Type: Open Drip-Proof
-
Frame: 56
-
Frequency Rating: 60 Hz
-
Horsepower: 1 hp
-
Insulation Class: Class F
-
Material: Rolled Steel
-
Mounting Type: Footed
-
Number of Speeds: 1
-
Phase: 1 ph
-
Rotation: CW/CCW
-
Service Factor: 1.15
-
Shaft Size: 5/8 in Dia x 1-7/8 in L
-
Speed: 1750 rpm
