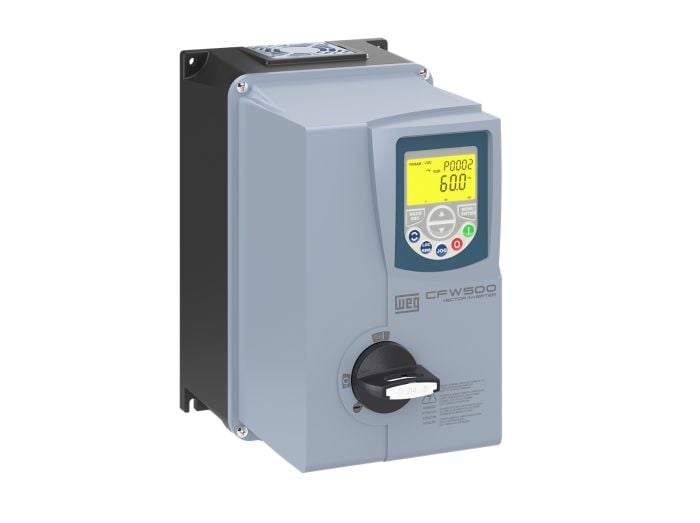

Weg CFW500A16P0T2DB66DSG2 Drive 200-240 V

Product Description

The WEG CFW500A16P0T2DB66DSG2 is a variable speed drive designed for applications requiring speed and torque control of three-phase induction motors. It operates within 200-240V. The drive features sensorless vector control, closed loop vector control, or scalar V/f, and SoftPLC, which adds PLC functions. It has an IP66 enclosure and standard dynamic braking.

• USB Communication Port Available with Plug‑In Module
• Factory tested at full load conditions and maximum operational temperature
• Features sensorless or closed loop vector control, VVW or Scalar V/f

Product Highlights

This variable speed drive provides a flexible and optimized solution for any application with plug‑in modules.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: CFW500A16P0T2DB66DSG2
• Country of Origin: US

Technical Specifications

• Power Supply: 200-240 V
• Input Phases: Three-phase
• Configuration: With options
• Rated Current (HD): 16 A
• RFI Filter: Without filter
• Enclosure: IP66
• Dynamic Braking: Yes
• Safety Stop: Prepared to install the accessory CFW500-SFY2
• Manufacturer Part Number: CFW500A16P0T2DB66DSG2
• Manufacturer: WEG Electric
• Product Series: CFW500
• Family Series: WEG Electric Drives, CFW500 Series
• Description: DRIVE CFW500A16P0T2DB66DSG2
• Phase: 3
• HP (Constant Torque Rating): 5 hp
• HP (Variable Torque Rating): 5 hp
• Amps (Constant Torque Rating): 16 A
• Amps (Variable Torque Rating): 16 A
• Brake: Dynamic Braking Resistor
• Closed Loop: Yes
• AC Line Regenerative: No
• Operator Controls: Keypad Included
• NEMA Rating: NEMA 4X
• Motor Control-Max Level: Closed Loop Vector (Sensorless Vector), Closed Loop Voltage Vector, V/Hz (Scalar)
• Mounting: Chassis Mount
• Nominal Input Voltage: 208 VAC, 240 VAC
• AC Voltage: 200-240 VAC
• Frame Size: A
• Protection Rating: IP66
• Height: 10.43 "
• Width: 6.5 "
• Depth: 9.9 "
• Analog Inputs: 1
• Braking Unit: Yes
• Communication (On-Board): Modbus-RTU
• Control Method: V/f Sensorless Vector Closed Loop Vector PM Motor
• Enclosure Rating (IP): IP66
• Enclosure Rating (NEMA): NEMA 4X
• Safe Torque Off (STO): No
• UL Listed: Yes
