Weg .7536ES1BJP56J-S Motor 0.75 HP, 3600 RPM, TEFC, 56J FRAME

Product Description

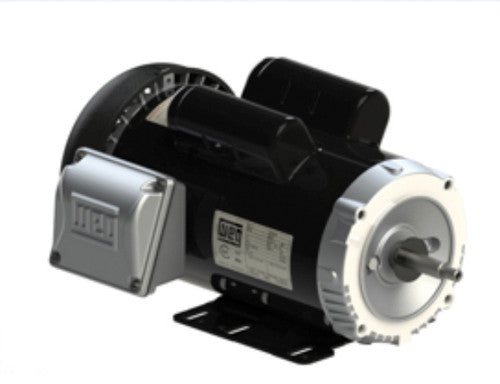

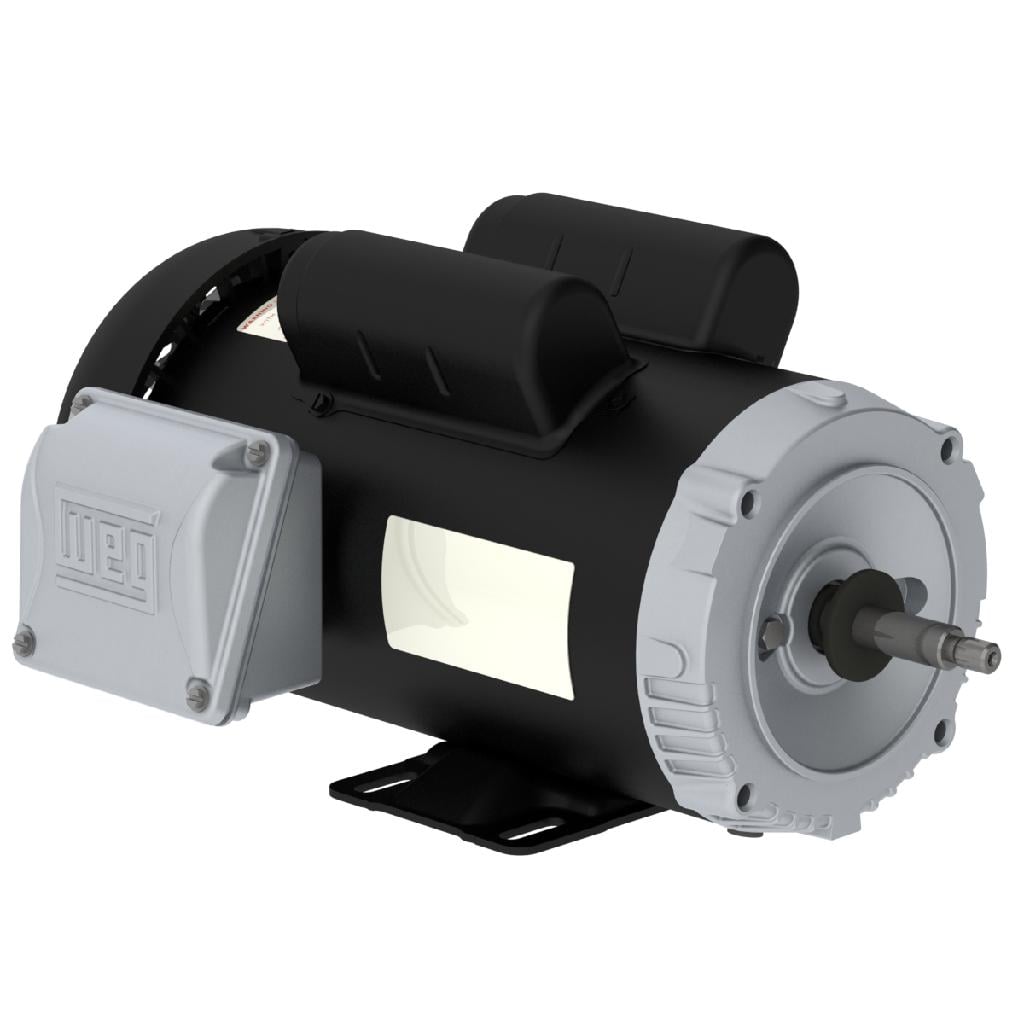

The WEG .7536ES1BJP56J-S is a 0.75 HP motor with a speed of 3600 RPM. This single-phase jet pump motor is designed for commercial applications and is also suitable for residential use. It features a TEFC enclosure and a 56J frame. The motor is designed for foot mounting.

• Insulation class B
• Sealed ball bearings (Drive End)

Product Highlights

This WEG motor is ideal for jet pump applications, providing reliable performance with its TEFC enclosure and robust design.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: .7536ES1BJP56J-S
• Country of Origin: Brazil

Technical Specifications

• HP [Specifications]: 0.75
• FRAME [Specifications]: 56J
• VOLTAGE [Specifications]: 115/208-230
• Nameplate RPM [Specifications]: 3600
• Full Load Amps [Specifications]: 4
• Overall Length [Specifications]: 13.22
• Nominal Efficiency [Specifications]: 64
• Motor Mounting Type [Specifications]: FOOT
• Motor Frame Material [Specifications]: ROLLED STEEL
• Motor Service Factor [Specifications]: 1.15
• Motor Enclosure Design [Specifications]: TEFC
• Country of Origin (subject to change) [Specifications]: Brazil
• Application: Jet Pump
• Output HP: 3/4
• Output KW: 0.55
• Output RPM: 3500
• Frame NEMA: 56J
• Mount NEMA: C-Face With Base
• Enclosure NEMA: IC411 - TEFC
• Enclosure IEC: IP55
• Frequency (Hz): 60
• Alternate Part Number: 14804530
• Series: W01
• Enclosure: TEFC
• Frame: 56J
• Volts: 115/208-230
• Phase: 1
• Manufacturer: WEG
• Classification: JM-JP & Jet Pump
• Model: 13645806
• Replaces: .7536ES1BJP56J
• Part Number: .7536ES1BJP56J-S
• Input Current: AC
• Frame Type: 56J
• Horsepower: .75 HP
• kW: 0.55
• Mounting Type: Footed
• RPM: 3600
• Voltage: 115/208-230
