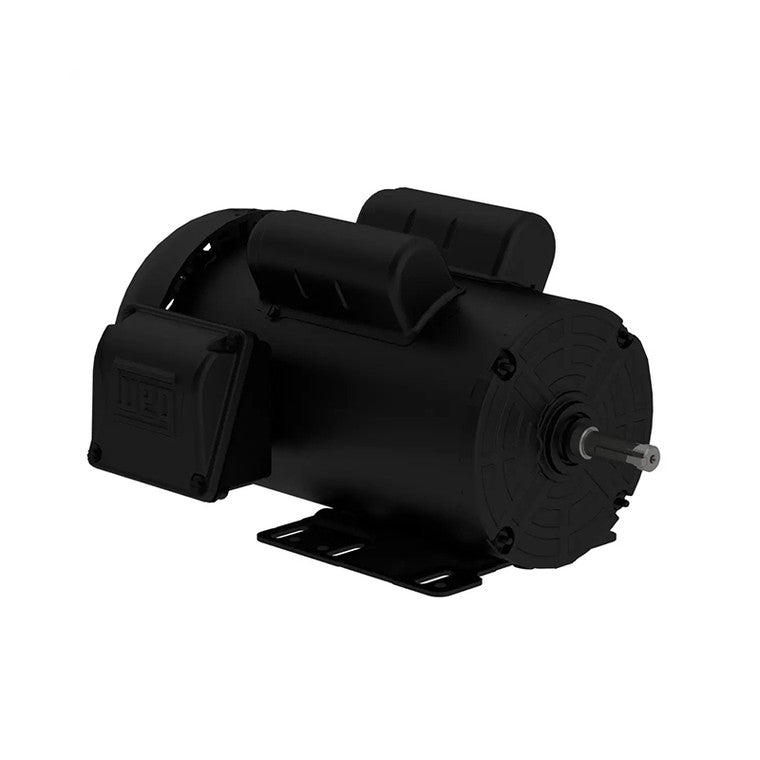

Weg .7536ES1B56-S 3/4HP 3500RPM 56 TEFC 1PH Motor

Product Description

The WEG .7536ES1B56-S 3/4HP single-phase TEFC motor is suitable for applications requiring robustness, low weight, and high performance. It offers good thermal performance, easy installation, and maintenance. This motor is designed for general-purpose use and is foot-mounted with a rolled steel frame.

• Ball bearings
• Class F insulation
• V-ring seals

Product Highlights

This WEG motor is ideal for applications needing a robust and efficient single-phase motor.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: .7536ES1B56-S
• Country of Origin: Brazil

Technical Specifications

• Application: General Purpose
• Output HP: 3/4
• Output KW: 0.55
• Output RPM: 3500
• Frame NEMA: 56
• Mount NEMA: Base Mount
• Enclosure NEMA: IC411 - TEFC
• Enclosure IEC: IP55
• Voltage: 115/208-230 V
• Frequency: 60 Hz
• Phase: Single Phase
• Poles: 02
• Rated speed: 3500 rpm
• Slip: 2.78 %
• Rated Current: 8.00/4.42-4.00 A
• LR Amperes: 64.0/35.4-32.0 A
• LRC: 8.0x(Code L)
• No Load Current: 4.00/1.72-2.00 A
• Rated Torque: 1.13 ft.lb
• Locked Rotor Torque: 280 %
• Breakdown Torque: 290 %
• Insulation Class: F
• Service Factor: 1.15
• Moment of Inertia: 0.0394 sq.ft.lb
• Design: N
• Locked Rotor Time: 18s (cold) 10s (hot)
• Temperature Rise: 80 K
• Duty Cycle: S1
• Maximum Room Temperature: 40 °C
• Minimum Room Temperature: -20 °C
• Degree of Protection: IP55
• Altitude: 1000 m
• Cooling Method: TEFC Totally Enclosed Fan Cooled
• Mounting: F-1
• Rotation Direction: Both
• Noise Level: 68.0 dB(A)
• Starting Method: None
• Enclosure Material: Steel Plate
• Front Bearing Shielding: ZZ
• Front Bearing Size: 6203
• Front Bearing Type: Ball
• Front Sealing Type: V Ring
• Rear Bearing Shielding: ZZ
• Rear Bearing Size: 6202
• Rear Bearing Type: Ball
• Rear Sealing Type: No Rear Sealing
• Grease Type: Mobil Polyrex EM
• VFD Turndown VT: N/A
• VFD Turndown CT: N/A
• Standard: NEMA MG-1
• Number of poles: 2
• Synchronous speed: 3600 rpm
• Output rating: 0.75 HP
• Flange: Without
• Terminal box : Left position
• Model: .7536ES1B56-S
• Brand: WEG
• Product Condition: New
• Motor Type: General Purpose
• Horsepower Rating: 0.75 HP
• Synchronous RPM: 3600 RPM
• Frame Size: 56
• Rated Supply Voltage: 115/208-230 V
• Motor Enclosure Type: Totally Enclosed Fan Cooled (TEFC)
• Rated Voltage: 208 V, 230 V, 115 V
• Efficiency: 66%
• Construction: Rolled Steel
• C Dimension: 12.721
• Mounting Type: Foot Mount
• Rated Input Frequency: 60 Hz
• Motor Full Load Amps: 4:00 AM
• Full Load Amp (FLA): 4
• Hz: 60
• Product Notes: Rolled Steel Frame - Cannot be modified with T Box on opposite side
• Quick Specs: 3/4HP 3600 1 60 115/208-230V
• Speed (RPM): 3600
• Volts: 115/208-230
• Frame Remarks: Footed
• Manufacturer: WEG
• Classification: Single Phase
• Item Condition: Factory New
• Replaces: .7536ES1B56-S
