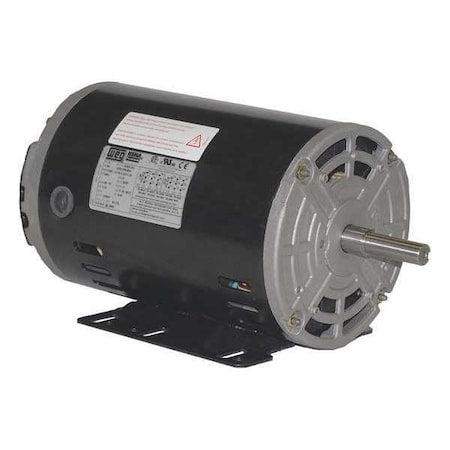

WEG .7518OT3E56-S General Purpose Motor 3/4 HP 56 Frame 208-230/460V

Product Description

The WEG .7518OT3E56-S is a robust general purpose motor designed for continuous operation in diverse industrial environments. Engineered by WEG, this motor is known for its durability and efficiency, making it a preferred choice for professionals.

• Operates on a dual voltage system (208-230/460V) providing versatility across various installations.
• Delivers a consistent output with a horsepower of 3/4 and a nameplate RPM of 1760.
• Features an open dripproof design, ensuring reliability in dry environments.

Product Highlights

This WEG motor is constructed to meet rigorous industrial demands, featuring a frame of 56 and a motor service factor of 1.25. It supports all-angle mounting which increases its adaptability in different setups.

Product Information

Standard Information

• HP: 3/4 HP
• Voltage Compatibility: 208-230/460V

Technical Specifications

• Operational Speed: 1760 RPM
• Construction: Steel frame with conduit box included
• Efficiency: NEMA Premium Efficient
• Warranty: 3 years
• Full Load Amps: 2.5-2.3/1.20
• Motor Bearings: Ball
• Motor Design: 3-Phase
• Mounting Type: Rigid Base
