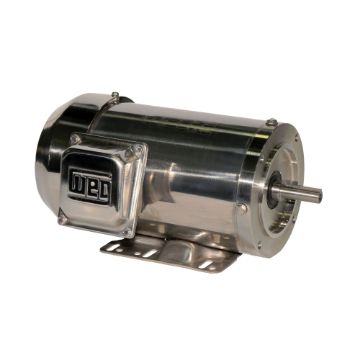

WEG 7518EP3ESS56C Shark AC Motor 0.75 hp 230/460 VAC 56C

Product Description

WEG Shark AC Motor 7518EP3ESS56C is designed for general purpose applications. This motor operates at 0.75 horsepower and is suitable for use with 230 or 460 VAC supply. It runs at a speed of 1800 rpm and has a totally enclosed fan cooled enclosure, promoting efficient operation in various environments.

• 0.75 horsepower
• Totally enclosed, fan cooled
• Designed for washdown duty applications

Product Highlights

This WEG motor is built for diverse applications, including food processing and pharmaceutical industries. The motor features a stainless steel construction, making it durable and resistant to washdown conditions.

Product Information

Standard Information

• Brand: WEG
• Model Number: 7518EP3ESS56C

Technical Specifications

• Horsepower: 0.75 hp
• Voltage Rating: 230/460 VAC
• Amperage Rating: 1.06 A
• Phase: 3
• Speed: 1800 rpm
• Frame: 56C
• Shaft Size: 0.625 in Dia x 2.06 in L
• Service Factor: 1.15
• Enclosure Type: Totally Enclosed Fan Cooled
• Bearing Type: Ball
• Insulation Class: Class F
• Temperature Rating: 40 deg C
• Dimensions: 11-1/4 in L
