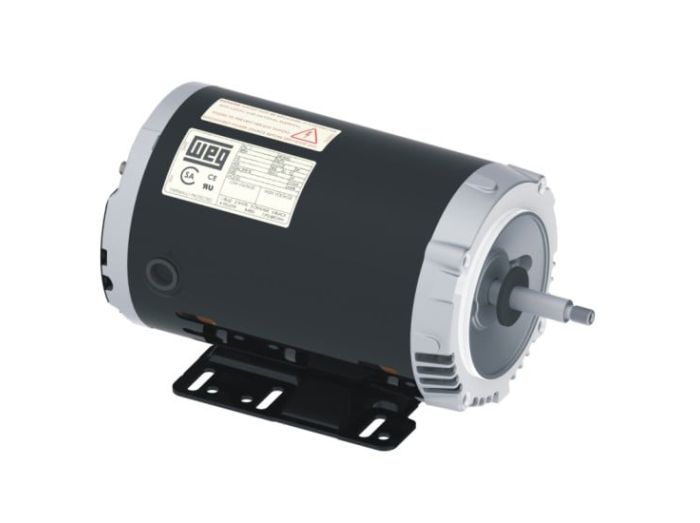

Weg .5036OS3EJP56J-S Motor, 0.50 HP, 3600 RPM, ODP, 56J FRAME

Product Description

The WEG .5036OS3EJP56J-S motor is a 0.50 HP, three-phase jet pump motor designed for commercial applications. It features a 56J frame, operates at 3600 RPM, and is designed with an ODP enclosure. This motor is suitable for use with 208-230/460 voltage systems. It offers the torque and durability needed for demanding environments.

• 5/8" Threaded output shaft
• Stainless steel shaft end
• C-Face mounting provisions with base

Product Highlights

Durable three-phase motor for jet pump applications. Features a stainless steel shaft end and is suitable for commercial use.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: .5036OS3EJP56J-S
• Country of Origin: Brazil

Technical Specifications

• HP [Specifications]: 0.5
• FRAME [Specifications]: 56J
• VOLTAGE [Specifications]: 208-230/460
• Nameplate RPM [Specifications]: 3600
• Full Load Amps [Specifications]: 0.9
• Overall Length [Specifications]: 10.827
• Nominal Efficiency [Specifications]: 68
• Motor Mounting Type [Specifications]: FOOT
• Motor Frame Material [Specifications]: ROLLED STEEL
• Motor Service Factor [Specifications]: 1.6
• Motor Enclosure Design [Specifications]: ODP
• Brand: WEG
• Application: Jet Pump
• Output HP: 1/2
• Output KW: 0.37
• Frame Size NEMA: 56J
• Mount NEMA: C Face With Base
• Enclosure NEMA: ODP
• Frequency (Hz): 60//50
• Manufacturer Part Number: .5036OS3EJP56J-S
• Manufacturer: WEG Electric
• Family Series: WEG Electric Motors
• Type: General Purpose
• Horsepower: 1/2 hp
• Speed: 3,600 RPM
• RPM: 3,600 RPM
• Phase: 3
• Frequency: 60 Hz
• NEMA Frame: 56J
• AC Voltage: 208 VAC
• Nominal Voltage: 208 VAC
• Mounting: Foot Mount
• Current Rating: 0.95 A
• Composition: Steel
• Voltage: 208-230/460//190-220/380-415
