Weg .5036OS1BJPRW56C-S 1/2HP 3500RPM W56C ODP 1PH Jet Pump Motor

Product Description

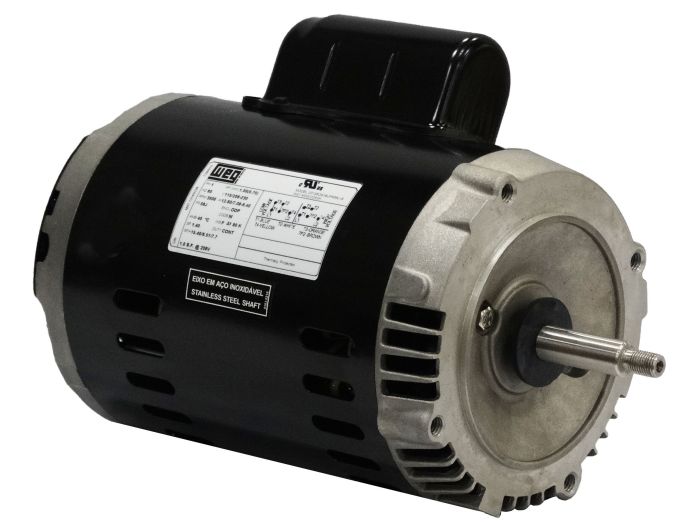

The WEG .5036OS1BJPRW56C-S 1/2HP Single Phase Jet Pump Motor provides the torque and durability for commercial applications, while remaining an economical choice for residential use. This motor is designed for jet pump applications and operates at 3500 RPM. It features a W56C NEMA frame and an ODP enclosure.

• Insulation class B
• Sealed ball bearings (Drive End)
• WEG component

Product Highlights

This WEG motor is ideal for jet pump applications requiring a durable and efficient single-phase motor.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: .5036OS1BJPRW56C-S
• Country of Origin: Brazil

Technical Specifications

• Application: Jet Pump
• Output HP: 1/2
• Output KW: 0.37
• Output RPM: 3500
• Frame NEMA: W56C
• Mount NEMA: C-Face No Base
• Enclosure NEMA: ODP
• Voltage: 115/208-230
• Frequency (Hz): 60
• Efficiency: 65.0
• Manufacturer Part Number: .5036OS1BJPRW56C-S
• Manufacturer: WEG Electric
• Family Series: WEG Electric Motors
• Description: 1/2Hp 3600 1 60 115/208-230V
• Type: General Purpose
• Speed: 3,600 RPM
• Phase: 1
• Mounting: Footless
• Current Rating: 3.3 A
• Composition: Steel
• Primary brand: WEG
• Order code / Manufacturer SKU: .5036OS1BJPRW56C-S
• Manufacturer product status: Commercialized
• UPC code: 7909322618142
• Manufacturer description: JET PUMP "JC" FRAME - KEYED SHAFT - MOTOR 0.5HP 2P W56C WCA2
• Location of origin: Brazil
