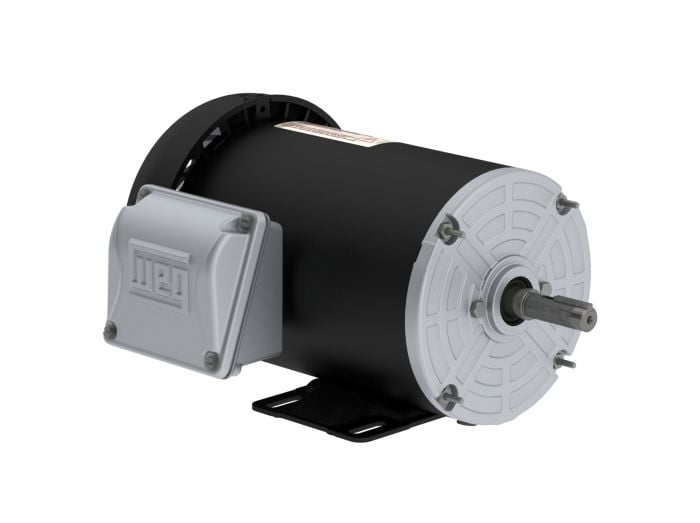

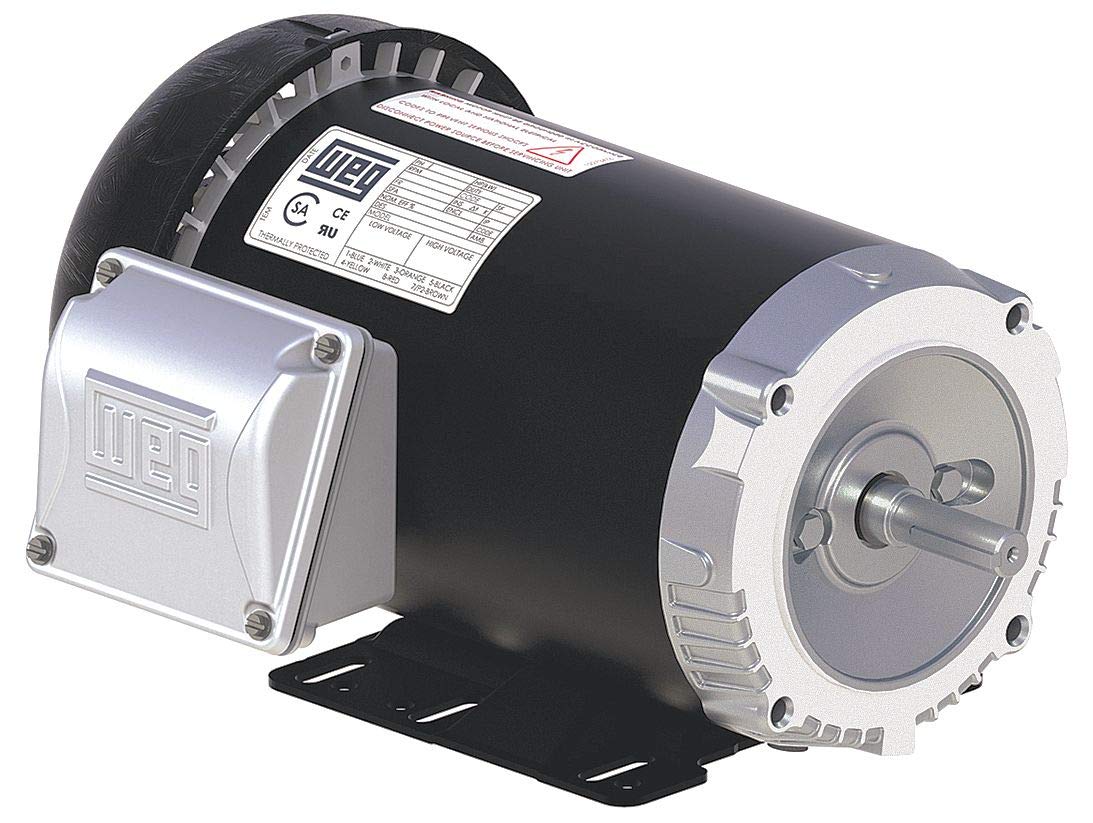

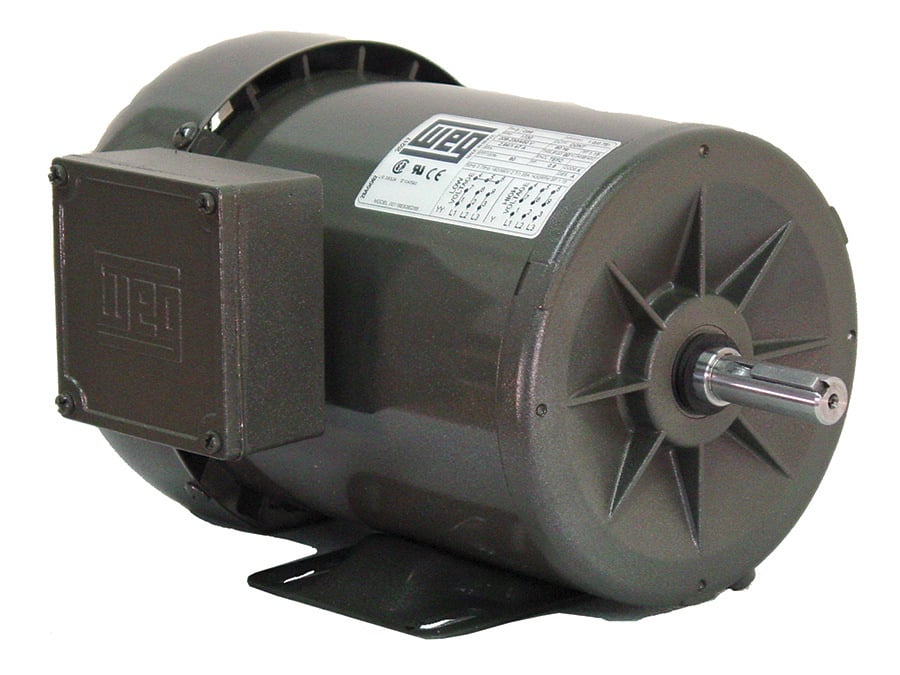

Weg .5036ES3E56-S tefc Standard Efficiency Fractional Electric Motor 1/2 hp 3-Phase 3500 rpm Frame 56

Product Description

The WEG .5036ES3E56-S TEFC Standard Efficiency Fractional Electric Motor is a 1/2 HP, 3-Phase motor with a speed of 3500 RPM and operates at 208-230/460 V, 50/60 Hz, within a Frame 56. It features a new ventilation system for improved thermal performance. Suitable for applications requiring robustness, low weight, and high performance, these motors offer easy installation and maintenance.

• Improved thermal performance with new ventilation system
• Easy wiring with color-coded/numbered leads
• IP55 Ingress Protection suitable for severe environments

Product Highlights

This WEG electric motor is ideal for general-purpose applications, offering durability and high starting torque for heavy loads.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: .5036ES3E56-S

Technical Specifications

• HP: 1/2
• Phase: 3-Phase
• RPM: 3500
• Voltage: 208-230/460 V
• Frequency: 50/60 Hz
• Frame: 56
• Output KW: 0.37
• Frame Size NEMA: 56
• Mount NEMA: With Base
• Enclosure NEMA: TEFC
• Enclosure IEC: IP55
• Application: General Purpose
• Frame Remarks: Footed
• Manufacturer Part Number: .5036ES3E56-S
• Manufacturer: WEG Electric
• Family Series: WEG Electric Motors
• Type: General Purpose
• Horsepower: 1/2 hp
• Speed: 3,600 RPM
• NEMA Frame: 56
• Enclosure: Totally Enclosed Fan Cooled
• Mounting: Foot Mount
• Current Rating: 0.84 A
• Service Factor: 1.15
• Composition: Steel
