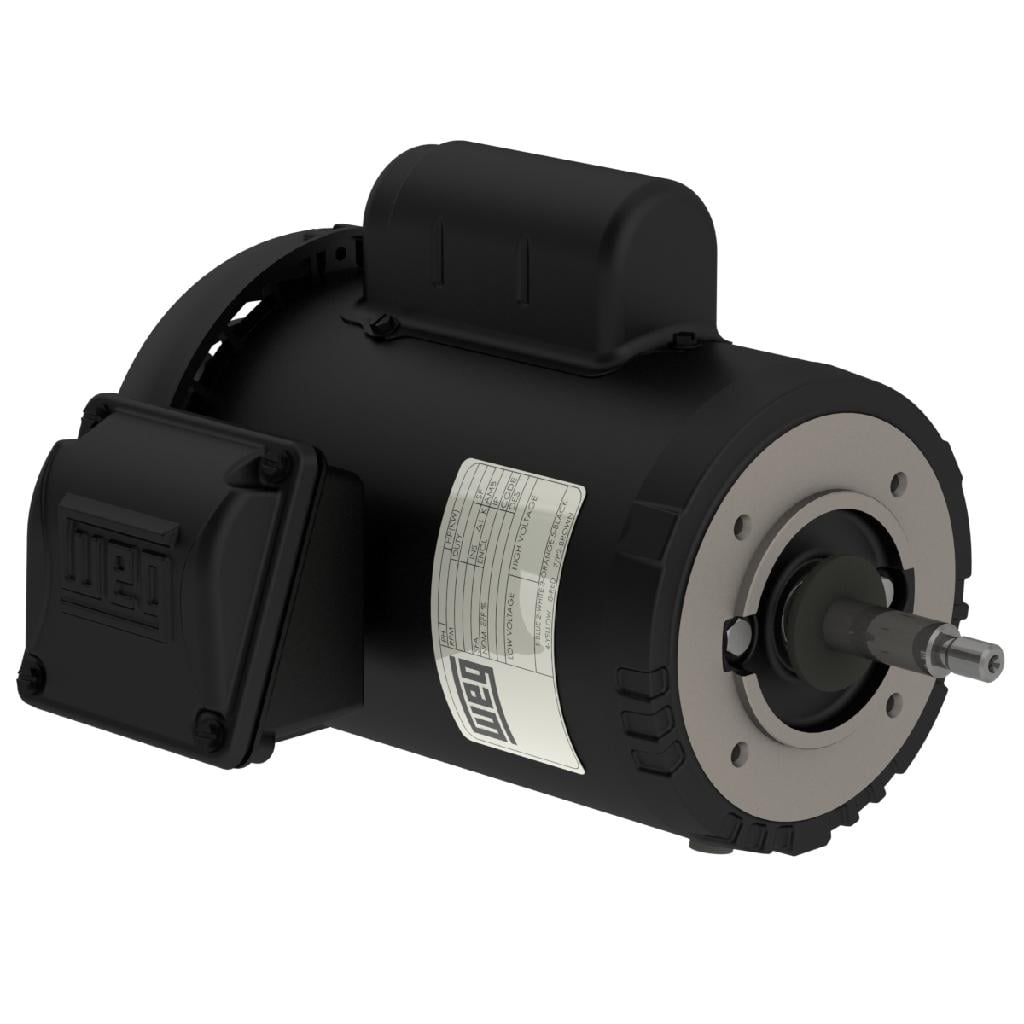

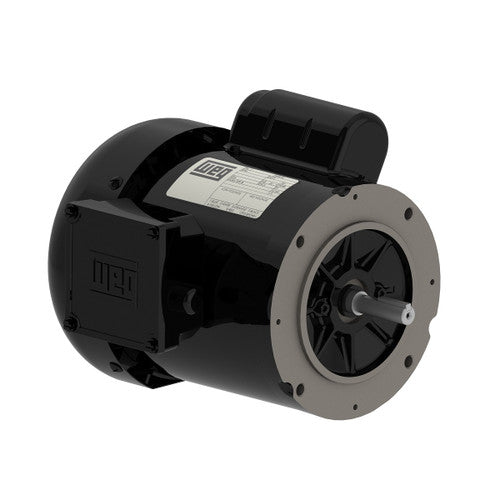

Weg .5036ES1BJPRW56J-S 1/2HP 3500RPM W56J TEFC 1PH Jet Pump Motor

Product Description

The WEG .5036ES1BJPRW56J-S 1/2HP Single Phase Jet Pump Motor has the torque and durability for commercial applications and is an economical choice for residential use. It features an IC411 - TEFC enclosure and is suitable for jet pump applications. Operates at 115/208-230V at 60 Hz.

• Insulation class B
• Sealed ball bearings (Drive End)
• Standard NEMA MG-1

Product Highlights

This WEG jet pump motor is designed for durability and efficiency in both commercial and residential settings.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: .5036ES1BJPRW56J-S

Technical Specifications

• Application: Jet Pump
• Output HP: 1/2
• Output KW: 0.37
• Output RPM: 3500
• Frame NEMA: W56J
• Mount NEMA: C-Face No Base
• Enclosure NEMA: IC411 - TEFC
• Enclosure IEC: IP55
• Voltage: 115/208-230 V
• Frequency (Hz): 60
• Standard: NEMA MG-1
• Number of poles: 2
• Degree of Protection: IP55
• Synchronous speed: 3600 rpm
• Mounting: F-1
• Flange: C
• Full Load Amp (FLA): 3.5
• Phase: 1
• Service Factor: 1.15
• Speed (RPM): 3600
• Motor Enclosure Type: TEFC - Totally Enclosed Fan Cooled
• Motor Frame Size: W56J
• Product Notes: Automatic Reset Thermal Overload Protector, Rolled Steel Frame - Cannot be modified with T Box on opposite side, Round Body - Drip Cover NOT Included
• Frame Type: W56J
• Mounting Type: Footless
• RPM: 3600
• HP: 0.50
• Enclosure: TEFC
• Frame: 56J
• Frame Remarks: Round Body
• Volts: 115/208-230
• Manufacturer: WEG
• Classification: JM-JP & Jet Pump
• Model: 13621384
