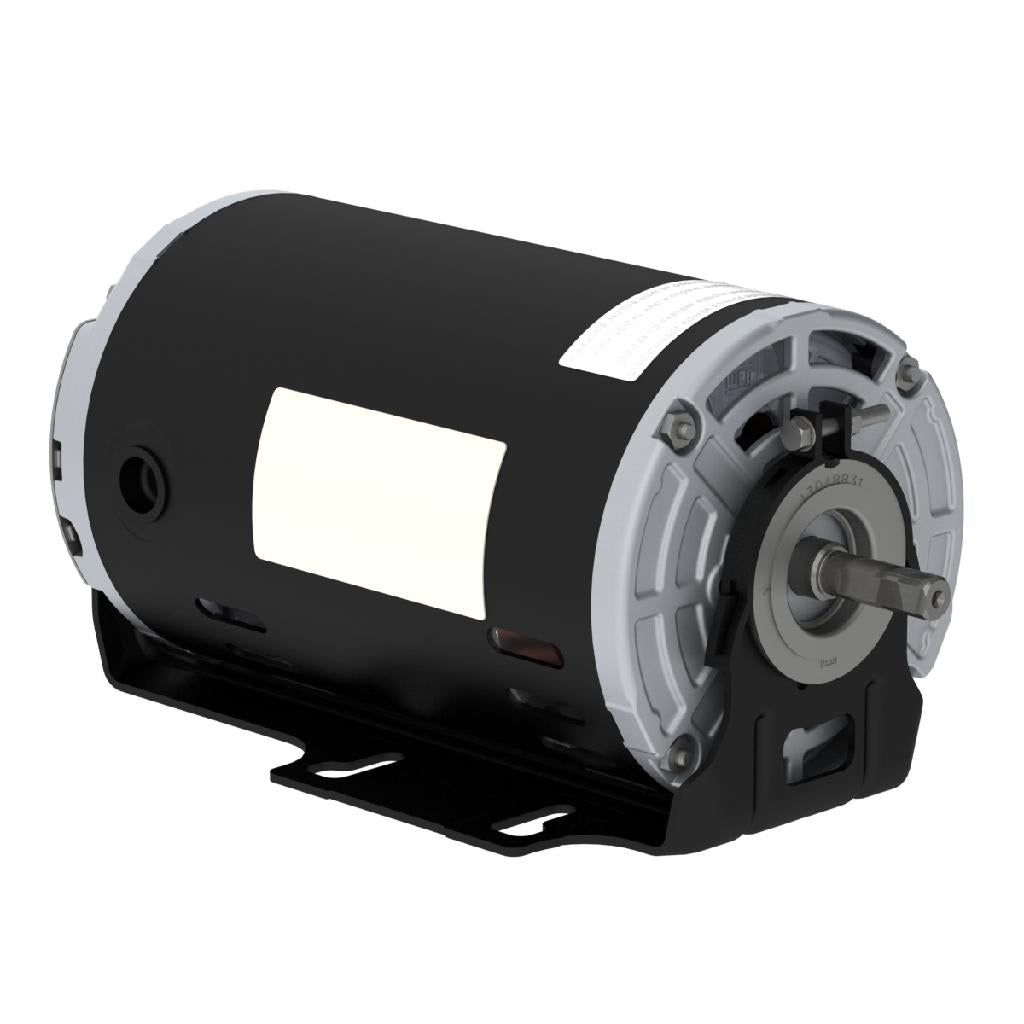

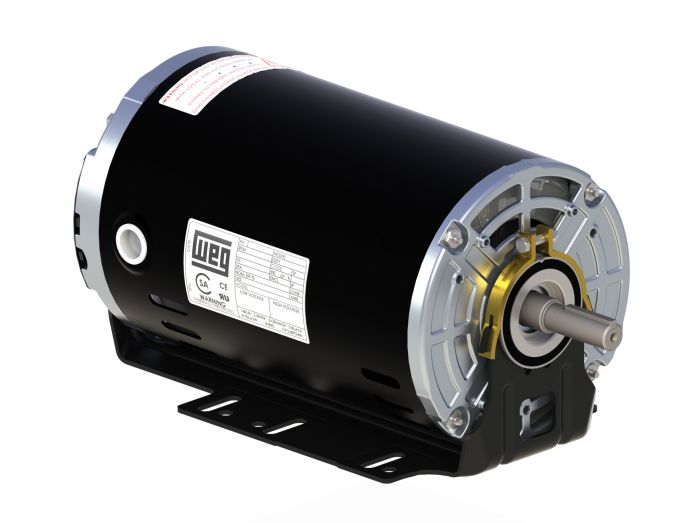

Weg .5018OT3ERB56-S Rolled Steel Premium Efficiency 0.5 HP 4P 56 3Ph Motor REPLACES .5018OS3ERBB56

Product Description

The WEG .5018OT3ERB56-S rolled steel motor is designed for applications requiring robustness and high performance. This 0.5 HP motor features good thermal performance and easy installation. It operates on 208-230/460//190-220/380-415 V voltage and is suitable for 60//50 Hz frequency. Commonly used in compressors, pumps, and chillers.

• NEMA MG-1 Standard
• Suitable for VFD operation as per NEMA MG1
• F1 mounting as standard

Product Highlights

This WEG motor is a 0.5 HP, 4-pole motor with a synchronous speed of 1800 rpm and an IC01 - ODP Enclosure.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: .5018OT3ERB56-S
• Country of Origin: Brazil

Technical Specifications

• Standard: NEMA MG-1
• Frequency: 60//50 Hz
• Voltage: 208-230/460//190-220/380-415 V
• Number of poles: 4
• Synchronous speed: 1800 rpm
• Output rating: 0.5 HP
• Enclosure: IC01 - ODP
• Application: General Purpose
• Output KW: 0.37
• Output RPM: 1765//1450
• Frame Size NEMA: 56
• Enclosure NEMA: ODP
• Enclosure IEC: IP21
• Manufacturer Part Number: .5018OT3ERB56-S
• Manufacturer: WEG Electric
• Family Series: WEG Electric Motors
• Type: General Purpose
• Horsepower: 1/2 hp
• Speed: 1,800 RPM
• Phase: 3
• AC Voltage: 208 VAC
• Nominal Voltage: 208 VAC
• Current Rating: 0.86 A
• Composition: Steel
• HP: 0.50
• Frame: 56
• Volts: 208-230/460*
• Classification: Three Phase
• Replaces: .5018OS3ERBB56
• Overall Length: 11.22
• Motor Mounting Type: FOOT
• Motor Service Factor: 1.25
• Full Load Amps: 0.86
• Nominal Efficiency: 78.2
• Motor Enclosure Design: ODP
• FRAME: 56
• VOLTAGE: 230/460V
