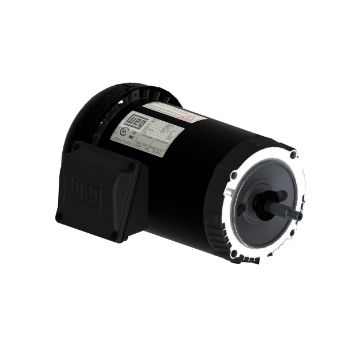

WEG .5018ES3E56CFL-S Continuous-Duty AC Motor 0.5 hp 208/230/460 VAC

Product Description

The WEG AC Motor, model .5018ES3E56CFL-S, is a robust continuous-duty motor designed for general-purpose applications. It offers a power output of 0.5 horsepower and operates on a voltage range of two hundred eight to four hundred sixty VAC, with a frequency of sixty hertz.

• Features a totally enclosed fan-cooled design.
• Operates at a speed of one thousand seven hundred sixty RPM.
• Includes a versatile C-face footless mounting option.

Product Highlights

This motor is suitable for a range of industrial applications. It effectively maintains performance in varied conditions from negative twenty to forty degrees Celsius.

Product Information

Standard Information

• Brand: WEG
• Manufacturer: WEG

Technical Specifications

• Horsepower: 0.5 hp
• Voltage Rating: 208/230/460 VAC
• Speed: 1760 RPM
• Phase: 3
• Frequency Rating: 60 Hz
• Service Factor: 1.15
• Enclosure Type: Totally Enclosed Fan Cooled
• Dimensions: 11.535 in L
• Rotation: CW/CCW
• Mounting Type: C-Face Footless
• Shaft Size: 5/8 in Dia x 1-7/8 in L
• Amperage Rating: 1.91 to 1.72/0.862 A
• Material: Rolled Steel
• Bearing Type: Ball
• Torque Rating: 1.47 ft-lb
• Insulation Class: Class F
• Frame: 56C
• Number of Speeds: 1
• Application Type: General Purpose AC Motors
