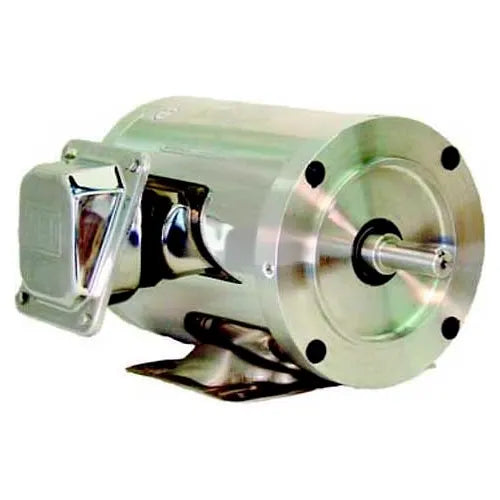

WEG 5018EP3ESS56CFL C-Face High Efficiency AC Motor 1/2 hp 208 to 230/460 VAC

Product Description

The WEG C-Face High Efficiency AC Motor, MPN 5018EP3ESS56CFL, is a powerful motor designed for various industrial applications. This motor operates at one half horsepower and is suitable for voltages of two hundred eight to two hundred thirty or four hundred sixty VAC. It provides a speed of one thousand eight hundred revolutions per minute.

• Totally enclosed fan cooled enclosure.
• Reversible rotation with a 1.149 service factor.
• Designed for applications requiring cleanliness and frequent washdowns.

Product Highlights

This motor is ideal for use in food processing and pharmaceutical environments. It is corrosion-resistant and features a stainless steel frame, ensuring durability in harsh conditions.

Product Information

Standard Information

• Brand: WEG
• Manufacturer: WEG ELECTRIC CORP

Technical Specifications

• MPN: 5018EP3ESS56CFL
• Frame: 56C
• Speed: 1800 rpm
• Horsepower: 1/2 hp
• Voltage Rating: 208 to 230/460 VAC
• Amperage Rating: 0.73 A
• Frequency Rating: 60 Hz
• Dimensions: 11.26 in L x 8.73 in W x 6.7 in H
• Mounting Type: Footless
• Enclosure Type: Totally Enclosed Fan Cooled
• Insulation Class: Class F
• Service Factor: 1.149
• Shaft Size: 5/8 in Dia x 3-1/2 in L
• Rotation: Reversible
• Temperature Rating: 40 deg C
• Bearing Type: Ball
• Constant Torque Speed Range: 0.251
• Variable Torque Speed Range: 0.417 ft-lb
• Standards: CE Marked, CSA Certified, UL Listed
