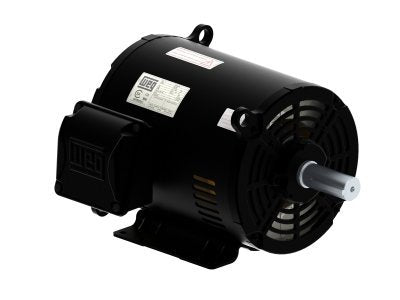

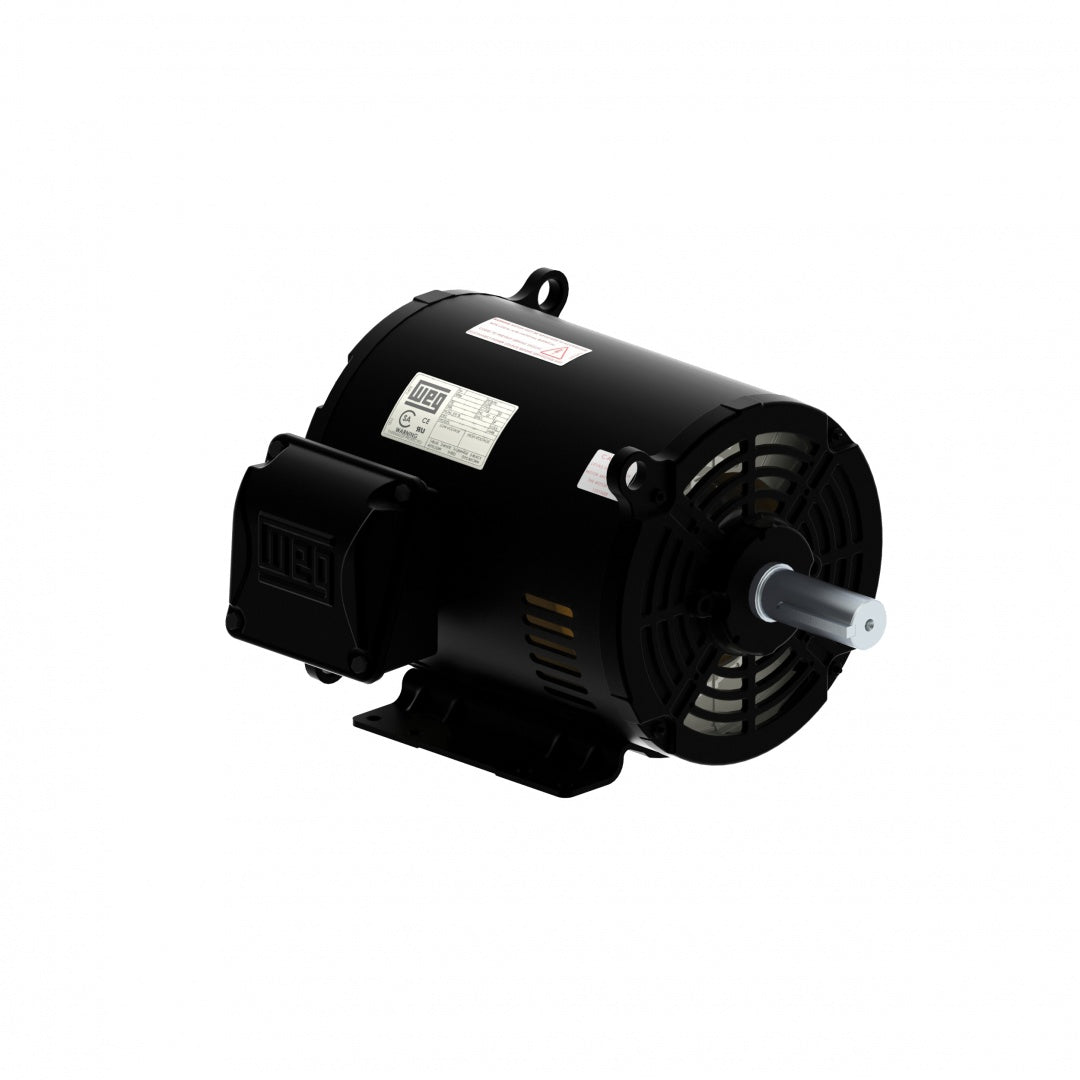

WEG .5012OT3E56-S MOTOR 0.5HP 6P 56 WCA2

Product Description

WEG .5012OT3E56-S is a general purpose electric motor providing reliable performance. This electric motor has a power rating of 0.5 horsepower and operates at a voltage of 208-230/460 VAC. It is ideal for various applications requiring consistent and efficient operation.

• UL and CSA certified
• NEMA Premium efficient with 3-phase capability
• Open drip-proof enclosure for enhanced safety

Product Highlights

This motor is suitable for continuous duty and designed for general purpose applications. It features a robust construction with rolled steel and is mounted with a footed design.

Product Information

Standard Information

• Manufacturer: WEG Electric Corp
• Model Number: .5012OT3E56-S

Technical Specifications

• Horsepower: 0.5 hp
• Amperage Rating: 2.06 to 1.87/0.934 A
• Frequency Rating: 60 Hz
• Speed: 1155 rpm
• Enclosure Type: Open Drip-Proof
• Frame Size: 56
• Mounting Type: Footed
• Service Factor: 1.25
• Dimensions: 10.709 inches long
• Shaft Size: 5/8 inches diameter x 1-7/8 inches long
• Rotation: CW/CCW
