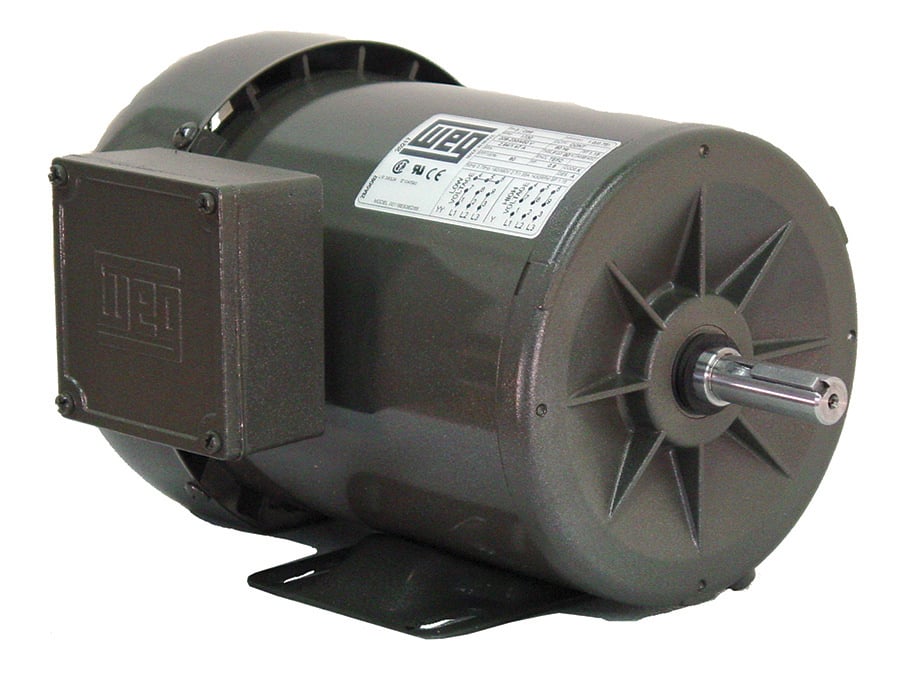

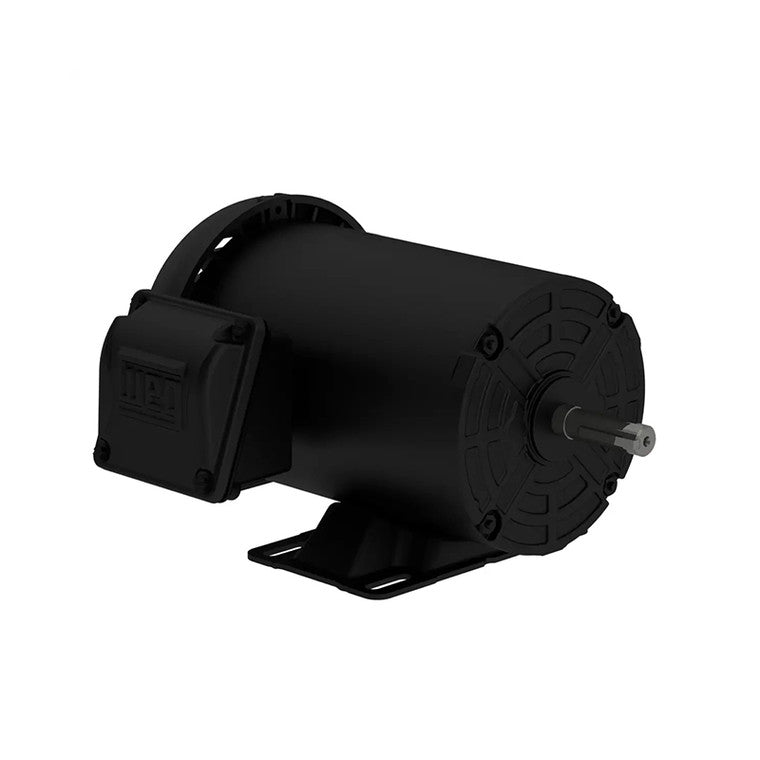

Weg .3336ES3E56-S 1/3HP 3485RPM 56 TEFC 3PH Motor

Product Description

The WEG .3336ES3E56-S is a 1/3HP Three Phase General Purpose Rolled Steel Motor, perfect for applications requiring robustness, low weight, and high performance. These motors offer good thermal performance and easy installation. With a steel plate frame and aluminum endshields, these motors provide torque and durability for severe applications.

• Suitable for VFD operation as per NEMA MG1
• Variable Torque: 1000:1
• Constant Torque: 2:1

Product Highlights

This WEG motor is designed for durability and high performance in demanding industrial and commercial environments.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: .3336ES3E56-S

Technical Specifications

• Brand: WEG
• Application: General Purpose
• Output HP: 0.33 HP
• Output KW: 0.25
• Output RPM: 3485
• Frame Size NEMA: 56
• Mount NEMA: With Base
• Enclosure NEMA: TEFC
• Enclosure IEC: IP55
• Voltage: 208-230/460//190-220/380-415
• Enclosure: Totally Enclosed Fan Cooled
• Frame: 56
• Hz: 60
• Phase: 3
• RPM: 3600
• Full Load Amps: 1.33-1.20/0.602 A
• Locked rotor current (II/In): 6.4
• Locked Rotor Torque: 250 %
• Break Down Torque: 300 %
• Efficiency (%) 50: 48.0
• Efficiency (%) 75: 57.5
• Efficiency (%) 100: 62.0
• Power factor (%) 50: 0.72
• Power factor (%) 75: 0.79
• Power factor (%) 100: 0.84
• Service Factor: 1.15
• Inertia: 0.03892 sq.ft.lb
• L.R. Time: 40 s
• Motor Phase: 3 ph
• Motor Horsepower: 1/3 hp
• Synchronous Rpm: 3600 rpm
• Motor Supply Voltage: 208-230/460 V
• Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
• Frequency Rating: 60 Hz
• Duty Condition Type: Continuous Duty
• Mounting Type: Foot
• Full Load Current: 0.60 A
• Full Load Efficiency: 62.00 %
• Volts @ Frequency: 208 V @ 60 Hz; 230 V @ 60 Hz; 460 V @ 60 Hz
• Description Keyword: 1/3 hp
• Overall Length C Dimension: 11.14 in
• Frame Material: Rolled Steel
• Insulation Class: F
• IP Rating: 55
• Standards Met: UL, CSA, CE
• Motor Category: General Purpose Motor
• Product Type: General Purpose Motors
• Model: .3336ES3E56-S
• Product Condition: New
• Motor Type: General Purpose
• Horsepower Rating: 0.33 HP
• Synchronous RPM: 3600 RPM
• Rated Supply Voltage: 208-230/460 V
• Motor Enclosure Type: Totally Enclosed Fan Cooled (TEFC)
• Rated Voltage: 208 V, 230 V, 460 V
• Rated Input Frequency: 60 Hz
• Motor Full Load Amps: 0.6 A
• HP: .33
• Volts: 208/230/460
• Manufacturer: WEG Electric
• Family Series: WEG Electric Motors
• Description: 1/3HP 3600 3 60 208-230/460, J2
• Type: General Purpose
• Horsepower: 1/3 hp
• Speed: 3,600 RPM
• NEMA Frame: 56
• AC Voltage: 208 VAC
• Nominal Voltage: 208 VAC
• Mounting: Foot Mount
• Current Rating: 0.6 A
• Composition: Steel
