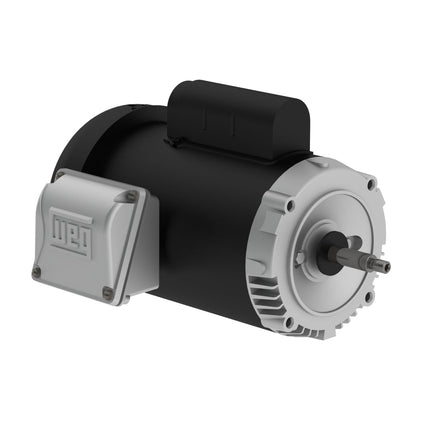

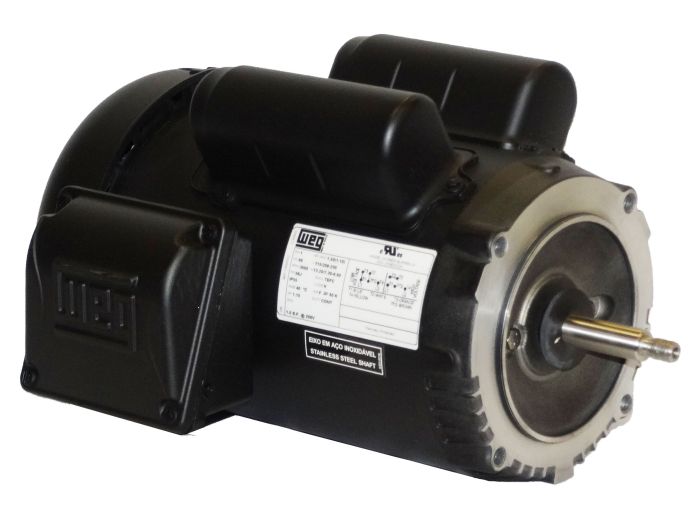

Weg .3336ES1BJPRW56J-S Motor, 0.33 HP, 3600 RPM, TEFC, W56J FRAME

Product Description

The WEG .3336ES1BJPRW56J-S motor delivers 0.33 HP at 3600 RPM within a TEFC W56J frame. Designed for versatile use, this motor provides the torque and durability required for commercial applications, while remaining an economical choice for residential settings. It operates at 115/208-230V and has a rolled steel construction.

• Versatile torque and durability for commercial applications
• Economical choice for residential applications
• Stainless steel shaft
• Automatic reset overload protector

Product Highlights

This WEG motor is suitable for jet pump applications, featuring a stainless steel shaft and automatic reset overload protector.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: .3336ES1BJPRW56J-S
• Country of Origin: Brazil

Technical Specifications

• HP [Specifications]: 0.33
• FRAME [Specifications]: W56J
• VOLTAGE [Specifications]: 115/208-230
• Nameplate RPM [Specifications]: 3600
• Full Load Amps [Specifications]: 2.6
• Overall Length [Specifications]: 11.606
• Nominal Efficiency [Specifications]: 54
• Motor Mounting Type [Specifications]: FOOTLESS
• Motor Frame Material [Specifications]: ROLLED STEEL
• Motor Service Factor [Specifications]: 1.15
• Motor Enclosure Design [Specifications]: TEFC
• Phase: 1
• Power: 0.33 HP
• Base RPM: 3600
• Frame: 56J
• Enclosure: TEFC
• Enclosure Rating: IP21
• Voltage: 115/208-230V
• Construction: Rolled Steel
• Manufacturer Part Number: .3336ES1BJPRW56J-S
• Manufacturer: WEG Electric
• Family Series: WEG Electric Motors
• Description: 1/3Hp 3600 1 60 115/208-230V
• Horsepower: 1/3 hp
• Speed: 3,600 RPM
• Frequency: 60 Hz
• NEMA Frame: W56J
• AC Voltage: 120 VAC
• Nominal Voltage: 120 VAC
• Mounting: Footless
• Current Rating: 2.6 A
• Composition: Steel
