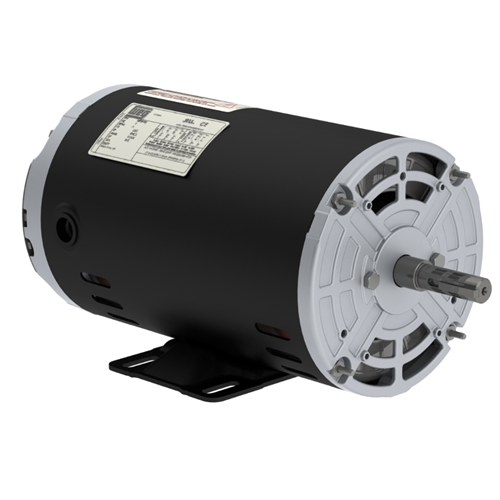

Weg .3318OT3E56-S 1/3HP 1765RPM 56 ODP 3PH Motor

Product Description

The WEG .3318OT3E56-S is a 1/3HP Three Phase General Purpose Rolled Steel Motor, designed for environments where dirt and moisture are minimal. This motor is widely used in applications such as compressors, pumps, and chillers. The ODP motor line meets or exceeds the efficiency levels determined by International Standards.

• NEMA Premium efficiency rating
• Suitable for VFD operation as per NEMA MG1
• 5/8" Keyed output shaft

Product Highlights

This WEG motor features a robust foot design, oversized terminal box, and color-coded leads for easy wiring. It is ideal for general-purpose applications requiring a reliable and efficient motor.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: .3318OT3E56-S

Technical Specifications

• Brand: WEG
• Application: General Purpose
• Output HP: 1/3
• Output KW: 0.25
• Output RPM: 1765
• Frame Size NEMA: 56
• Mount NEMA: With Base
• Enclosure NEMA: ODP
• Enclosure IEC: IP21
• Voltage: 208-230/460//190-220/380-415
• Mounting Design: Foot Mount
