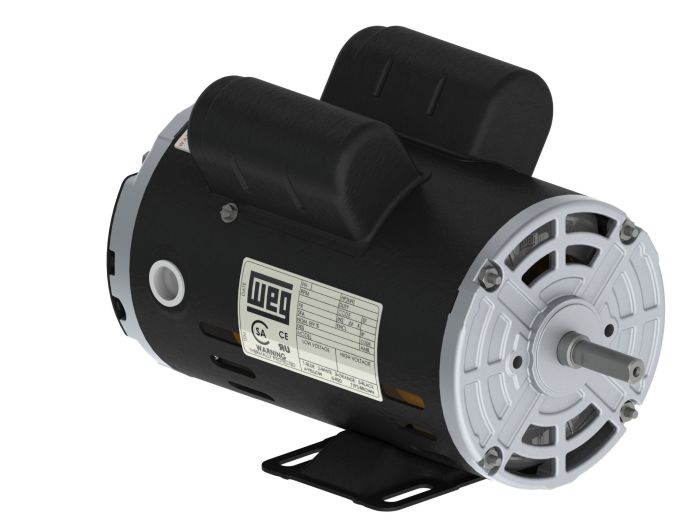

Weg .3318OT1BW56-S Motor, 0.33 HP, 1800 RPM, W56 Frame

Product Description

The WEG .3318OT1BW56-S motor is a 0.33 HP motor with a speed of 1800 RPM. This single-phase ODP motor is suitable for applications requiring robustness, low weight, and high performance. These rolled steel motors offer good thermal performance and easy installation and maintenance, and are well suited for heavy starting loads.

• Ball bearings
• Class F insulation
• V-ring seals
• NPT Threaded holes in terminal box

Product Highlights

WEG's .3318OT1BW56-S motor is ideal for general purpose applications needing a robust and efficient motor.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: .3318OT1BW56-S
• Country of Origin: Brazil

Technical Specifications

• HP [Specifications]: 0.33
• FRAME [Specifications]: W56
• VOLTAGE [Specifications]: 115/208-230
• Nameplate RPM [Specifications]: 1800
• Frame Material [Specifications]: ROLLED STEEL
• Full Load Amps [Specifications]: 2.1
• Overall Length [Specifications]: 10.26
• Nominal Efficiency [Specifications]: 72.4
• Motor Mounting Type [Specifications]: FOOT
• Motor Service Factor [Specifications]: 1.35
• Motor Enclosure Design [Specifications]: ODP
• Application: General Purpose
• Output HP: 1/3
• Output KW: 0.25
• Output RPM: 1745
• Mount NEMA: Base Mount
• Enclosure NEMA: IC01 - ODP
• Frequency (Hz): 60
• Efficiency: 72.4
• Manufacturer Part Number: .3318OT1BW56-S
• Manufacturer: WEG Electric
• Family Series: WEG Electric Motors
• Description: 1/3HP 1800 1 60 115/208-230V, J2
• Type: General Purpose
• Horsepower: 1/3 hp
• Speed: 1,800 RPM
• RPM: 1,800 RPM
• Phase: 1
• Frequency: 60 Hz
• NEMA Frame: W56
• AC Voltage: 120 VAC
• Nominal Voltage: 120 VAC
• Mounting: Foot Mount
• Current Rating: 2.1 A
• Composition: Steel
