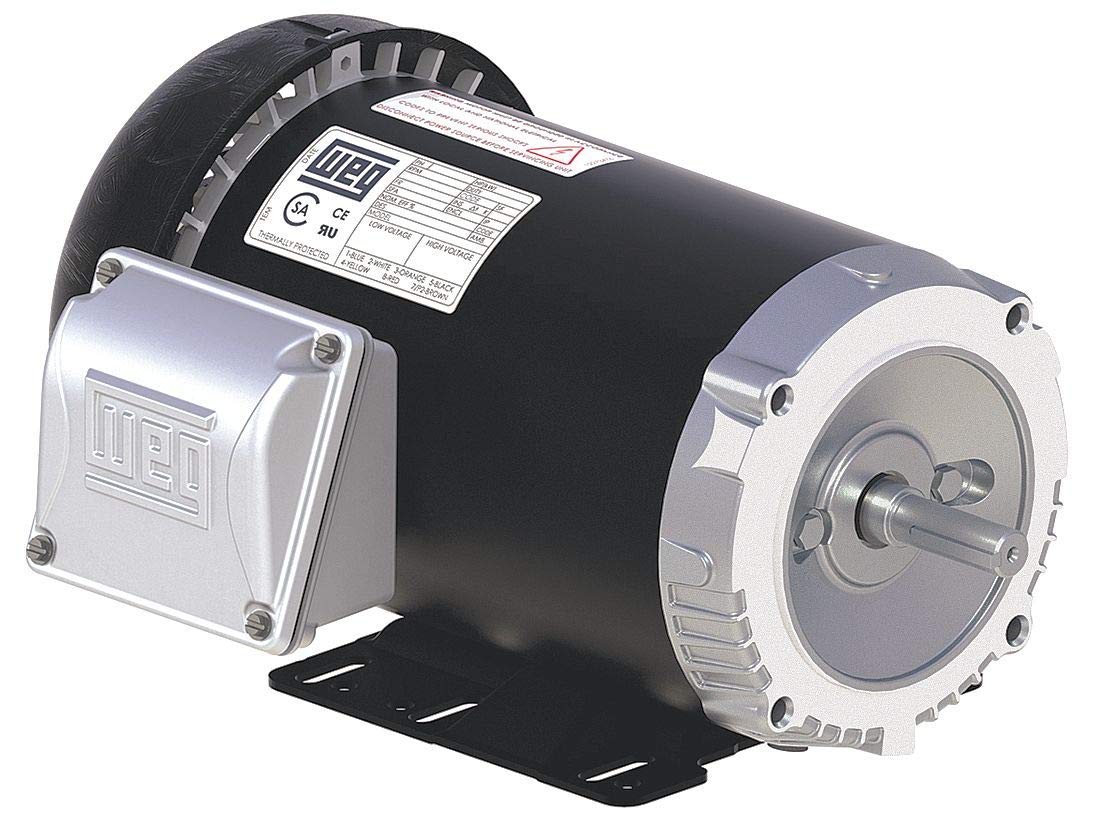

Weg .3318ES3E56C-S tefc Standard Efficiency Fractional Electric Motor, 1/3 hp, 1765 rpm, frame 56c

Product Description

The WEG .3318ES3E56C-S TEFC Standard Efficiency Fractional Electric Motor is a 1/3 HP, 3-Phase motor operating at 1765 RPM with a voltage of 208-230/460 V and 50/60 Hz frequency. It features a Frame 56C and is designed for general-purpose applications requiring robustness and high performance. The motor has good thermal performance and easy installation and maintenance.

• Improved thermal performance with new ventilation system
• Easy wiring with color-coded/numbered leads
• IP55 Ingress Protection suitable for severe environments

Product Highlights

This WEG electric motor is ideal for applications needing a robust, efficient, and easily maintainable power source. It offers reliable performance in demanding conditions.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: .3318ES3E56C-S

Technical Specifications

• HP: 1/3
• Phase: 3-Phase
• RPM: 1765
• Voltage: 208-230/460 V
• Frequency: 50/60 Hz
• Frame: 56C
• Application: General Purpose
• Output KW: 0.25
• Frame Size NEMA: 56C
• Mount NEMA: C Face With Base
• Enclosure NEMA: TEFC
• Enclosure IEC: IP55
• Horsepower: 0.33 hp
• Torque Rating: 0.969 ft-lb
• Number of Speeds: 1
• Material: Rolled Steel
• Amperage Rating: 1.38 to 1.25/0.624 A
• Type: Continuous-Duty
• Shaft Size: 5/8 in Dia x 1-7/8 in L
• Insulation Class: Class F
• Bearing Type: Ball
• Temperature Rating: -20 to 40 deg C
• Service Factor: 1.15
• Rotation: CW/CCW
• Application Type: General Purpose AC Motors
• Speed: 1765 rpm
• Mounting Type: C-Face Footed
