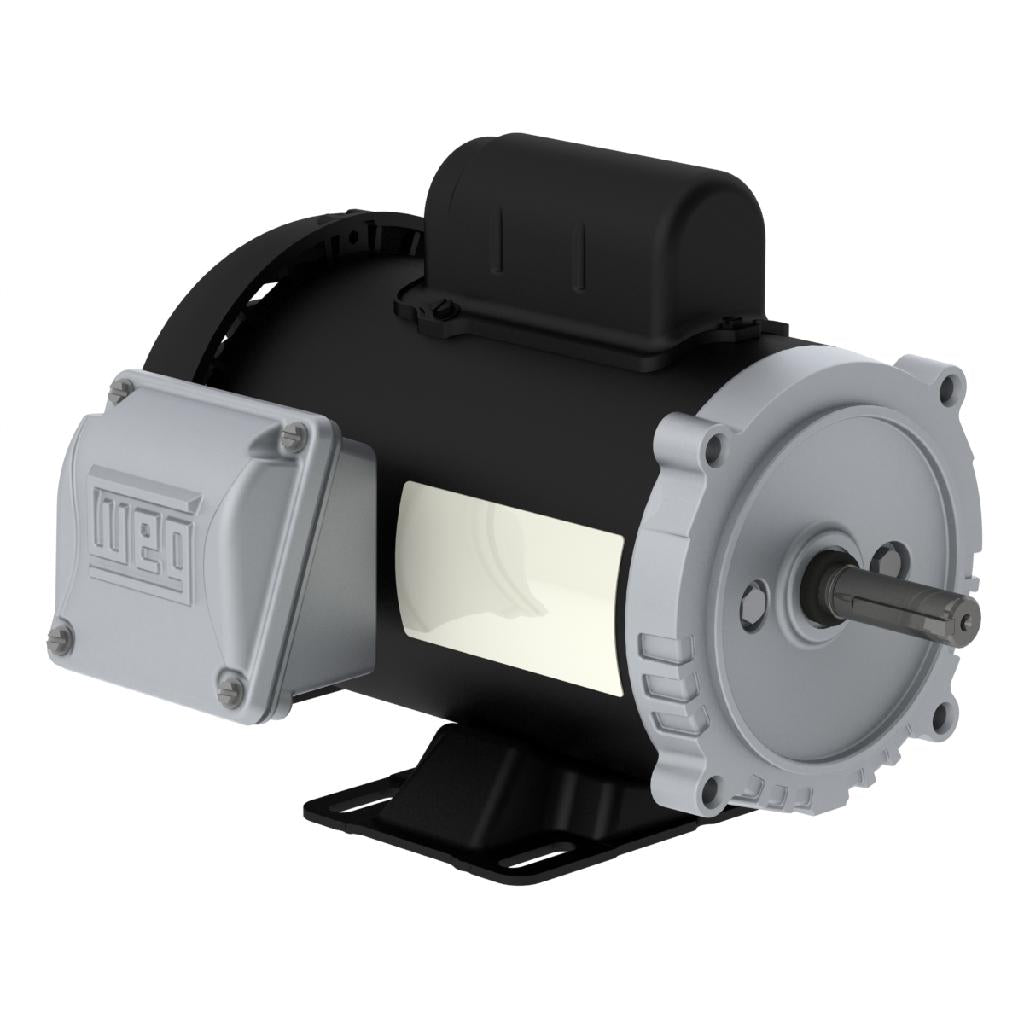

Weg .3318ES1BW56C-S Motor, 0.33 HP, 1800 RPM, TEFC, W56C FRAME, 115/208-230 VOLTS

Product Description

The WEG .3318ES1BW56C-S motor is a 0.33 HP motor with a speed of 1800 RPM. This TEFC motor features a W56C frame and operates on 115/208-230 volts. Designed for robustness, low weight, and high performance, this rolled steel motor offers good thermal performance and easy installation, making it suitable for heavy starting loads and general purpose applications.

• Features ball bearings and class F insulation.
• Designed with a new ventilation system for improved thermal performance.
• IP55 Ingress Protection for severe environments.

Product Highlights

This WEG motor is ideal for applications requiring a reliable and efficient motor in demanding conditions.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: .3318ES1BW56C-S
• Country of Origin: Brazil

Technical Specifications

• HP: 0.33
• FRAME: W56C
• VOLTAGE: 115/208-230
• Nameplate RPM: 1800
• Frame Material: ROLLED STEEL
• Full Load Amps: 3
• Overall Length: 11.5
• Nominal Efficiency: 61
• Motor Mounting Type: FOOT
• Motor Service Factor: 1.15
• Motor Enclosure Design: TEFC
• Application: General Purpose
• Output KW: 0.25
• Output RPM: 1735
• Frame NEMA: W56C
• Mount NEMA: C-Face With Base
• Enclosure NEMA: IC411 - TEFC
• Enclosure IEC: IP55
• Frequency (Hz): 60
• Frame Remarks: Footed
• Phase: 1
• Manufacturer: WEG
• Classification: Single Phase
• Model: 13624906
• Replaces: .3318ES1BB56C
• Motor Phase: 1 ph
• Motor Horsepower: 1/3 hp
• Synchronous Rpm: 1800 rpm
• Motor Supply Voltage: 115/208-230 V
• Frame Size: W56C
• Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
• Motor Category: General Purpose Motor
• Product Type: General Purpose Motors
