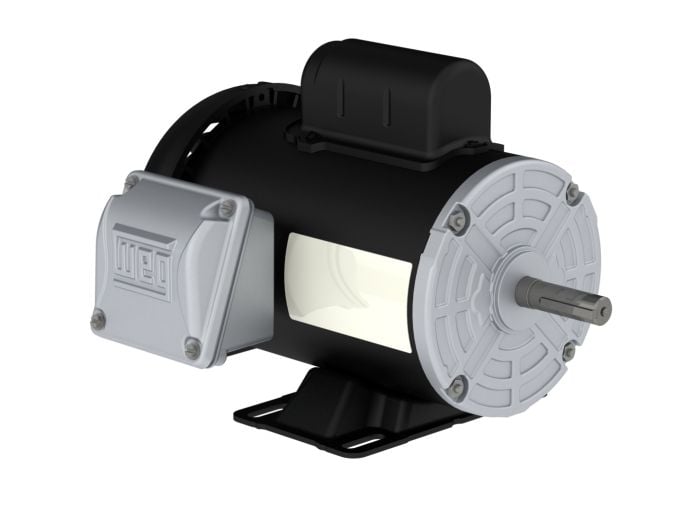

Weg .3318ES1BW56-S Motor, 0.33 HP, 1800 RPM, TEFC, W56 Frame

Product Description

The WEG .3318ES1BW56-S motor is a 0.33 HP motor with a speed of 1800 RPM and a W56 frame. This single-phase TEFC motor is suitable for applications requiring robustness and high performance. It features rolled steel construction, good thermal performance, and easy installation. Well-suited for heavy starting loads due to its high starting torque.

• Ball bearings
• Class F insulation
• V-ring seals

Product Highlights

This WEG motor offers reliable performance for general-purpose applications, featuring a TEFC enclosure and rolled steel construction.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: .3318ES1BW56-S
• Country of Origin: Brazil

Technical Specifications

• HP [Specifications]: 0.33
• FRAME [Specifications]: W56
• VOLTAGE [Specifications]: 115/208-230
• Nameplate RPM [Specifications]: 1800
• Frame Material [Specifications]: ROLLED STEEL
• Full Load Amps [Specifications]: 3
• Overall Length [Specifications]: 11.5
• Nominal Efficiency [Specifications]: 61
• Motor Mounting Type [Specifications]: FOOT
• Motor Service Factor [Specifications]: 1.15
• Motor Enclosure Design [Specifications]: TEFC
• Application: General Purpose
• Output HP: 1/3
• Output KW: 0.25
• Output RPM: 1735
• Frame NEMA: W56
• Mount NEMA: Base Mount
• Enclosure NEMA: IC411 - TEFC
• Enclosure IEC: IP55
• Frequency (Hz): 60
• Manufacturer Part Number: .3318ES1BW56-S
• Manufacturer: WEG Electric
• Family Series: WEG Electric Motors
• Description: 1/3HP 1800 1 60 115/208-230V, J2
• Type: General Purpose
• Horsepower: 1/3 hp
• Speed: 1,800 RPM
• RPM: 1,800 RPM
• Phase: 1
• Frequency: 60 Hz
• NEMA Frame: W56
• AC Voltage: 120 VAC
• Nominal Voltage: 120 VAC
• Enclosure: Totally Enclosed Fan Cooled
• Mounting: Foot Mount
• Current Rating: 3 A
• Composition: Steel
• Input Voltage: 115/208-230
• Output Power: 0.33 hp
• Mounting Type: Foot
