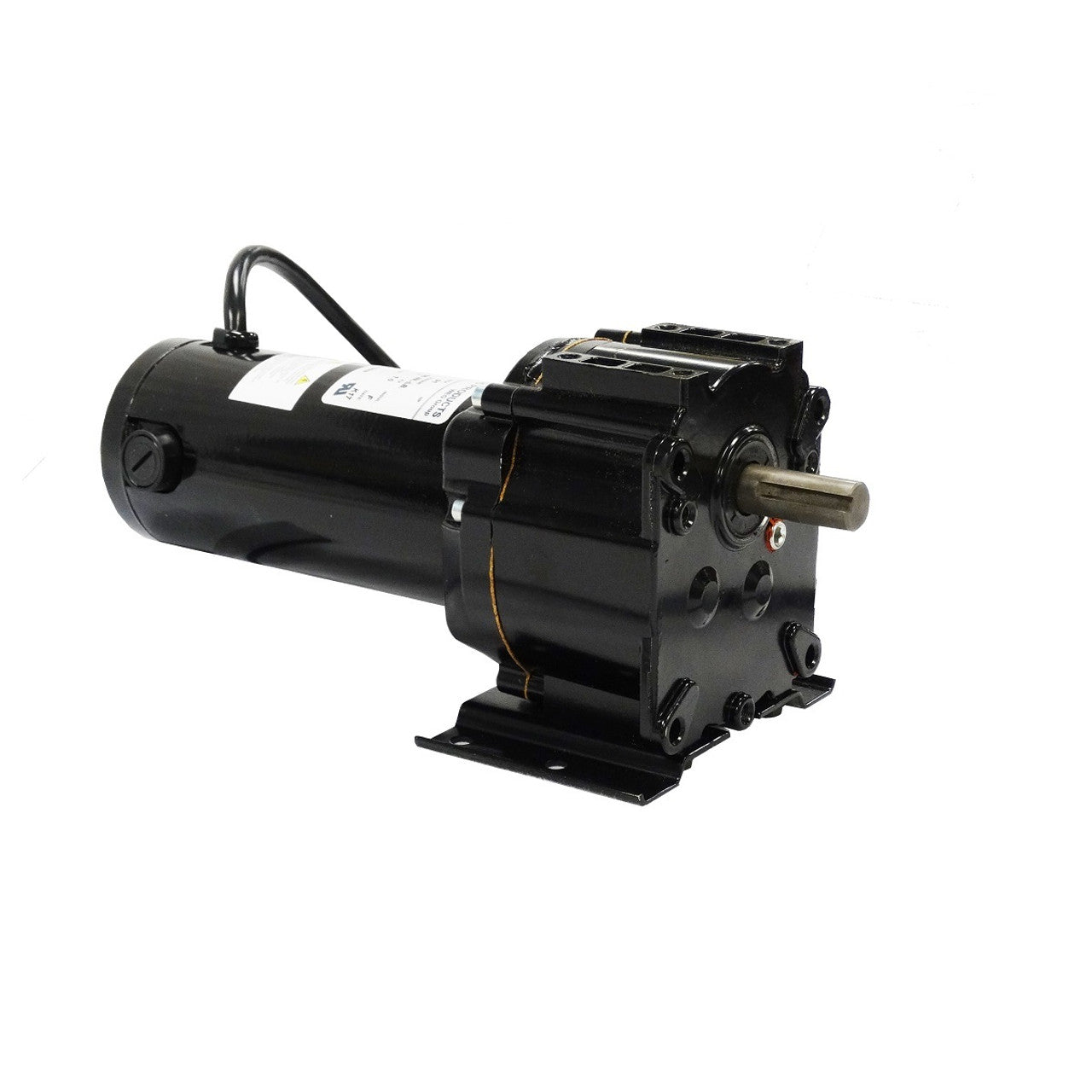

WEG 3130-367 Parallel Shaft Gearmotor

Product Description

The WEG 3130-367 is a parallel shaft gearmotor designed for efficient operation. This unit operates on ninety volts direct current and delivers one-eighth horsepower at three hundred sixty-four revolutions per minute. The gearbox, belonging to the GIL200 series, meets AGMA standards, ensuring reliability and durability.

• Operates on ninety volts DC
• Delivers twenty-one inch-pounds of output torque
• Features a five to one gear ratio

Product Highlights

This gearmotor is suitable for various applications in different environments due to its robust design and IP55 enclosure rating. The motor contains externally replaceable brushes, allowing for easy maintenance.

Product Information

Standard Information

• Brand: WEG
• MPN: 3130-367

Technical Specifications

• Motor Style: Parallel Shaft
• Horsepower: 1/8 HP
• Output RPM: 364 RPM
• Input Voltage: 90V DC
• Output Torque: 21 inch-pounds
• Full Load Amperage: 1.55 FLA
• Shaft Dimensions: 5/8 x 1.5 inch, keyed
• Gear Ratio: 5:1
• Enclosure Rating: IP55
• Enclosure Type: TENV
• Electrical Type: PMDC
• Insulation Class: Class F
