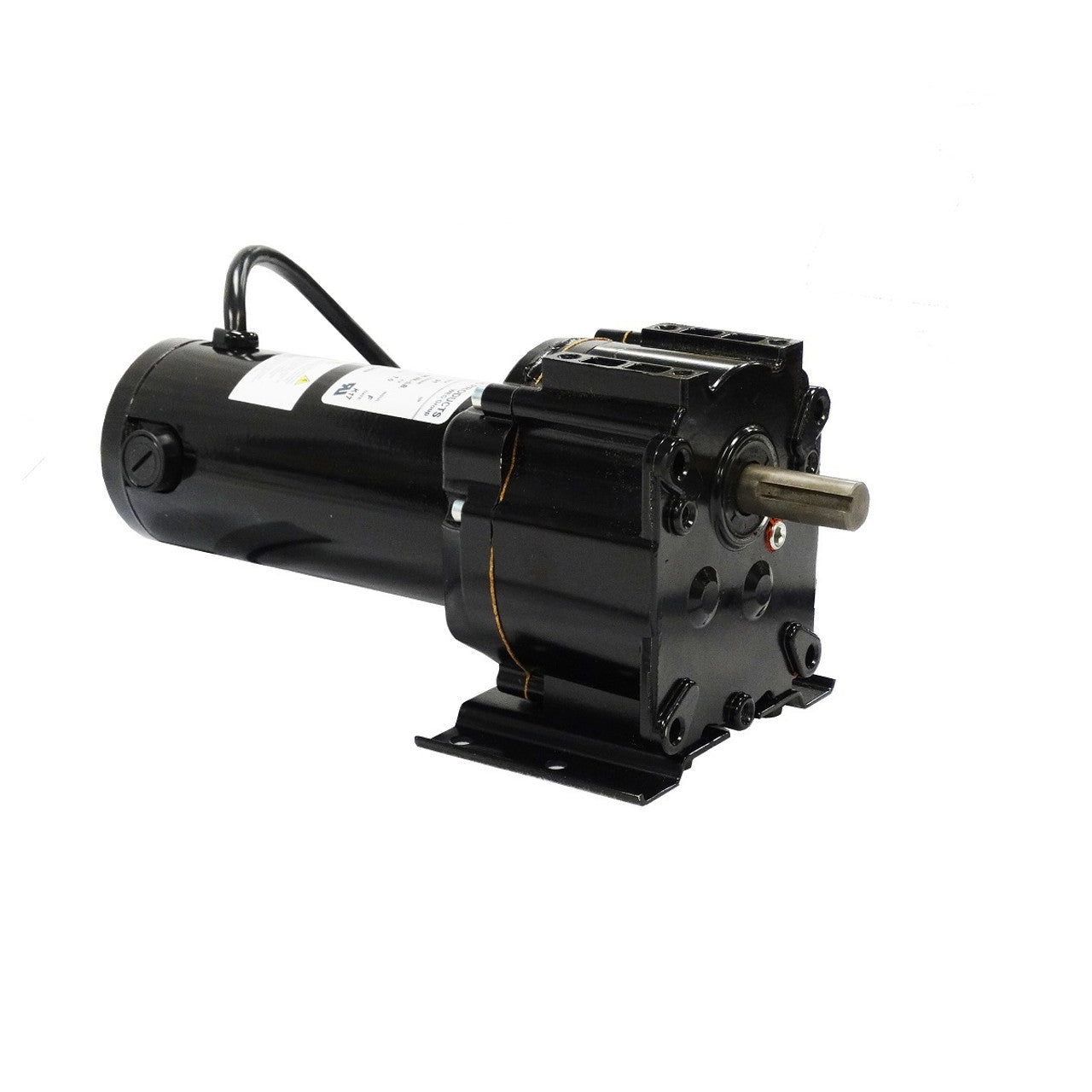

WEG 3130-366 DC Parallel Shaft Gearmotor 90VDC 1/8 HP

Product Description

The WEG 3130-366 is a DC parallel shaft gearmotor. It operates at ninety volts DC and provides one-eighth horsepower. This gearmotor is ideal for tasks requiring specific torque and RPM output. Its design includes a diecast parallel shaft and meets IP55 enclosure standards. It guarantees durability in demanding settings and operates under AGMA standards. This unit uses a GIL200 Series Gearbox, which ensures efficiency in power transmission.

• Operating Voltage: 90 VDC
• Output Speed: 165 RPM with an 11:1 gear ratio
• Torque Output: 47 inch-pounds

Product Highlights

This gearmotor suits various applications, from industrial equipment to automation tasks. Its compact design allows for easy integration into machines requiring high torque at low speeds.

Product Information

Standard Information

• Manufacturer Part Number: 3130-366
• Horsepower: 1/8 HP

Technical Specifications

• Voltage: 90 VDC
• Output Current: 1.57 Amps
• Output RPM: 165 RPM
• Gear Ratio: 11:1
• Output Torque: 47 inch-pounds
• Shaft Dimensions: 5/8 x 1.5 inch, keyed
• Enclosure Rating: IP55
