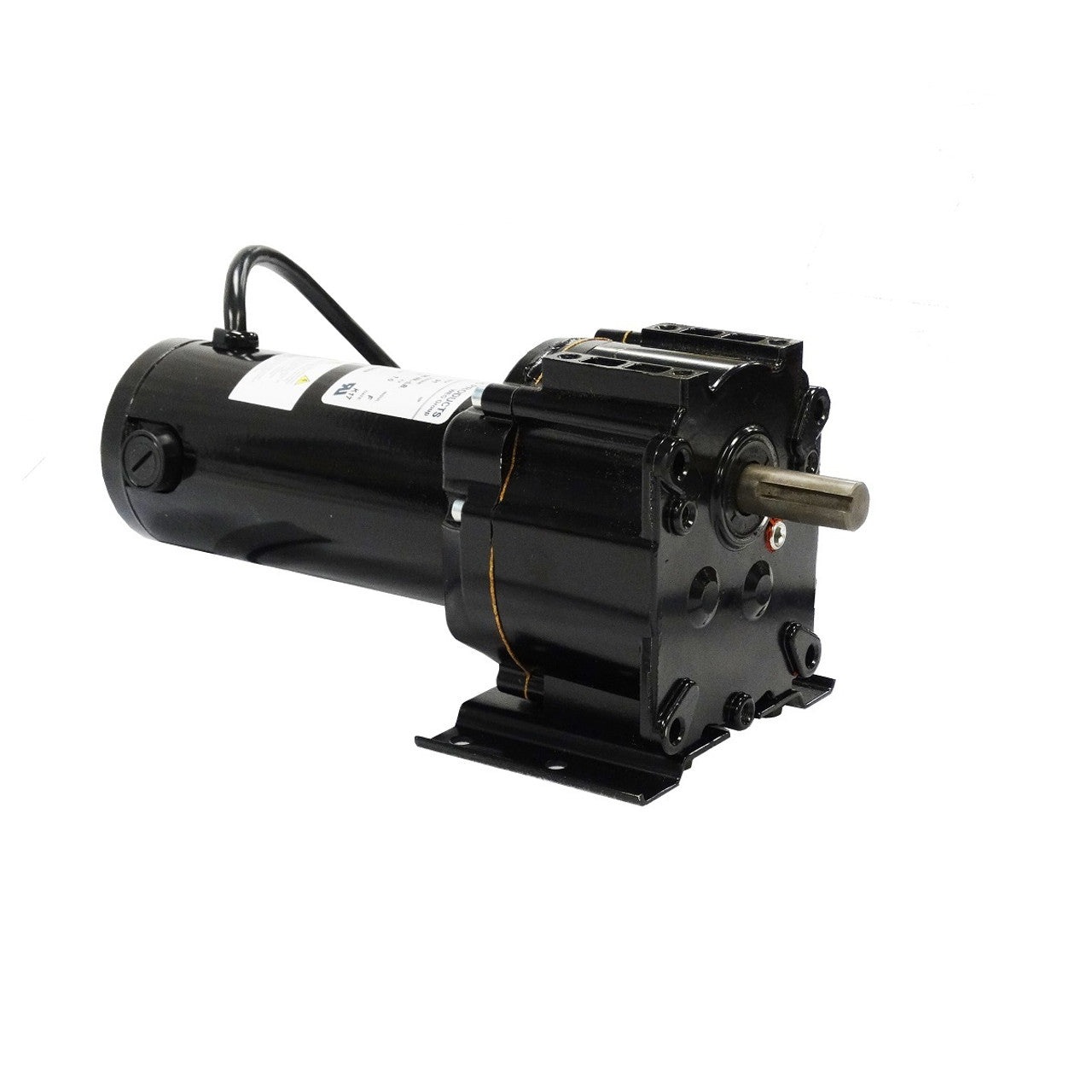

WEG 3130-364 PMDC Gearmotor 90VDC 1/8 HP 30:1

Product Description

The WEG 3130-364 is a PMDC gearmotor designed for efficient operation in various applications. It operates on ninety volts direct current and provides an output of one eighth horsepower. The gearmotor has a thirty to one gear ratio, producing a speed of sixty-one revolutions per minute, and generates one hundred thirteen inch-pounds of torque. It is equipped with a parallel shaft design and has an IP55 enclosure rating for protection against dust and water.

• Parallel shaft design for effective torque transmission
• Enclosure rated IP55 for durability in various environments
• 30:1 gear ratio for optimized performance

Product Highlights

This gearmotor is suitable for applications requiring a balance of power and speed. Its robust design makes it ideal for machinery requiring consistent performance.

Product Information

Standard Information

• Manufacturer: WEG
• MPN: 3130-364

Technical Specifications

• Voltage: 90VDC
• Horsepower: 1/8 HP
• Output Current: 1.42 Amps
• Output RPM: 61 RPM
• Gear Ratio: 30:1
• Output Torque: 113 inch-pounds
• Shaft Size: 5/8 x 1.5 inch, keyed
• Enclosure Rating: IP55
