WEG 3130-361 PMDC Gearmotor 1/8 HP 90VDC 69:1 Gear Ratio

Product Description

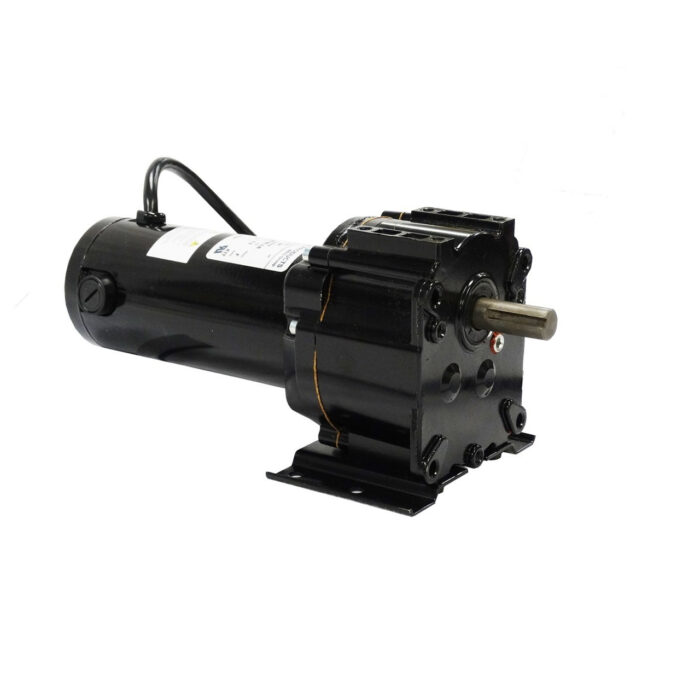

The WEG 3130-361 is a PMDC gearmotor that runs on 90VDC. It provides a power output of one-eighth horsepower and operates at a speed of twenty-six revolutions per minute. The motor features a keyed shaft measuring five-eighths by one-point two-five inches and has a gear ratio of sixty-nine to one. This gearmotor is designed in a parallel shaft configuration, making it suitable for applications that require reversible rotation.

• Operates at ninety volts direct current.
• Output speed of twenty-six revolutions per minute.
• Keyed shaft for secure attachment.

Product Highlights

This gearmotor is ideal for various applications where controlled speed and torque are necessary.

Product Information

Standard Information

• Brand: WEG
• MPN: 3130-361

Technical Specifications

• Voltage: 90VDC
• Horsepower: 1/8 HP
• Output RPM: 26
• Output Torque: 280 inch-pounds
• Shaft Size: 5/8 x 1.25 inches (keyed)
• Gear Ratio: 69:1
• Enclosure Rating: IP55
• Material: Steel
• Insulation Class: F
• Cord Length: 36 inches
• Electrical Type: PMDC
• Product Type: PMDC Motor
• Rotation: Reversible
• Full Load Amperage: 1.50
• Shaft Type: Keyed
