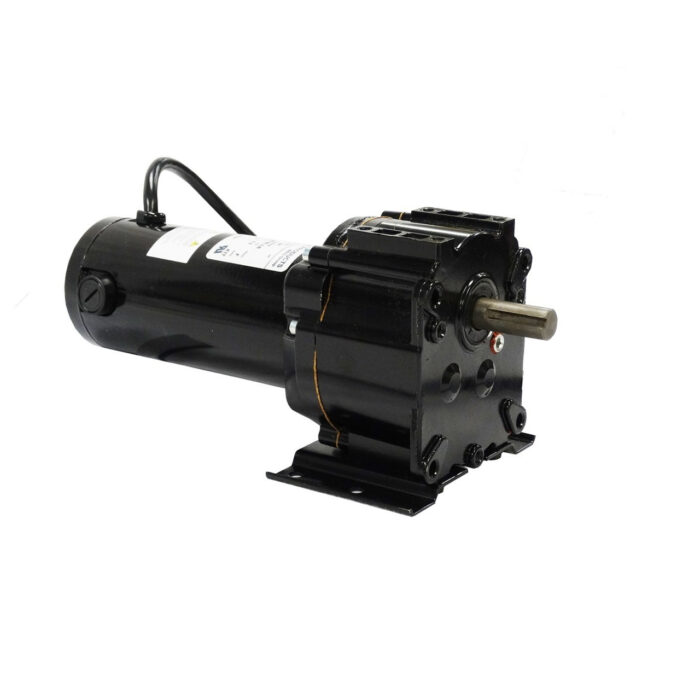

WEG 3130-305 DC Gearmotor 12 VDC 1/6 HP

Product Description

The WEG 3130-305 is a PMDC gearmotor suitable for a variety of applications. It operates on twelve volts direct current and delivers one-sixth horsepower. The gearmotor features a totally enclosed non-ventilated (TENV) steel casing and has a gear ratio of nineteen to one, resulting in an output torque of one hundred thirty-five inch-pounds at ninety-four revolutions per minute.

• Voltage: 12 VDC
• Horsepower: 1/6 HP
• Output Torque: 135 in-lbs

Product Highlights

This gearmotor offers reversible rotation and a keyed shaft for reliable operation.

Product Information

Standard Information

• Type: PMDC
• Enclosure: TENV (Totally Enclosed Non-Ventilated)

Technical Specifications

• Voltage: 12 VDC
• Material: Steel
• Horsepower: 1/6 HP
• Rotation: Reversible
• RPM: 94 RPM
• Current: 18.5 Amps
• Output Torque: 135 inch-pounds
• Shaft: 5/8 x 1.25 inch, keyed
• Gear Ratio: 19:1
• Enclosure Rating: IP55
