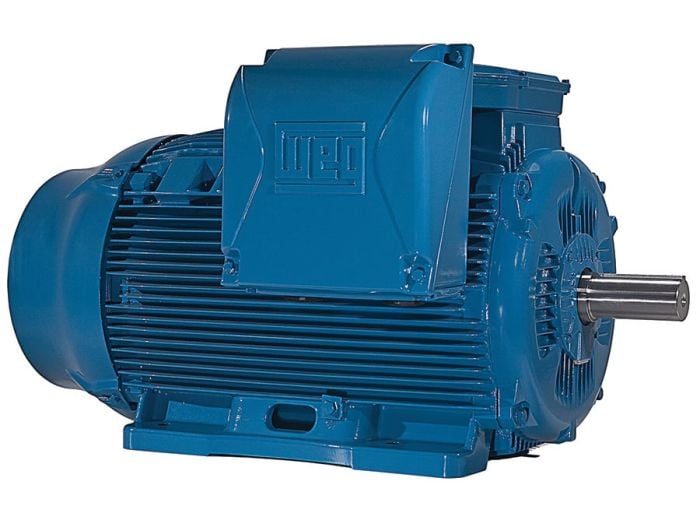

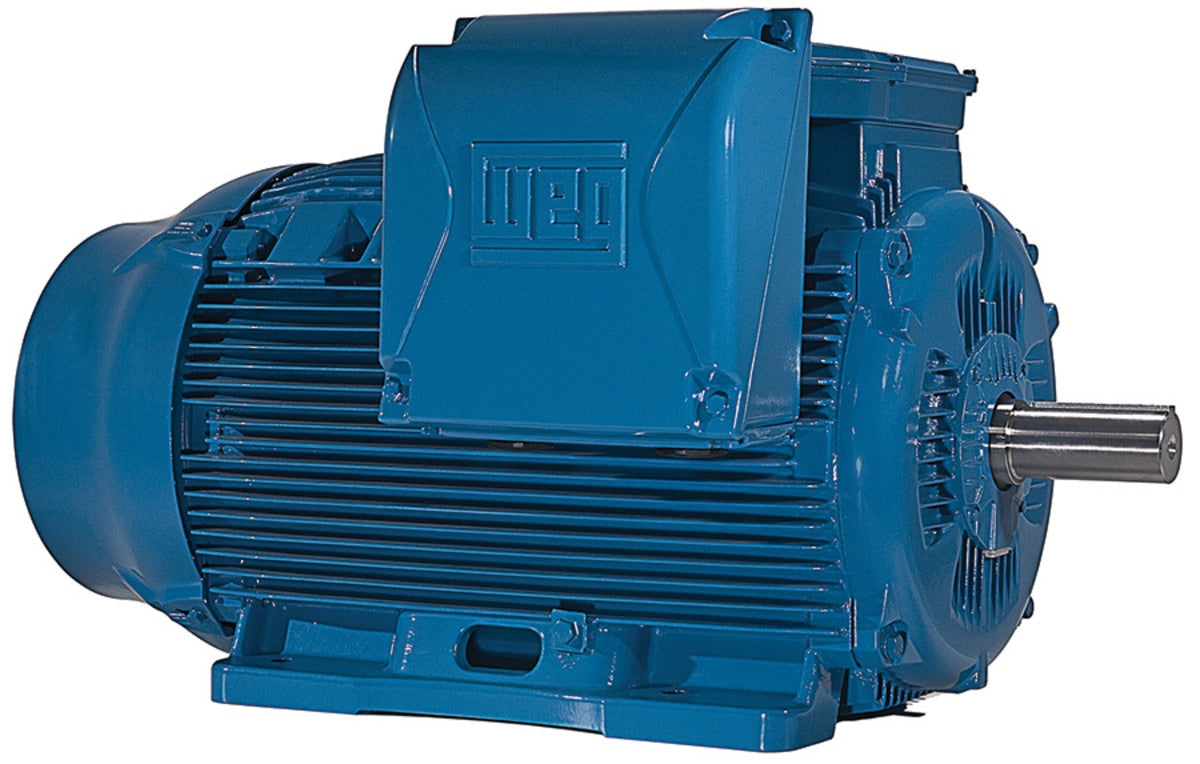

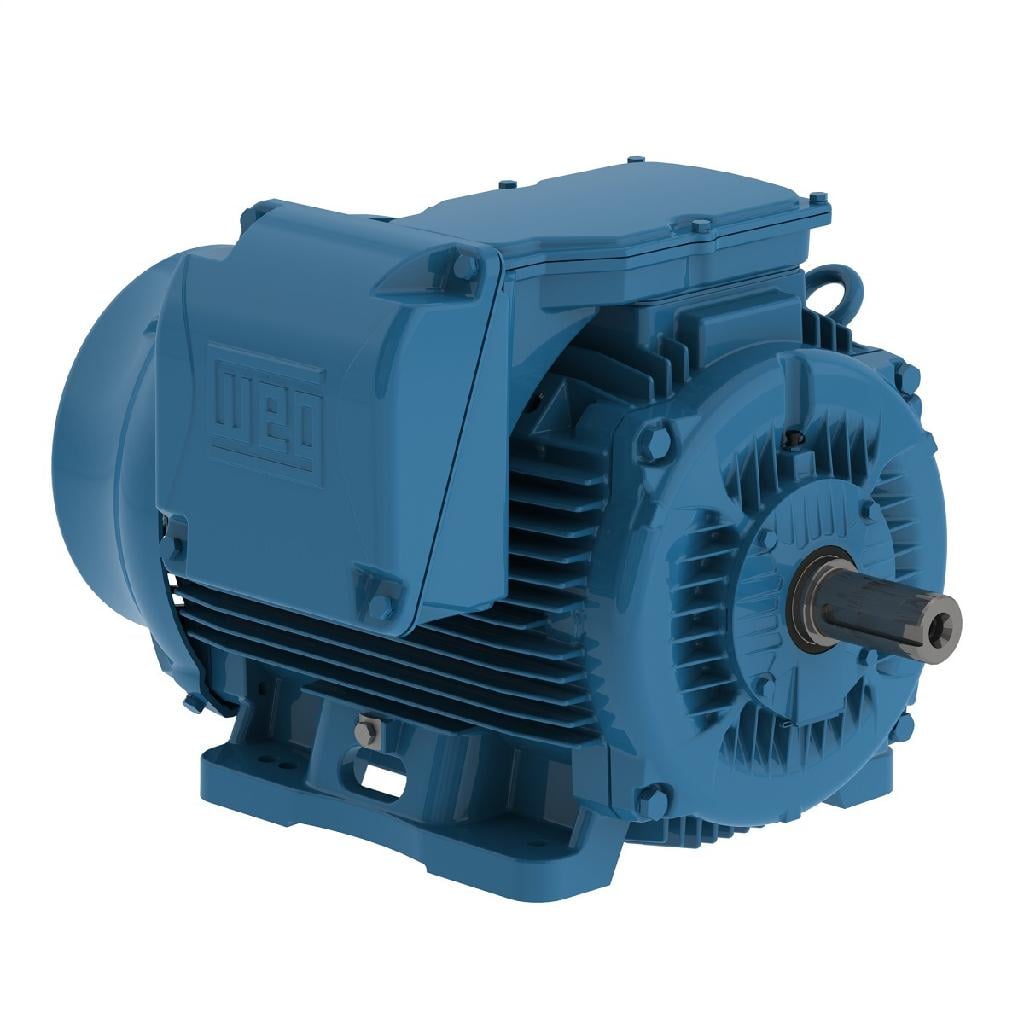

Weg 30012ET3GKD449T-W22 W22 NEMA Premium Efficiency 300 HP 6P 447/9T

Product Description

The WEG 30012ET3GKD449T-W22 is designed to meet the demanding requirements of the rock crushing industry. This Crusher Duty motor comes standard with 4140 high strength shafts and heavy duty roller bearings. This motor complies or exceeds EISA 2016 regulations. The W22 motors are perfectly suitable for a great variety of industrial applications.

• NEMA MG-1 Standard
• 60 Hz Frequency
• 460 V Voltage
• IP55 Degree of Protection

Product Highlights

WEG's Crusher Duty motors are designed for your most demanding crusher applications! Compliment your WEG Crusher Duty motor with our TPH2 Starter to complete your solution!

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: 30012ET3GKD449T-W22
• Country of Origin: Brazil

Technical Specifications

• NEMA MG-1: Standard
• Frequency: 60 Hz
• Voltage: 460 V
• Number of Poles: 6
• Degree of Protection: IP55
• Synchronous Speed: 1200 rpm
• Output Rating: 300 HP
• Mounting: F-1
• Flange: Without
• Terminal box : Left position
• Enclosure: IC411 - TEFC
• HP: 300
• RPM: 1200
• Frame: 449T
• Frame Remarks: Footed
• Phase: 3
• Manufacturer: WEG
• Classification: Crusher Duty
• Item Condition: Factory New
• Model: 13500622
• Replaces: 30012EP3GRB449T-W22
• Motor Type: TEFC, Crusher Duty
• All - Specific Ratings: IP55
• Series: Crusher Duty
• All - Voltage: 460/480VAC
• Warranty: 18 Months
• Weight: 3313
• Rated Voltage: 460 V
• Rated Current: 356 A
• Rated Speed: 1190 rpm
• Rated Torque: 1310 ft.lb
• No-Load Current: 170 A
• Starting Method: Direct On Line
• Frame Material: Cast Iron
• Application: General Purpose
• Output KW: 220
• Output RPM: 1189
• Frame Size NEMA: 447/9T
• Mount NEMA: With Base
• Enclosure NEMA: TEFC
• Enclosure IEC: IP55
• Horsepower: 300 hp
• Speed: 1,200 RPM
• AC Voltage: 460 VAC
• Nominal Voltage: 480 VAC
• Totally Enclosed Fan Cooled: Totally Enclosed Fan Cooled
• Foot Mount: Foot Mount
• Current Rating: 356 A
• Composition: Cast Iron
• Net Weight: 3272.276 lbs
• Gross Weight: 3272.276 lbs
• Poles: 06
• Slip: 0.92 %
• Full Voltage - No Cables: 460 V
• LR Amperes: 2741 A
• LRC: 7.7x(Code J)
• Locked Rotor Torque: 270 %
• Breakdown Torque: 300 %
• Insulation Class: F
• Service Factor: 1
• Design: A
• Locked Rotor Time: 18s (cold) 10s (hot)
• Temperature Rise: 80 K
• Duty Cycle: S1
• Maximum Room Temperature: 40 °C
• Minimum Room Temperature: -20 °C
• Altitude: 1000 m
• Cooling Method: TEFC Totally Enclosed Fan Cooled
• Rotation Direction: Both
• Noise Level: 70.0 dB(A)
• Enclosure Material: Iron
• Front Bearing Shielding: C3
• Front Bearing Size: NU-322
• Front Bearing Type: Roller
• Front Sealing Type: W Seal
• Rear Bearing Shielding: C3
• Rear Bearing Size: 6319
• Rear Bearing Type: Ball
• Rear Sealing Type: No Rear Sealing
• Grease Type: Mobil Polyrex EM
• VFD Turndown VT: 1000:1
• VFD Turndown CT: 6:1
