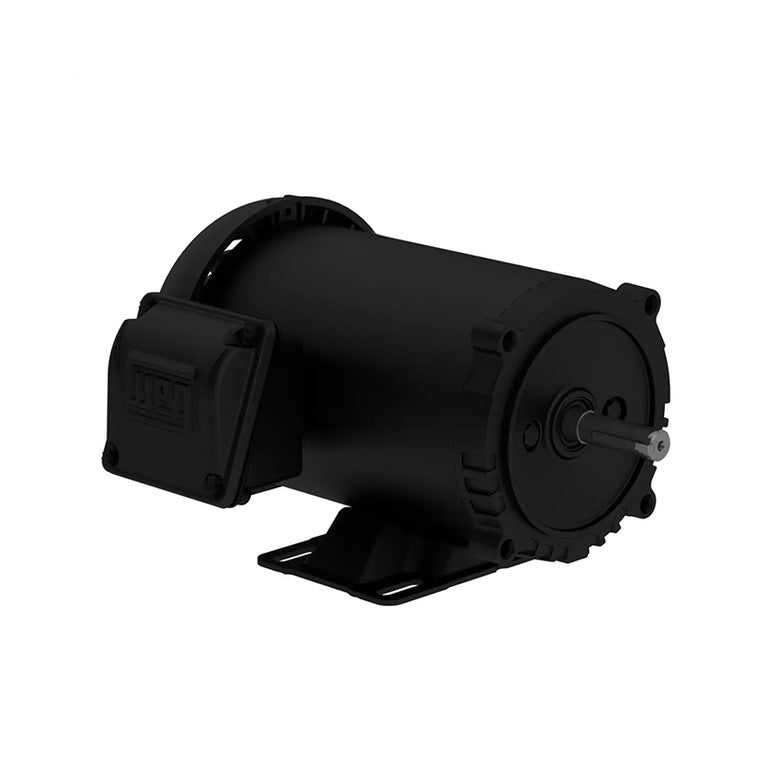

Weg .2536ES3E56C-S AC Motor 1/4HP 56C

Product Description

The WEG .2536ES3E56C-S is a three-phase general purpose rolled steel motor, perfect for applications requiring robustness and high performance. These motors offer good thermal performance and easy installation. The steel plate frame and aluminum endshields provide torque and durability for even the most severe applications. Suitable for VFD operation as per NEMA MG1.

• Suitable for VFD operation as per NEMA MG1
• Variable Torque: 1000:1
• Constant Torque: 2:1

Product Highlights

This WEG motor delivers reliable performance in general-purpose industrial applications such as pumps, fans, and compressors.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: .2536ES3E56C-S

Technical Specifications

• Brand: WEG
• Application: General Purpose
• Output HP: 1/4
• Output KW: 0.19
• Output RPM: 3475
• Frame Size NEMA: 56C
• Mount NEMA: C Face With Base
• Enclosure NEMA: TEFC
• Enclosure IEC: IP55
• Voltage: 208-230/460//190-220/380-415
• Full Load Amp (FLA): 0.5
• Hz: 60
• Motor Enclosure Type: TEFC - Totally Enclosed Fan Cooled
• Motor Frame Size: 56C
• Phase: 3
• Product Notes: Rolled Steel Frame - Cannot be modified with T Box on opposite side
• Quick Specs: 1/4HP 3600 3 60 208-230/460
• Service Factor: 1.15
• Speed (RPM): 3600
• Motor Phase: 3 ph
• Motor Horsepower: 1/4 hp
• Synchronous Rpm: 3600 rpm
• Motor Supply Voltage: 208-230/460 V
• Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
• Frequency Rating: 60 Hz
• Duty Condition Type: Continuous Duty
• Mounting Type: C-Face / Footless
• Full Load Current: 0.46 A
• Full Load Efficiency: 57.50 %
• Volts @ Frequency: 208 V @ 60 Hz; 230 V @ 60 Hz; 460 V @ 60 Hz
• Description Keyword: 1/4 hp
• Overall Length C Dimension: 11.14 in
• Frame Material: Rolled Steel
• Insulation Class: F
• IP Rating: 55
• Standards Met: UL, CSA, CE
• Harmonization Code: 8501.51.4040
• Motor Category: General Purpose Motor
• Product Type: General Purpose Motors
• Alternate Part Number: 14796867 (Was 12894706)
• Frame: 56C
• Motor Type: TEFC, Rolled Steel
• RPM: 3600
• Series: W01 Rolled Steel
• All - Voltage: 208 to 480VAC
• Model: .2536ES3E56C-S
• Product Condition: New
• Horsepower Rating: 0.25 HP
• Rated Supply Voltage: 208-230/460 V
• Rated Voltage: 208 V, 230 V, 460 V
• Efficiency: 57.5%
• Construction: Rolled Steel
• C Dimension: 11.142
• Rated Input Frequency: 60 Hz
• Motor Full Load Amps: 0.5 A
