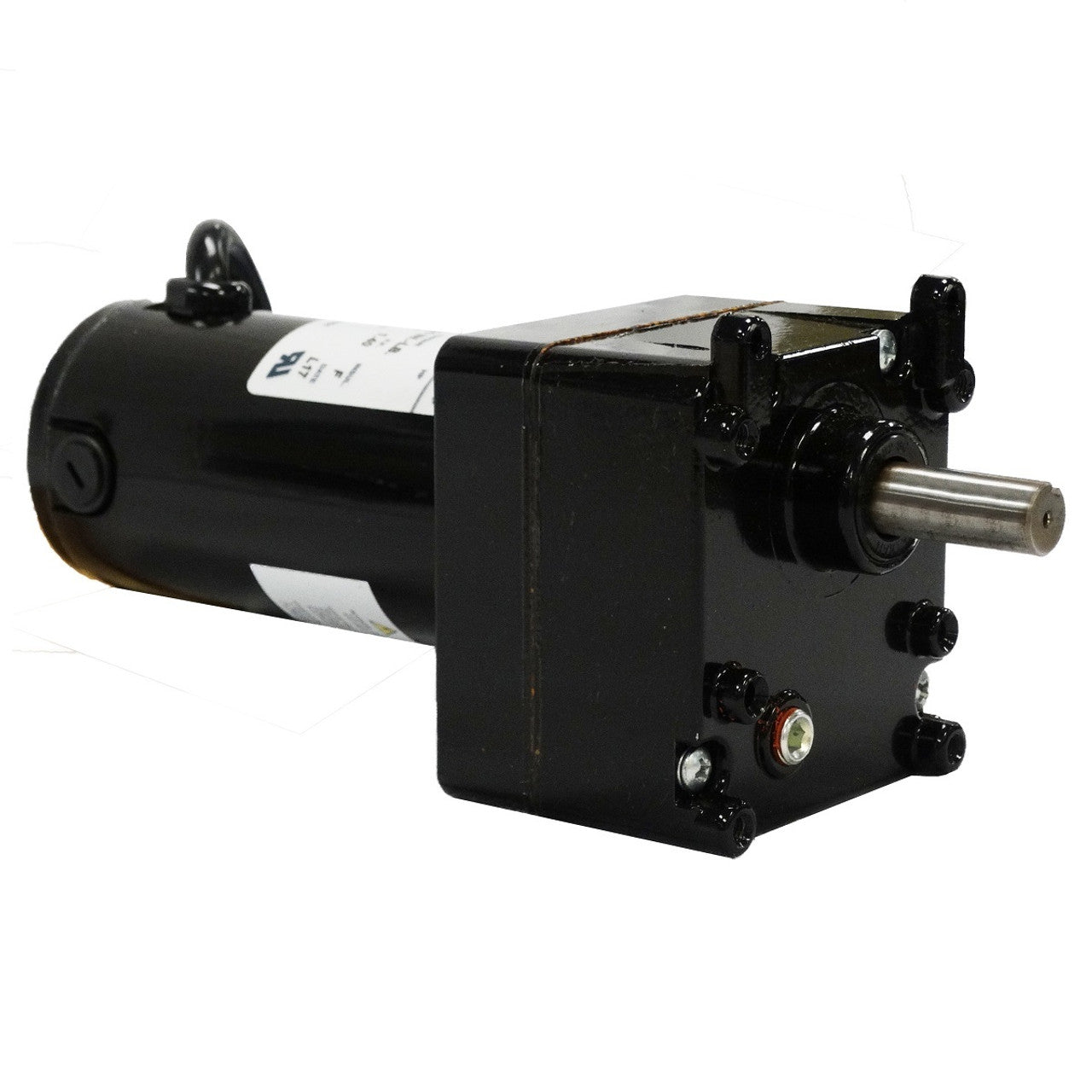

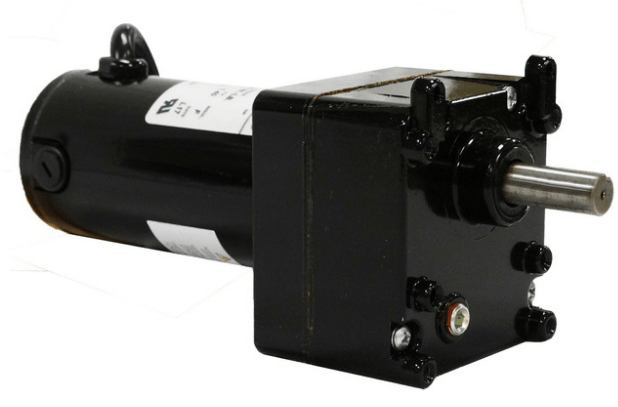

WEG 2423-302 Parallel Shaft Gearmotor

Product Description

The WEG 2423-302 is a parallel shaft gearmotor built for medium torque tasks. It uses a GL100 series gearbox along with a matched RAE motor. Operating on 90VDC, this gearmotor provides 1/17 HP at a speed of 65 RPM. The unit comes with a 1/2 x 1.25 inch keyed shaft and supports reversible rotation. It is designed with a TENV enclosure and has an IP55 rating for protection against dust and water.

• Parallel shaft configuration
• Operates at 90VDC
• Features a 31:1 gear ratio

Product Highlights

This gearmotor is ideal for various applications requiring reliable performance and durability.

Product Information

Standard Information

• Brand: WEG
• MPN: 2423-302

Technical Specifications

• Rated Power: 1/17 HP
• Output Speed: 65 RPM
• Input Voltage: 90VDC
• Full Load Amperage: 0.46 FLA
• Output Torque: 30 Inch pounds
• Shaft Dimensions: 1/2 x 1.25 inch, keyed
• Gear Ratio: 31:1
• Enclosure Rating: IP55
